E
14
SOFT HARD RED BLUE
MANUAL
POWER INPUT
SELECT NEGA
B/W DETAIL
AUTO
WHITE BALANCE
LOCAL
CONTROL
DISABLED
RS232C
CONTROL
1. To readjust the white balance, complete the following steps:
ቢ Put some white paper on the document table.
ባ Project the white paper to full monitor size by pressing the
ZOOM buttons (WIDE button or TELE button).
ቤ Press the AUTO WHITE BALANCE button.
2. To adjust to the desired color tones, adjust manually by using
the WHITE BALANCE knob. Turning the knob towards the RED
side increases the red tones. Turning the knob to the BLUE
side increases the blue tones.
Readjust the white balance after changing the illumination, or when the color tone seems unnatural.
Adjustment to a desired color tone can be made manually.
- +
WIDE TELE
NEAR FAR
MANUAL AUTO
-
EXPOSURE FOCUS ZOOM LIGHTS
BACK
LIGHT
Adjust projected image to full monitor size
using the WIDE and TELE buttons.
Press the NEGA button for conversion.
During the conversion, the NEGA indicator will light.
To return to normal mode, press the NEGA button again.
1
2
• By pushing the NEGA button, you can convert from black to white or vice
versa. Also, if the image is already in color, you can convert from primary
colors to complementary colors.
• Negative/positive conversion is only possible with pictures via the camera head.
MEMO
• When the AUTO WHITE BALANCE button is pressed, the AUTO WHITE
BALANCE indicator flashes, then lights up when adjustment is completed.
However, automatic adjustment may not be done, depending on the types of
objects or light source. If adjustment is unsuccessful, the indicator goes off. If
this happens, readjust according to method 1. mentioned above.
• Do not move the object while the AUTO WHITE BALANCE indicator is
flashing otherwise adjustment will not be done correctly.
• Color tone changes are based on the position of the knob when the AUTO
WHITE BALANCE button is pressed. For example, to emphasize the red
tones, turn the knob towards the BLUE side, press the AUTO WHITE
BALANCE button, then turn the knob towards the RED side.
MEMO

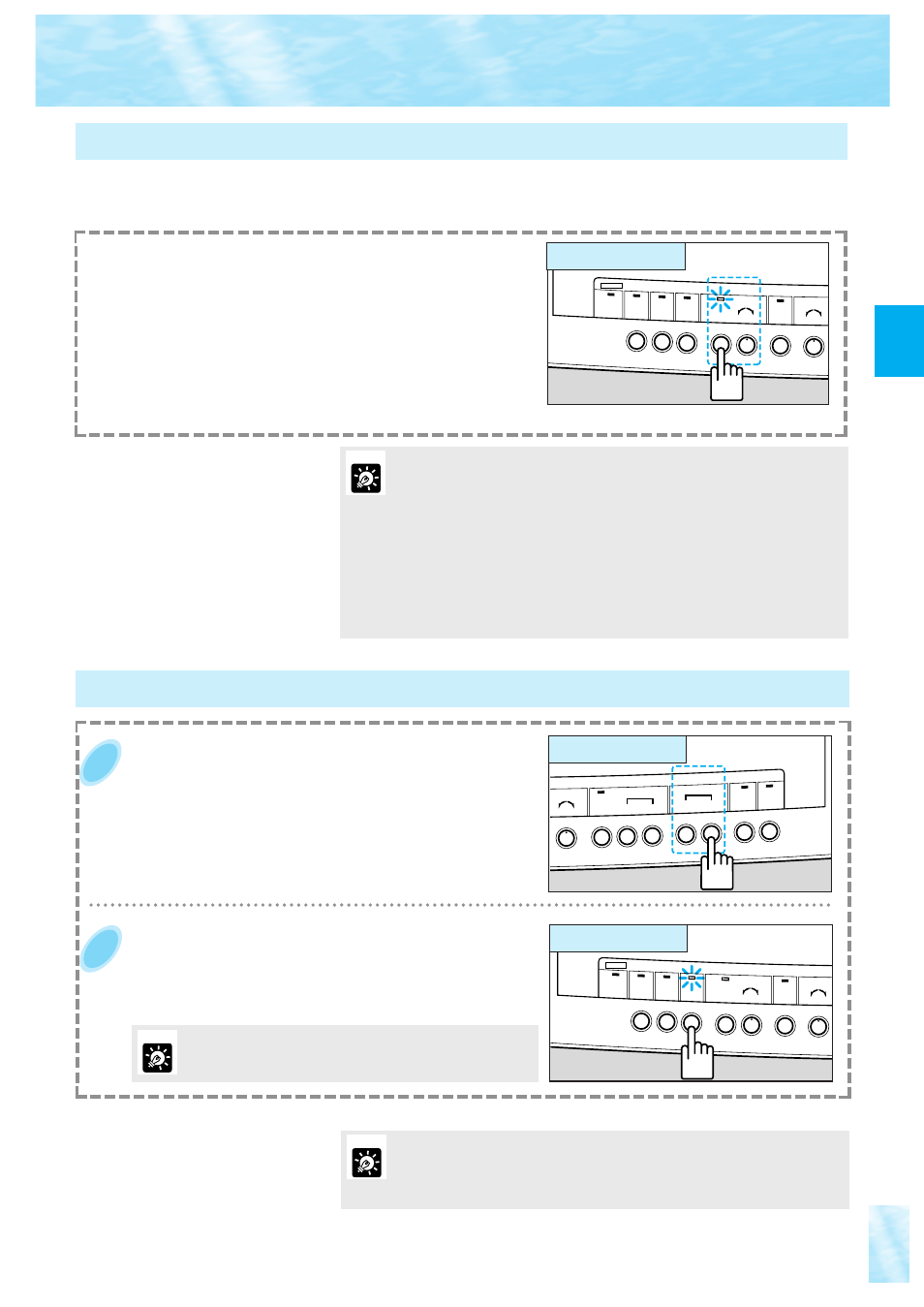

Converting from Negative to Positive
SOFT HARD RED BLUE
MANUAL
POWER INPUT
SELECT B/W DETAIL
AUTO
WHITE BALANCE NEGA
LOCAL
CONTROL
DISABLED
RS232C
CONTROL
If color tones seem unnatural, press the AUTO WHITE
BALANCE button, or adjust the white balance manually. MEMO
Operation panel
Operation panel
Operation panel
Readjusting the White Balance
