11. At the accumulator, remove the existing fitting from between the hoses and accumulator
(Figure 33). Insert the 6FJXL 6MJT tee (F09) in its place.
12. Connect the 8FJ 6MJ adapter (F08) and the 8MB 8MJ orifice (F07) between the tee (F09)
and the accumulator.

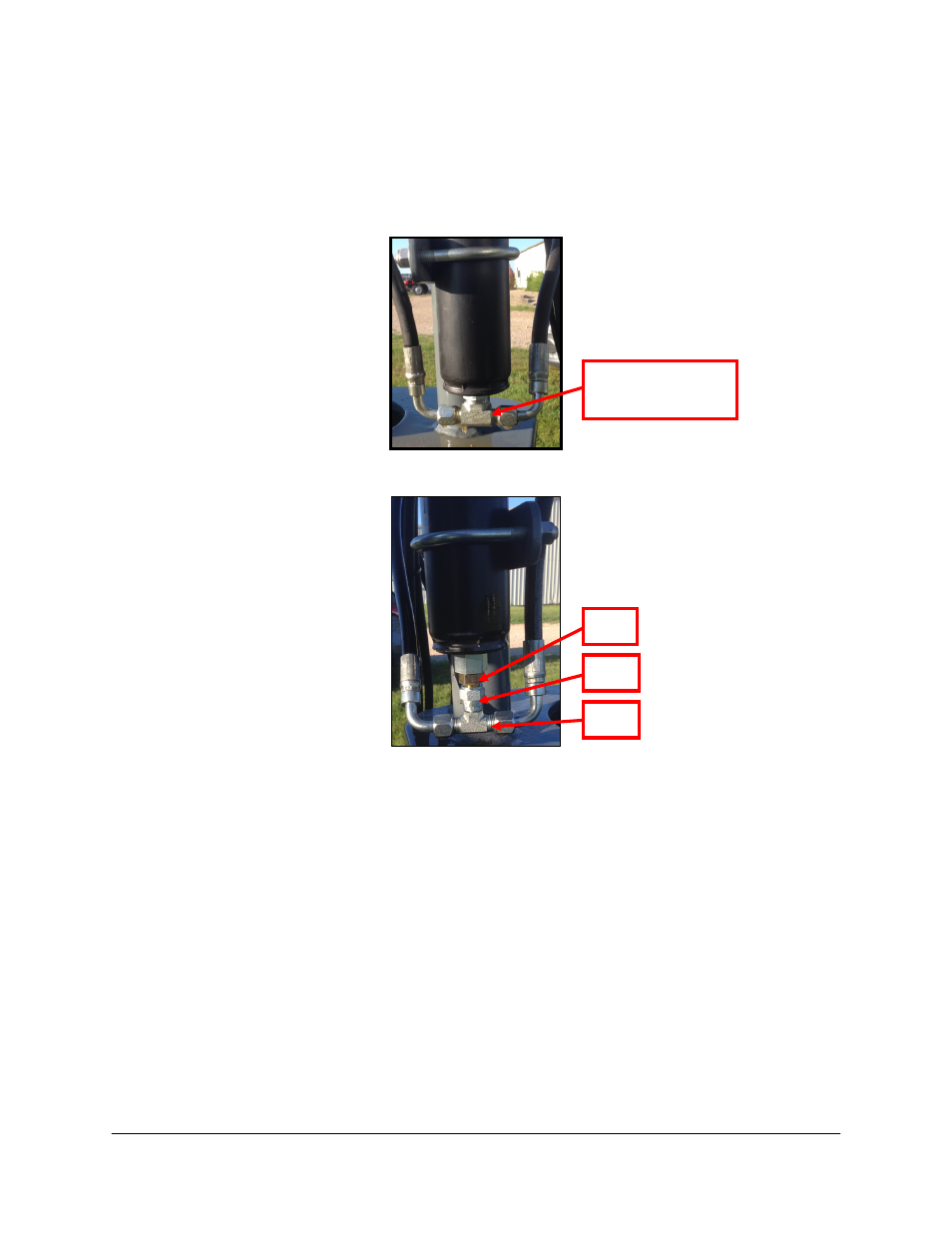

Figure 33: Existing Accumulator Fitting
Figure 34: New Accumulator Fittings
Replace this
fitting with F09.
F07
F08
F09
