13
7 Module Installation
An optional module mounting bracket kit is available for purchase from NORAC. The
mounting brackets are compatible with control modules and input modules. One kit is needed
per module.
Item Part Number Name Quantity
B20 43708 UC5 MOUNTING BRACKET KIT (CONTROL AND INPUT MODULES) 1
7.1 Control Module
1. Refer to Figure 1 and Figure 9.
2. Securely mount the control module (E01) near the hitch of the sprayer, near the display
terminal connections, using screws, cable ties or optional brackets.
3. Connect the display terminal to the control module using the existing display CANbus
cable. This cable must be connected to the end of the control module with only one
Deutsch connector.
4. Connect the power cable (C30) to one of the two CANbus connectors on the control
module. Connect the other end of the power cable to an appropriate power source.
5. Route cable C01 from the other CANbus connector towards the rear of the sprayer.

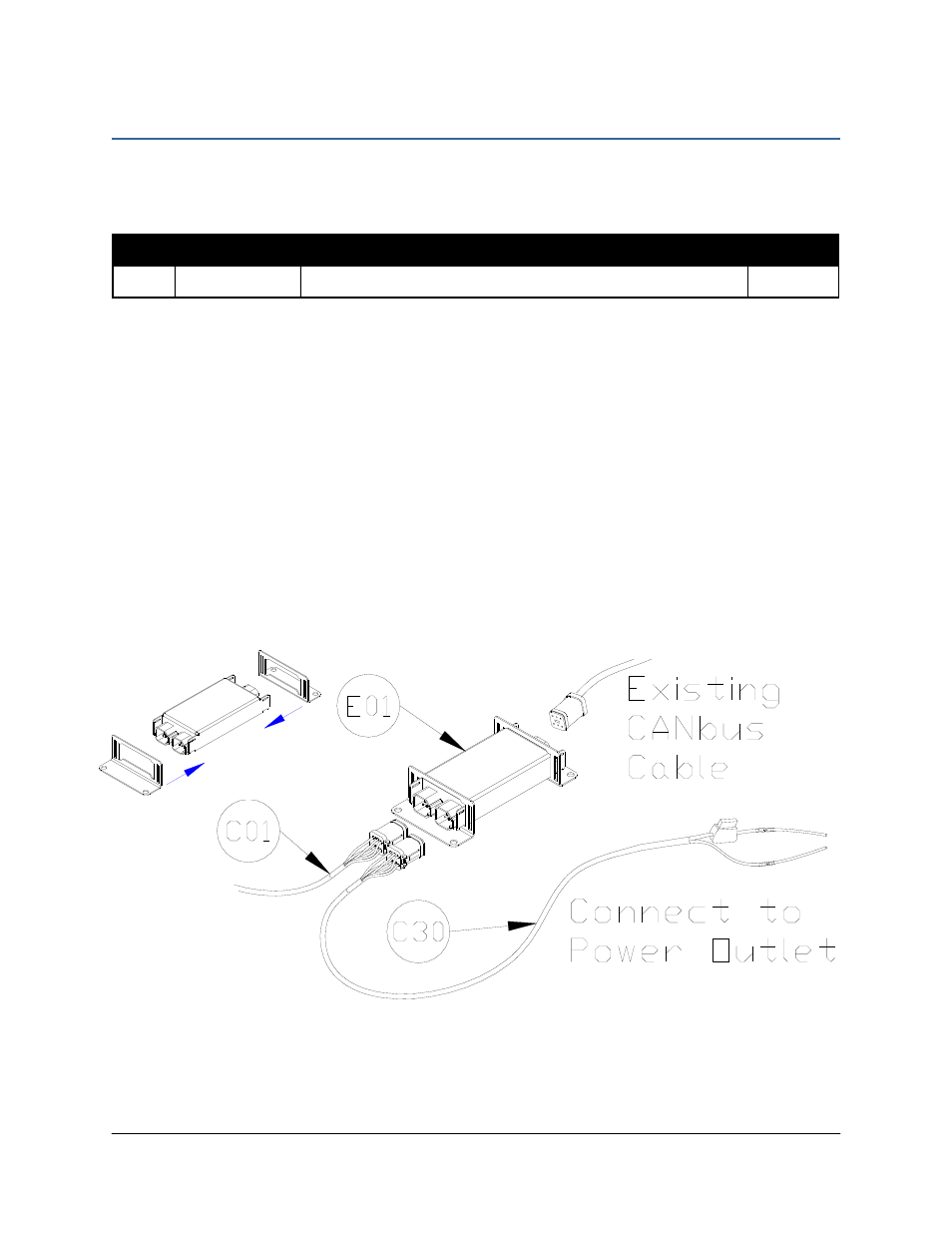

Figure 9: Control Module Mounting
