14
6.4 Wing Sensor Installation
1. The sensor bracket should be oriented forward (ahead of the boom).
2. Typically the best mounting location for the outer wing sensor brackets will be near the end
of the boom tips, approximately two feet (60cm) from the end.
3. Mount the inner wing sensors approximately half-way between the chassis and the outer
wing sensors. Insert the spacers (B12) between the sensor bracket and the boom when
mounting the inner wing sensor brackets as shown in Figure 8. This may not be necessary
depending on the boom type.
4. Mount the ultrasonic sensor into the sensor bracket and run the sensor cable through the
sensor tube.

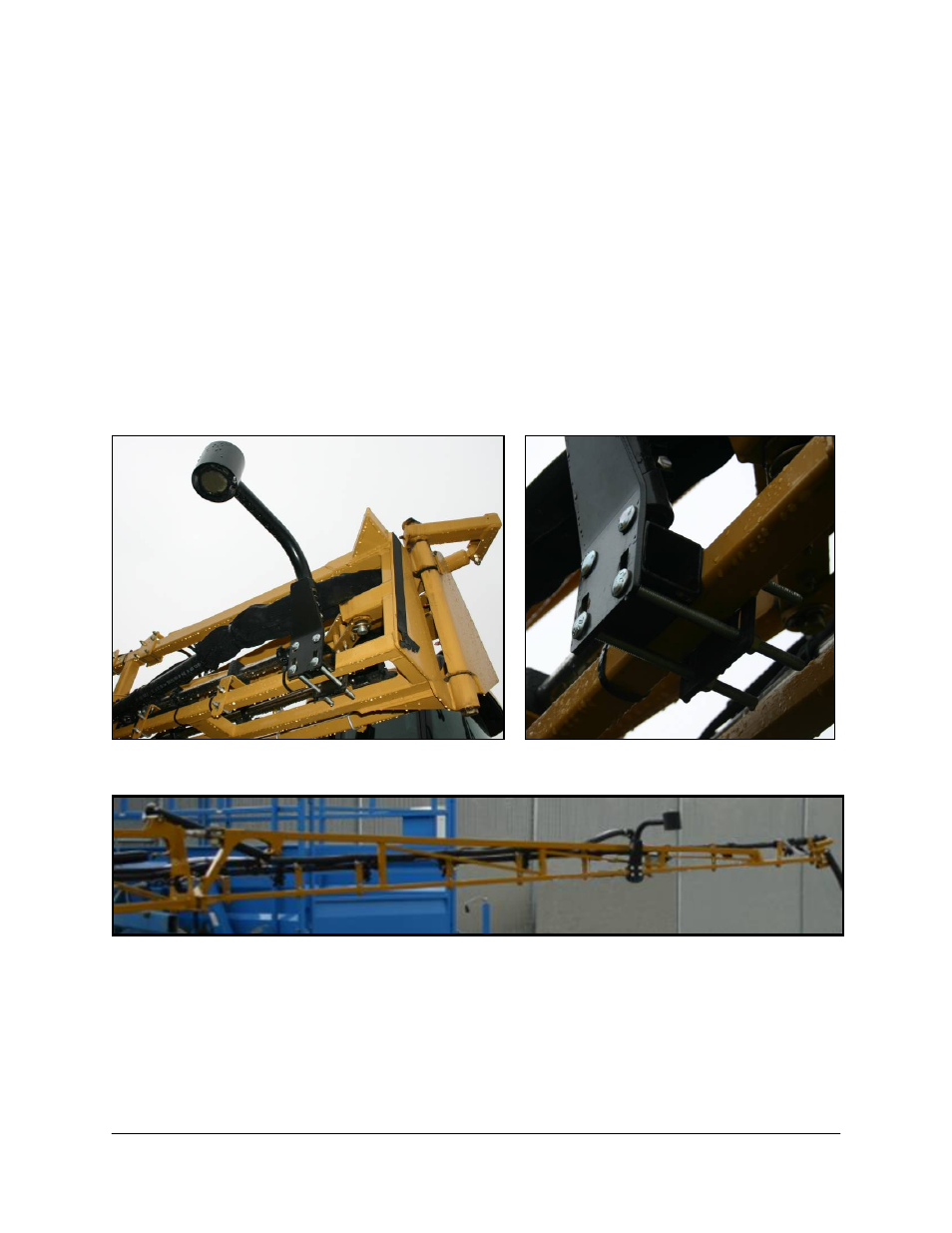

Figure 8: Inner Wing Sensor Bracket with Spacer
Figure 9: Example Mounting of Outer Wing Sensor Bracket
