3 linear damper installation – NORAC UC5-BC-RG11 User Manual
Page 27
24

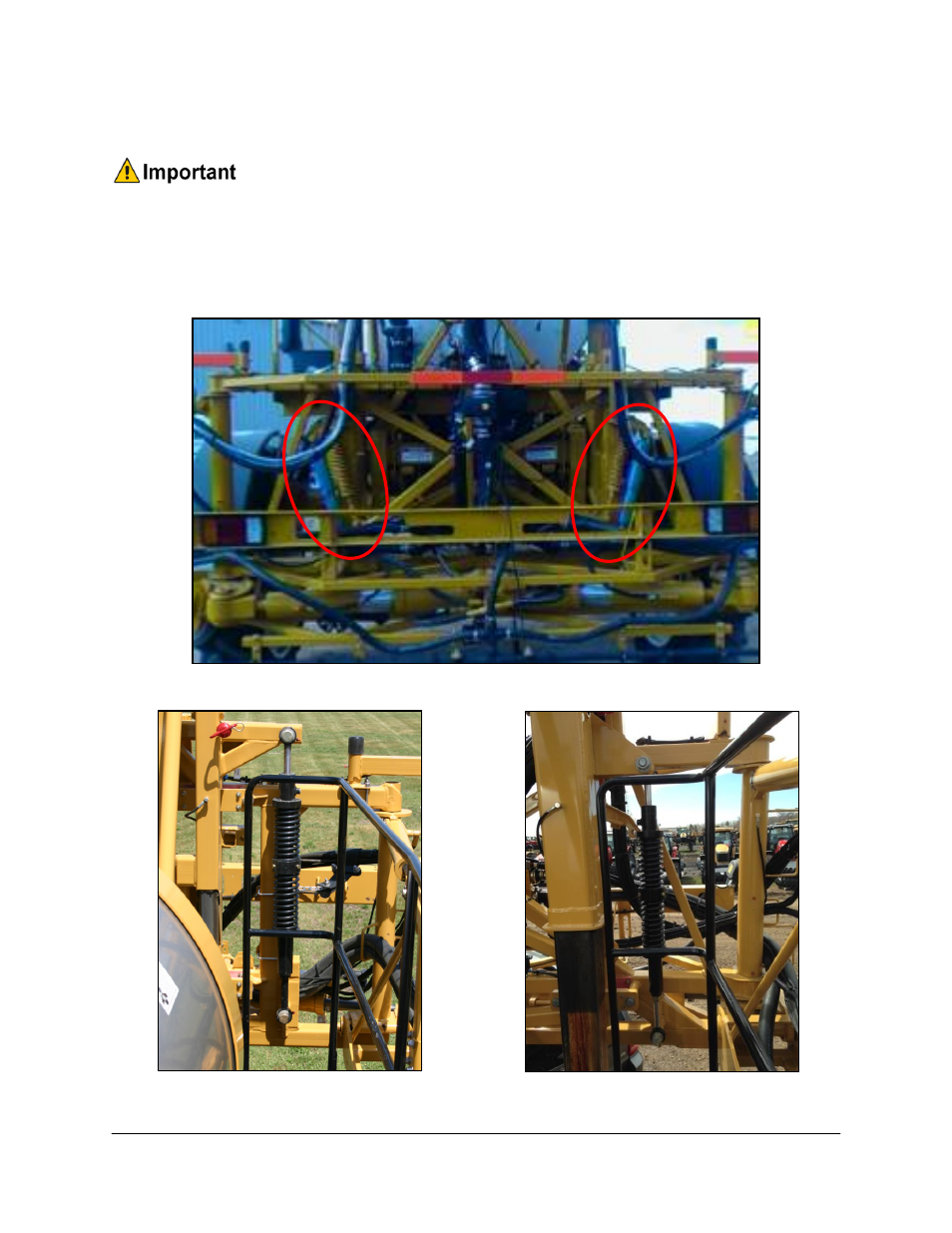

9.3 Linear Damper Installation
Before continuing, tilt both the left and right booms up to the top of their stroke to
make it easier to rotate the boom.
1. Before installing the linear damper, the factory springs and dampers must be removed from
the sprayer. The springs and dampers to be removed are shown in Figure 23.
Figure 23: AGCO Factory Spring and Damper
Figure 24: Linear Damper Mounting Location –
Small Tree with Factory Mounting Brackets
Figure 25: Linear Damper Mounting Location –
Large Tree with Factory Mounting Brackets
