10
4.3.2 Linear Roll Cylinder Assembly
1. In the linear roll cylinder crate is the
linear roll cylinder, boom target, spring
target, and sensor bracket.
2. Install the linear roll cylinder onto the
sprayer with the damper end at the top.

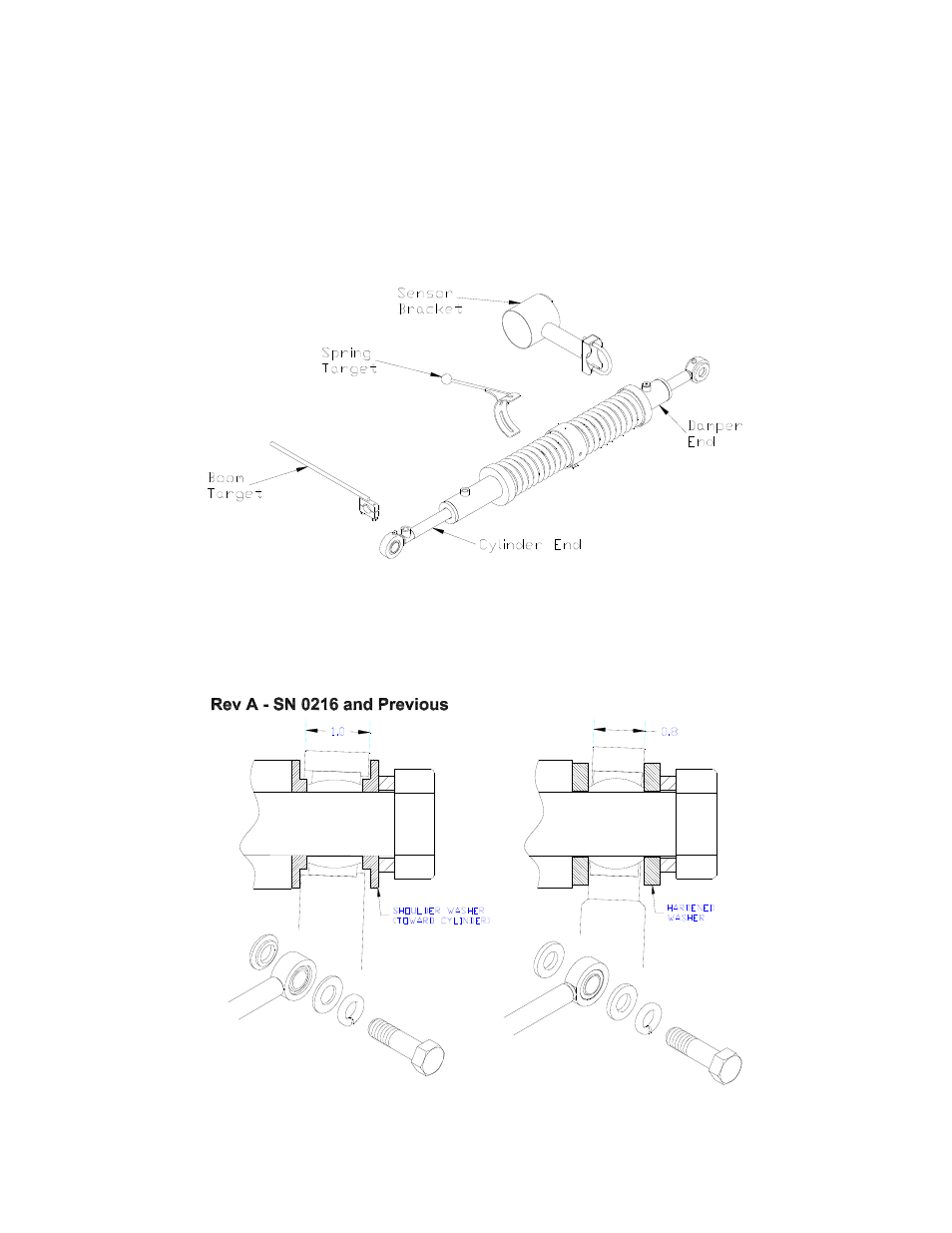

Figure 11: Linear Roll Cylinder Assembly
3. Be sure there are spacers on both sides
of the 1” mounting bolts to allow the
spherical bearings to pivot (Figure 12).
All other Revisions
Figure 12: Linear Roll Cylinder Mounting
