4.2 R
OLL
S
ENSOR
I
NSTALLATION
For this installation, the roll
sensor is only being used for
temperature compensation.
1. Mount the roll sensor to the provided
roll sensor bracket.

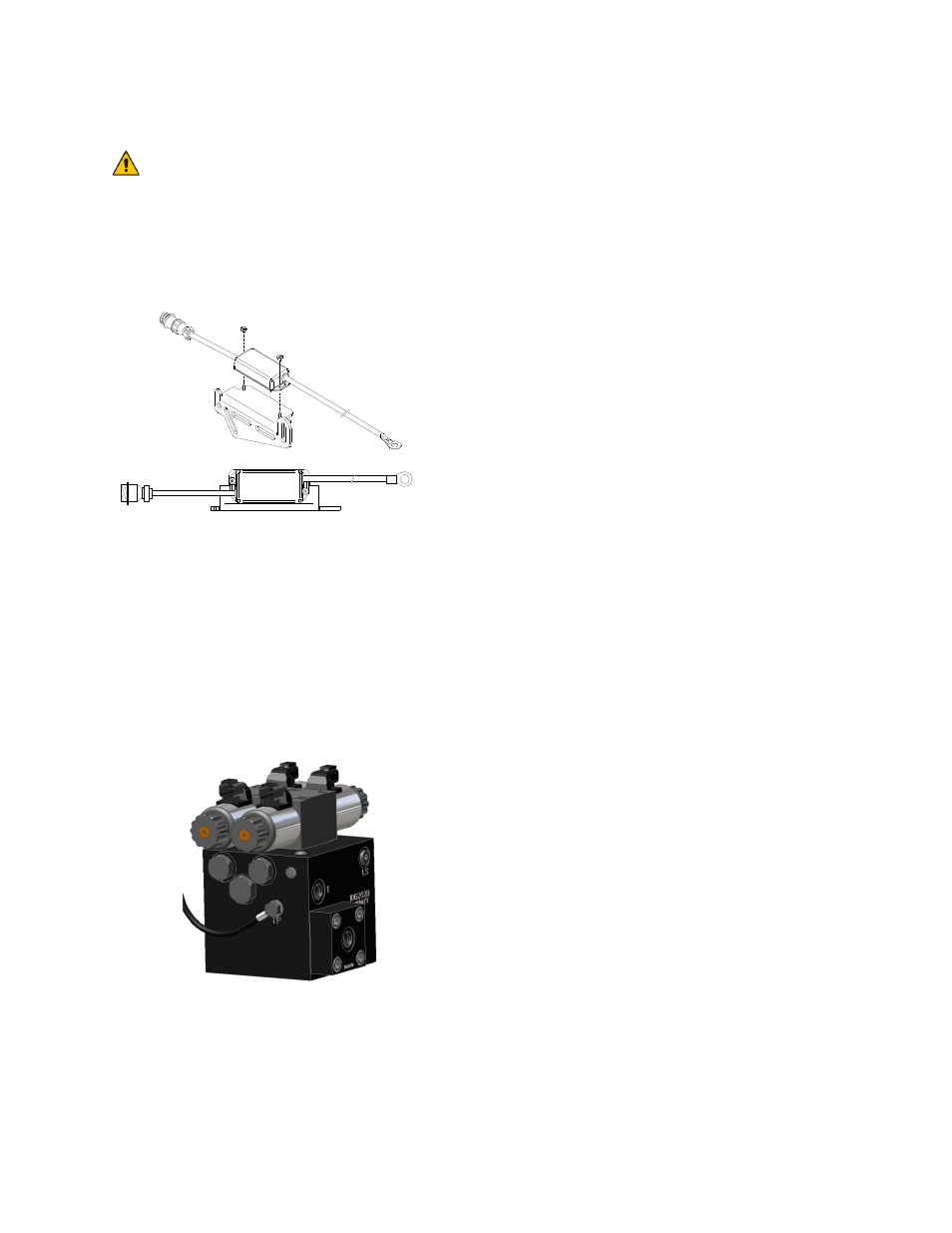

Figure 7: Mounting the Roll Sensor to
the Roll Sensor Mounting Bracket
2. Attach the roll sensor and roll sensor
bracket to the boom, near the NORAC
valve block using the provided cable ties.
3. Attach the temperature probe on the
roll sensor to the side of the NORAC
valve block, using the provided 3/8” bolt.
Figure 8: UC4+ Valve Block with
Temperature Probe Installed
