25
connectors of C12 (R2D, R2E, R2F
and R2G) to the matching connectors
of Rogator cable(s), which are
unplugged in STEP 14. For each
connector, the function (e.g. “LEFT
UP”) is labeled on the branch wire of
C12.
16. If there is a bypass/jam valve (SV6),
insert the tee (P2-R2) on C13 between
the bypass/jam valve connection on SV6
(Figure 32).
17. Connect the 6-pin Tower on the valve
cable (C03) onto S6A on C13 (Figure
30).
Alternate cabling is available
from NORAC if the connectors
on C12 (and C13) do not match
your valve block. Refer to Table
3 on page 6.

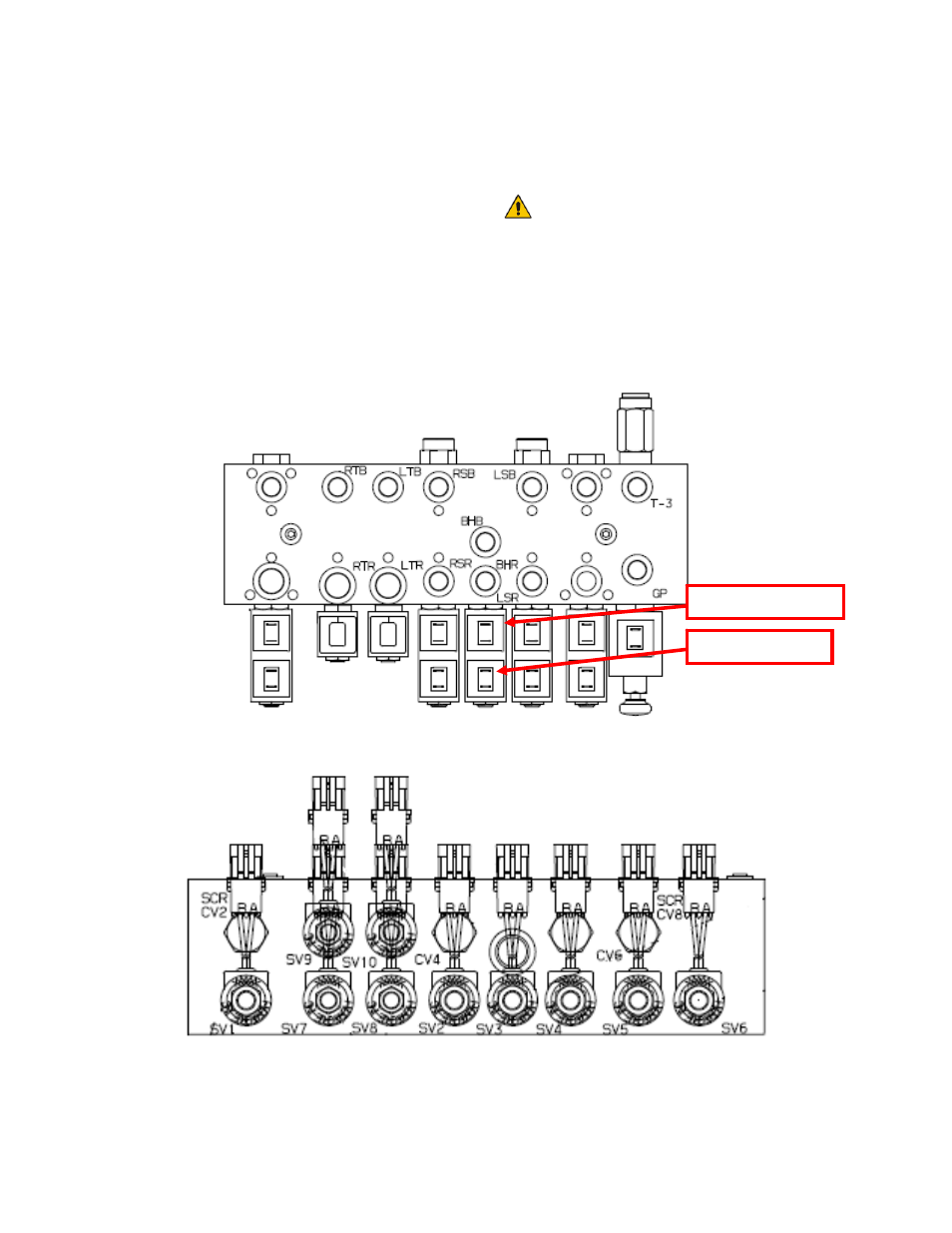

Figure 31: Rogator Valve Block
Figure 32: Solenoid Connections for Rogator Valve Block
Main Down
Main Up
