6. Attach the valve extension cable (C11) to
C10 (Figure 30).
7. Rout the valve extension cable (C11) to the
rear of the sprayer near the sprayer valve
block. Run the cable along the sprayer
frame with the JD harness.

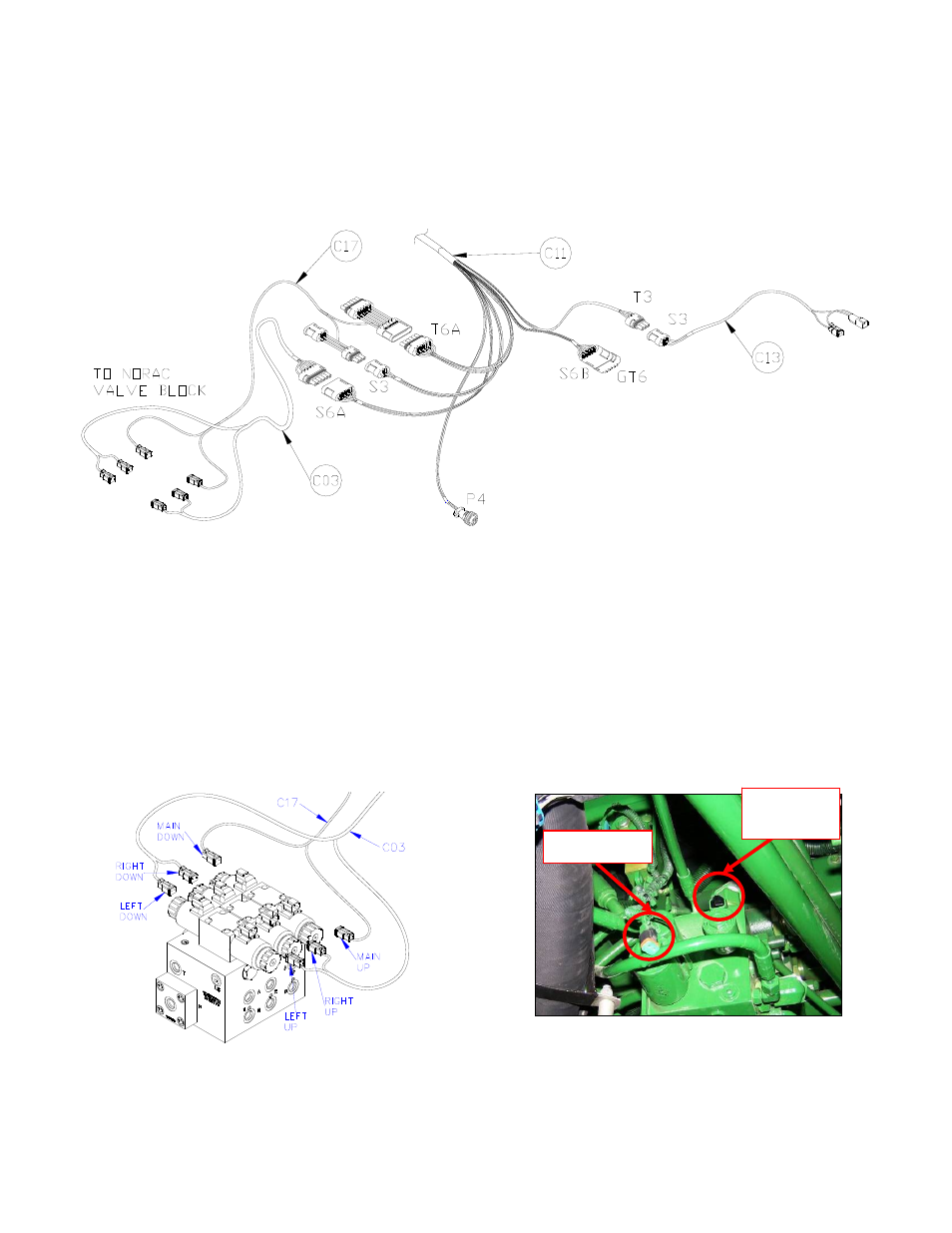

Figure 33: Cable Configurations: C11, C13, C03 and C17
8. Connect the variable rate valve cable (C03)
to the valve extension cable (C11) (Figure
33).
9. Install the 2-pin connectors from C03 onto
each NORAC valve as shown in Figure 34.
The connectors are marked RIGHT UP,
LEFT UP, RIGHT DOWN and LEFT
DOWN. Cables labeled with UP go on the
same side as the hydraulic hoses.
Figure 34: Valve Cable Connections
10. Connect S3 on cable C13 to the valve
extension cable C11.
11. Route the free end of C13 under the
sprayer to the shuttle valve manifold.
Unplug the load sense jam valve connector
(Figure 35) and plug in the tower
connector from C13. Connect the load
sense jam valve connector to the free
connector on C13.
Figure 35: Load Sense Jam Valve
Connector
Connector
Location
Connector
