20

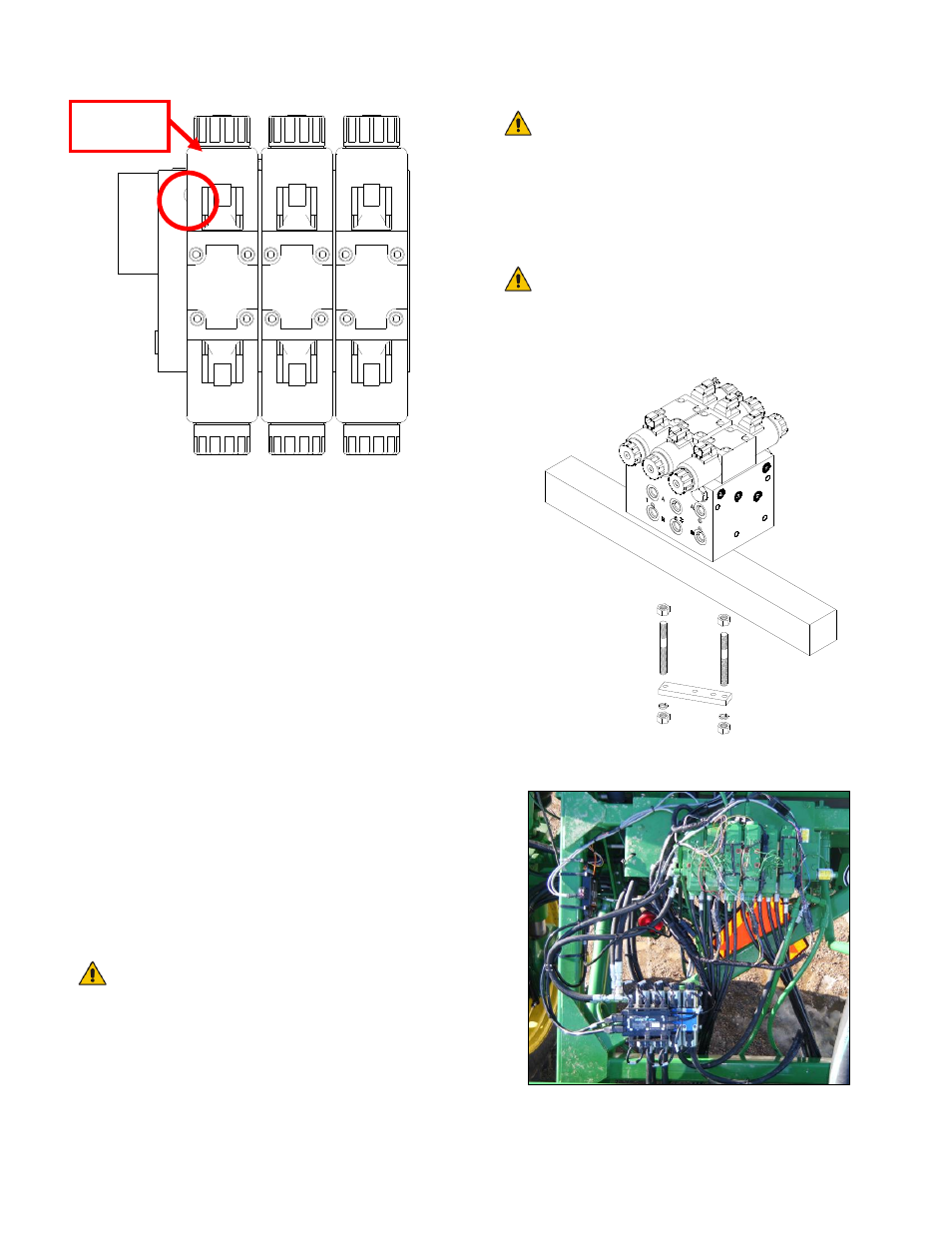

Figure 22: Load Sense Bleed Orifice
Location on Top of Block
4.6.2 Valve Mounting
1. Mount the NORAC valve (V01) on the
sprayer using the valve mounting bracket
(B10).
2. Screw the short side of the threaded rods
into the bottom of the valve block at least
3/8". The valve mounting holes are drilled
and tapped 3/8 NC-1" deep.
3. Tighten the Hex nuts to hold the rods.
4. Put the mounting bracket on the other side
of the tube and tighten with the spring
washers and the Hex nuts.
5. Cut excess off of the rods, if necessary.
If using bolts, the bolts should thread
into the valve block at least 3/8".
The valve mounting holes are drilled
and tapped 3/8 NC-1" deep. The rule
of thumb for bolt length is 1-1/2"
longer than the tube size.
The recommended location for the
valve is on the angled cross tube of
the parallel linkage on the sprayer.
Orient the valve block so the "A" and
"B" ports face towards the boom
(Figure 24).
You must ensure no hydraulic
components will interfere with any
sprayer parts or be pulled tight at
any time.
Figure 23: Valve Mounting Location
Figure 24: Valve Mounting Example
Remove
this coil
