13
4.5 R
OLL
S
ENSOR
I
NSTALLATION
Mount the roll sensors to the included
roll sensor brackets using the machine
screws and nylon lock nuts, as
illustrated in Figure 13.
The roll sensors must be
mounted tightly to the brackets.

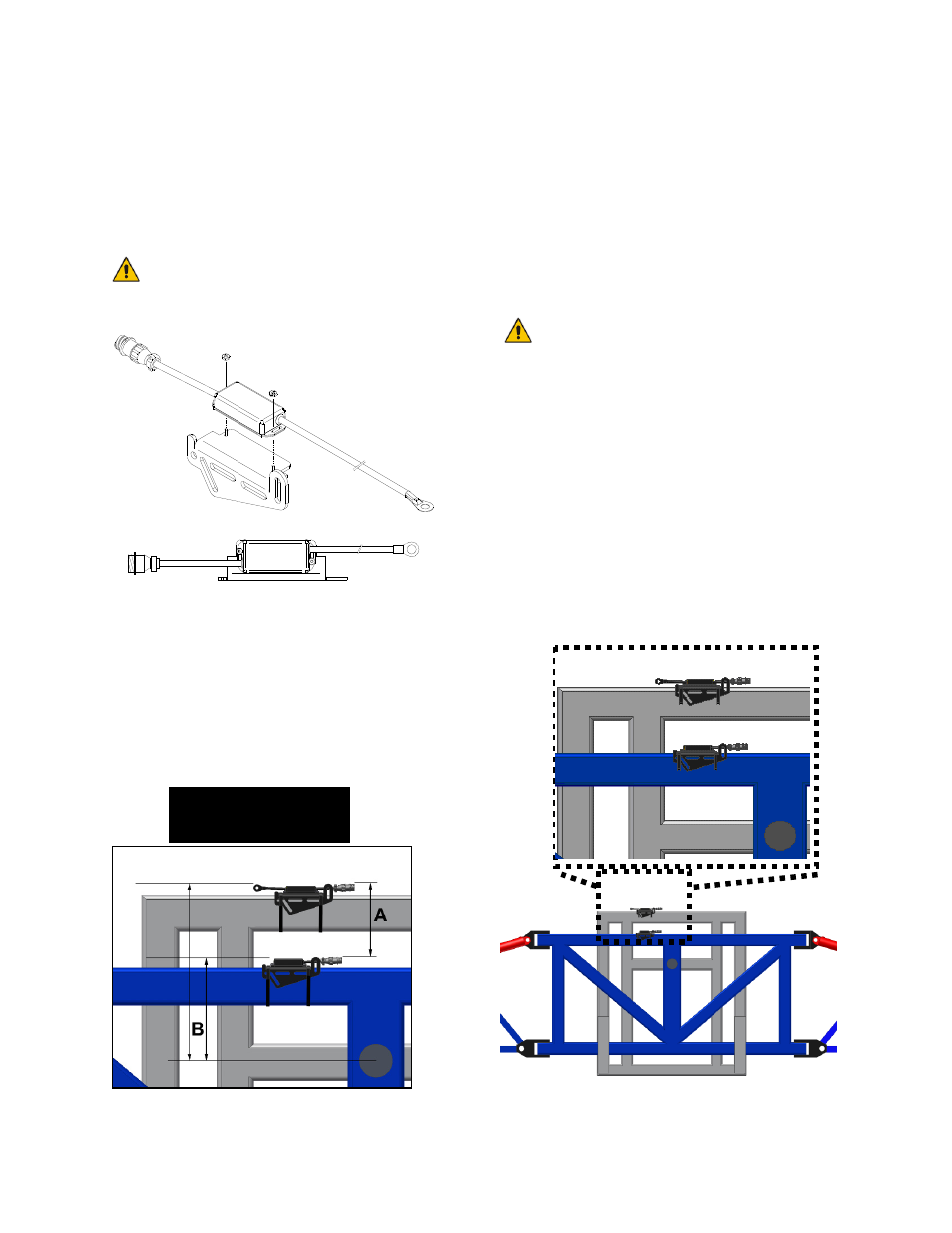

Figure 13: Mounting the Roll Sensor
to the Roll Sensor Mounting Bracket
When mounting the roll sensors use the
following guidelines and refer to Figure
14.
a) The smaller the distance between A
and B in Figure 14, the better the
performance will be.
Distance A cannot be more than
12”.
b) The roll sensors must not be
mounted below the pivot point.
c) Ensure the roll sensors are sitting
relatively level when the sprayer
chassis and boom are level.
d) Both roll sensors must be mounted
with the circular AMP connector
facing towards the Right-Hand Wing
(when looking from the rear of the
sprayer).
Figure 14: Mounting Guidelines for Center Pivot Sprayers
Connectors towards
Right-hand Wing 
