Scribe EC Quick Installation Guide
with Prism PLUS Printer
Document Revision: 2004/12/07
ScribeEC with OptiEC PRO printer
Installation Guide
Document Revision: 2004/12/28
IF YOU PURCHASED A PRINT STATION – SKIP THIS PAGE

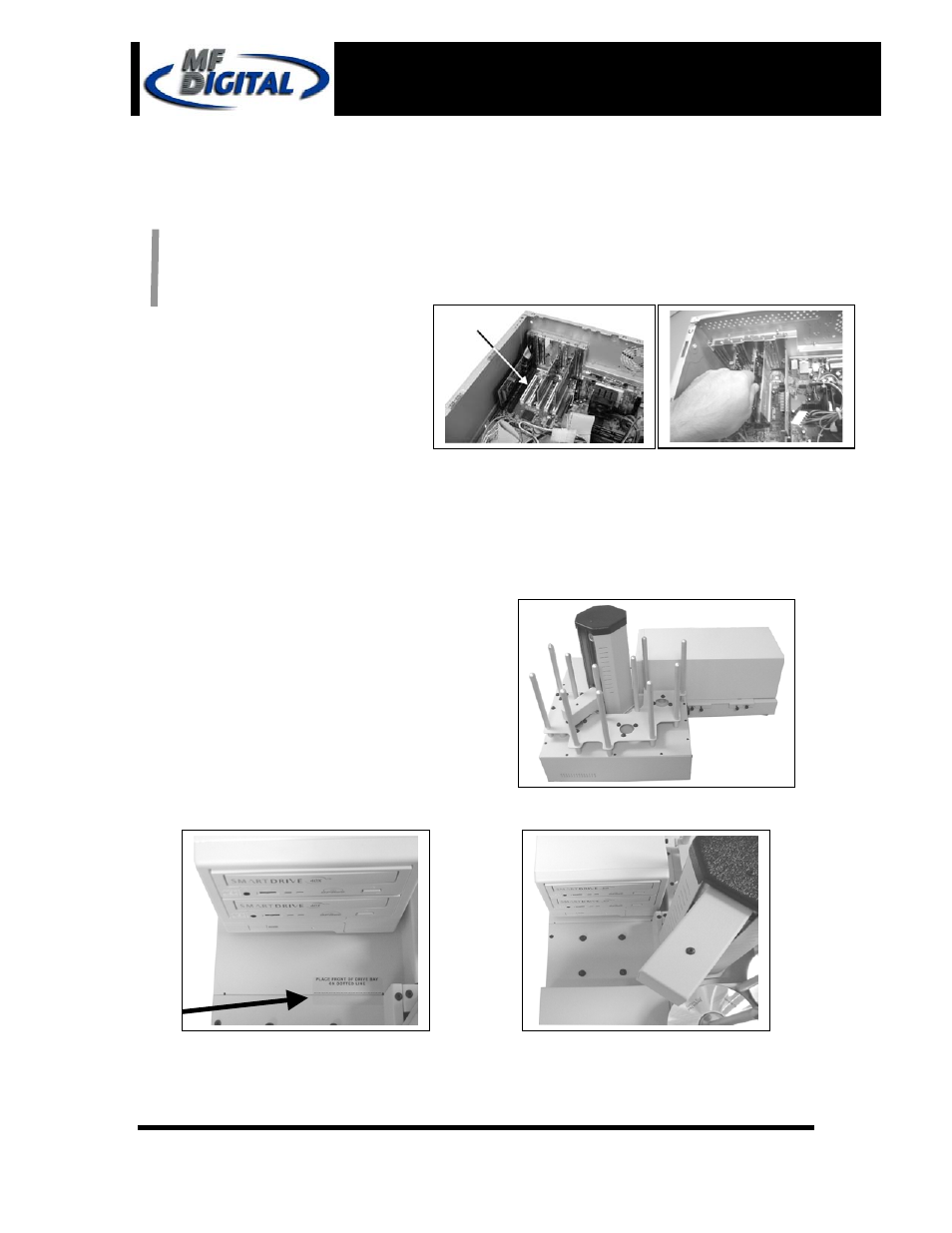

Mounting the Firewire Adapter Card
DVD dive ScribeEC requires only one PCI
firewire B controller card (IEEE-1394B).
For additional information on making the
firewire connection refer to Appendix A.
1. Shut down the PC.
2. Turn the PC’s power off.
3. Unplug the PC.
4. Remove the PC’s cover as
indicated in the PC’s manual.
5. Locate an empty PCI slot, as
seen in (fig.1).
6. Install the firewire adapter card (fig. 2).
Installing the Drive Bay
(fig. 2)
The internal configuration of your computer may be different from the computer picture below
Note:
1. Place the drive bay onto the base unit as seen in
(fig. 1).
2. Position the drive bay so that the front right
corner sits over the dotted line (fig. 2). Proper
position is shown in (fig. 3).
(fig.1)
(fig. 2) (fig. 3)
(fig. 1)
