Scribe EC Quick Installation Guide

with Prism PLUS Printer

Document Revision: 2004/12/07

ScribeEC with Prism PLUS printer

Installation Guide

Document Revision: 2004/12/28

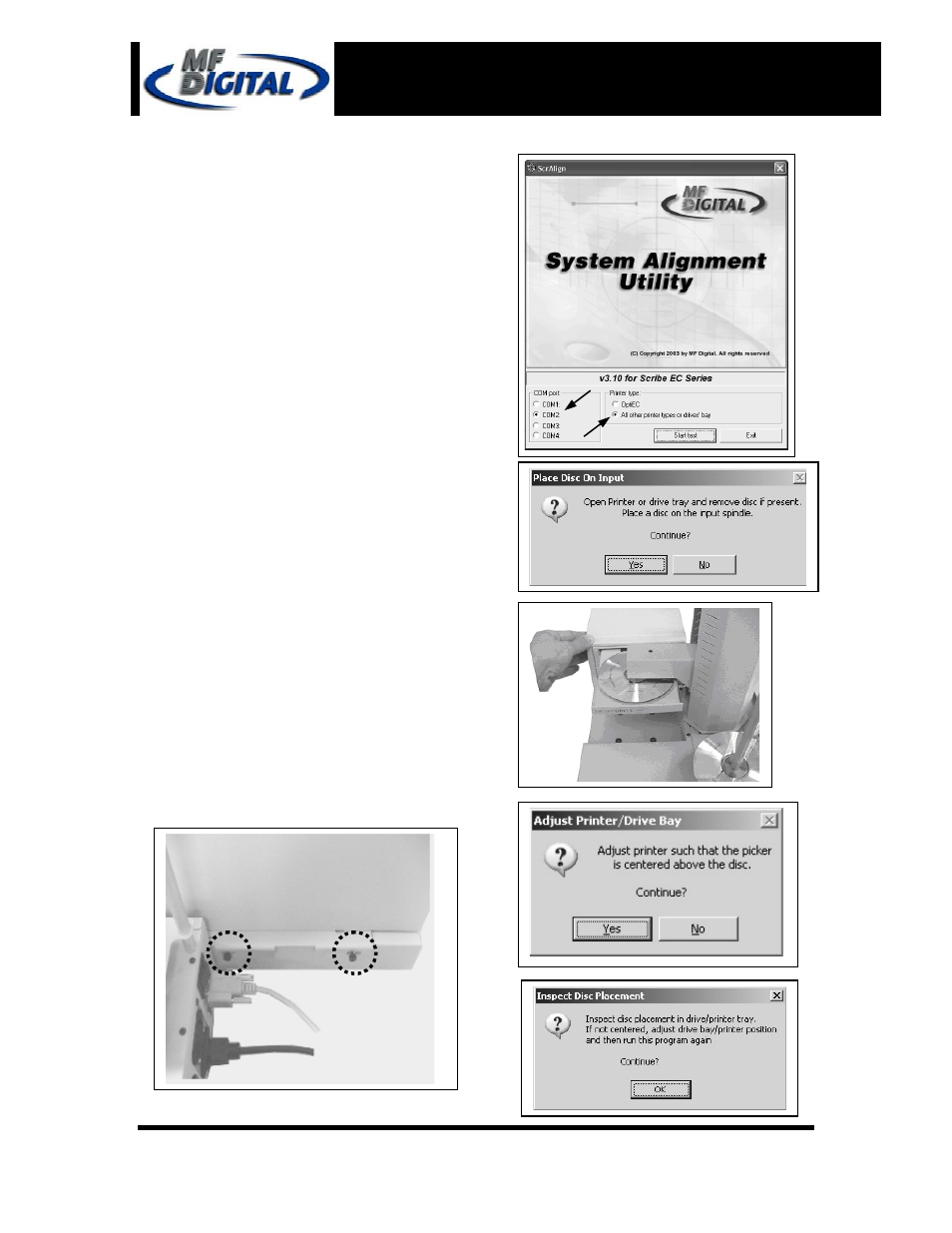

Aligning the Drive Tower

(fig. 3)

(fig. 4)

(fig. 5)

1. From your Start Menu Open the SCRIBE EC

Alignment Utility (fig. 1). It will be located in
the folder designated when you installed the
alignment utility. Choose the appropriate COM
Port that the Scribe EC loader is connected to
then Click Start Test.

2.

Follow the instructions by opening the top
CD/DVD drive tray, and Clicking Yes (fig. 2).
The picker arm will hover a disc over the drive
tray, observe the discs position and make the
appropriate adjustments to the drive tower (fig.
3)
.

3.

Click Yes when you are satisfied with your
adjustment (fig. 4).

4. The picker arm will then place the disc onto

the drive tray. Follow the on screen
instructions and click OK (fig. 5).


5. Once you are satisfied with the drive tower

alignment, tighten the thumbscrews located on
both sides of the drive tower (fig. 6).


(fig. 1)

(fig. 6)

(fig. 3)
