UG_12xxF_030

73S1215F, 73S1217F Windows XP 32 USB CCID and DFU Drivers Installation Guide

Rev. 1.0

7

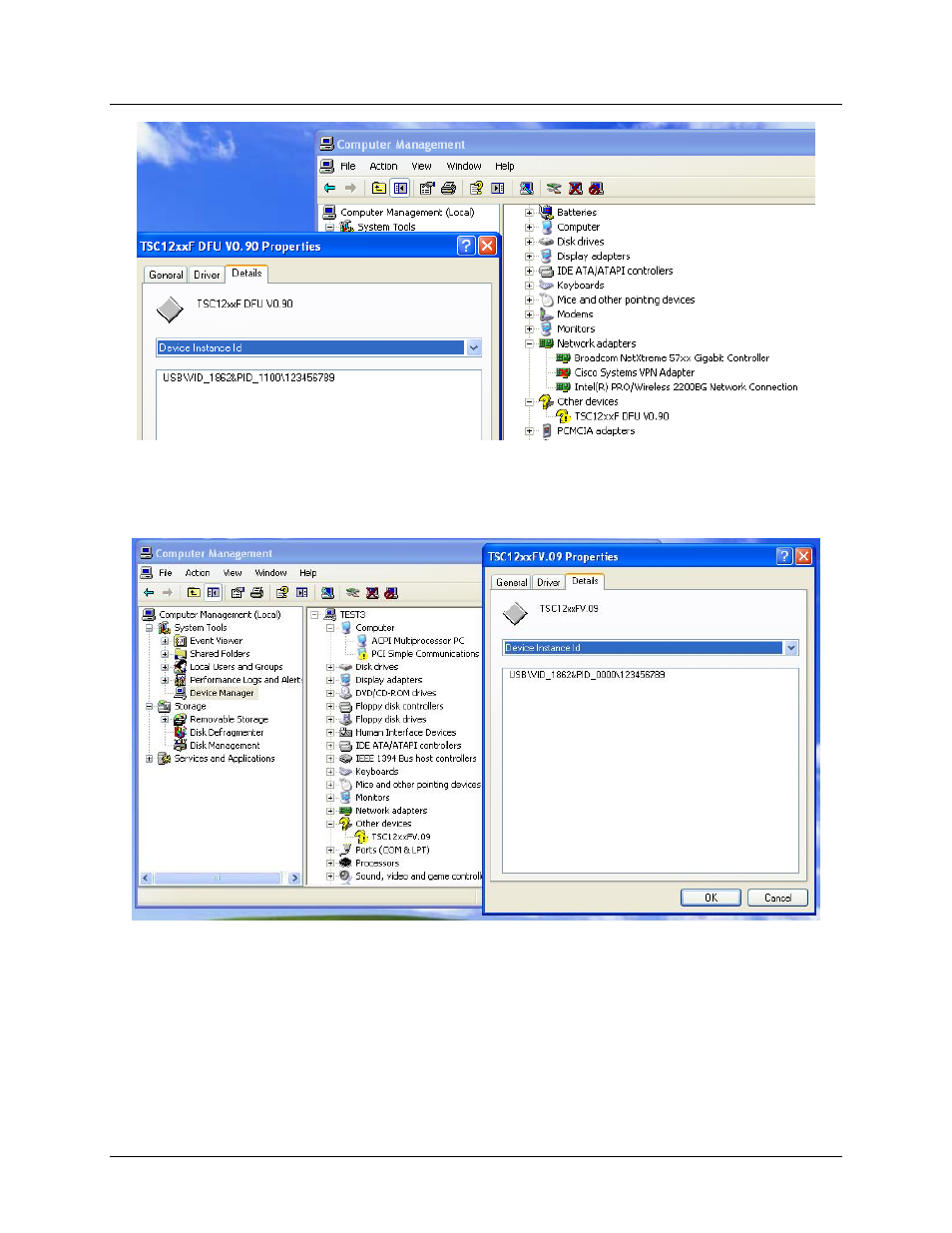

Figure 3: Device Manager (DFU Mode)


For the legacy CCID Mode, the Device Manager shows the TSC12xxFV.09 device under Other Devices.
Driver details, in this case, show: USB\VID_1862&PID_0000\xxxx. See Figure 4.

Figure 4: Device Manager (ccidtsc Device with No DFU)
