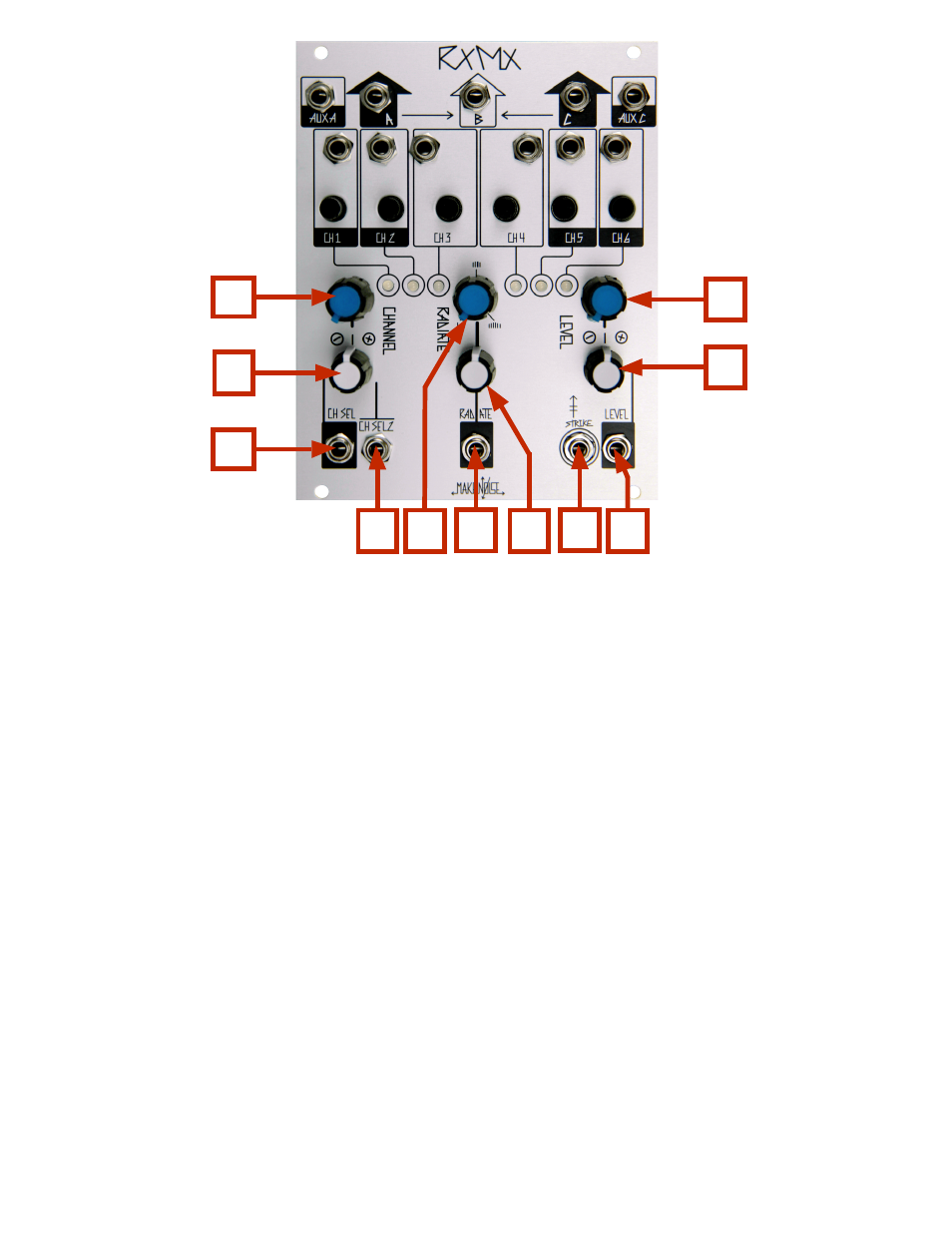

RxMx Panel Controls (cont’d)
9. CHANNEL Panel Control: Uni-polar control for selecting which of the 6 Low Pass Gate circuits is driven
by the Level and Strike parameters. Possible selections are 0 (no channel), 1, 2, 3, 4, 5 and 6.
10. CHannel SELect CV Attenuator 1: Bi-Polar attenuator for CHANNEL Select CV IN 1.
11. CHannel SELect CV IN 1: Control signal input for CHANNEL Selection. Associated with CHANNEL
Select CV Attenuator 1. Range 0V to 5V.
12. CHannel SELect CV IN 2: Control signal input for CHANNEL Selection. No attenuation, unity gain input.
Range 0V to 5V.
13. RADIATE Panel Control: Uni-polar control that turns on channels adjacent to the one set by CHANNEL
parameter.
14. RADIATE CV Attenuator: Uni-Polar attenuator for RADIATE CV IN.
15. RADIATE CV IN: Control signal input for Radiate. RADIATE CV Attenuator. Range 0V to 10V.
16. LEVEL Panel Control: Uni-polar control for driving lowpass-gate circuit selected by CHANNEL
parameter, which determines amplitude and frequency content of signal simultaneously.
17. LEVEL CV Attenuator: Bi-Polar attenuator for LEVEL CV IN.
18. LEVEL CV IN: Control signal input for LEVEL. Associated with LEVEL CV Attenuator. Range 0V to 8V.
19. STRIKE IN: Gate input for striking, pinging or plucking the Lowpass Gate. Expects 8V Gate signal.
9
10
11
12 15 13 14 19 18
17
16
