INSTAllaTIon
The Make Noise RxMx is an electronic signal router requiring 35mA of +12VDC and 30mA
of -12VDC regulated power and a properly formatted distribution receptacle to operate.
It is designed to be used within the euro format modular synthesizer system.
Go to http://www.doepfer.de/a100_man/a100t_e.htm for the details of this format.
To install, find 20 HP of space in your euro-rack synthesizer system, confirm proper

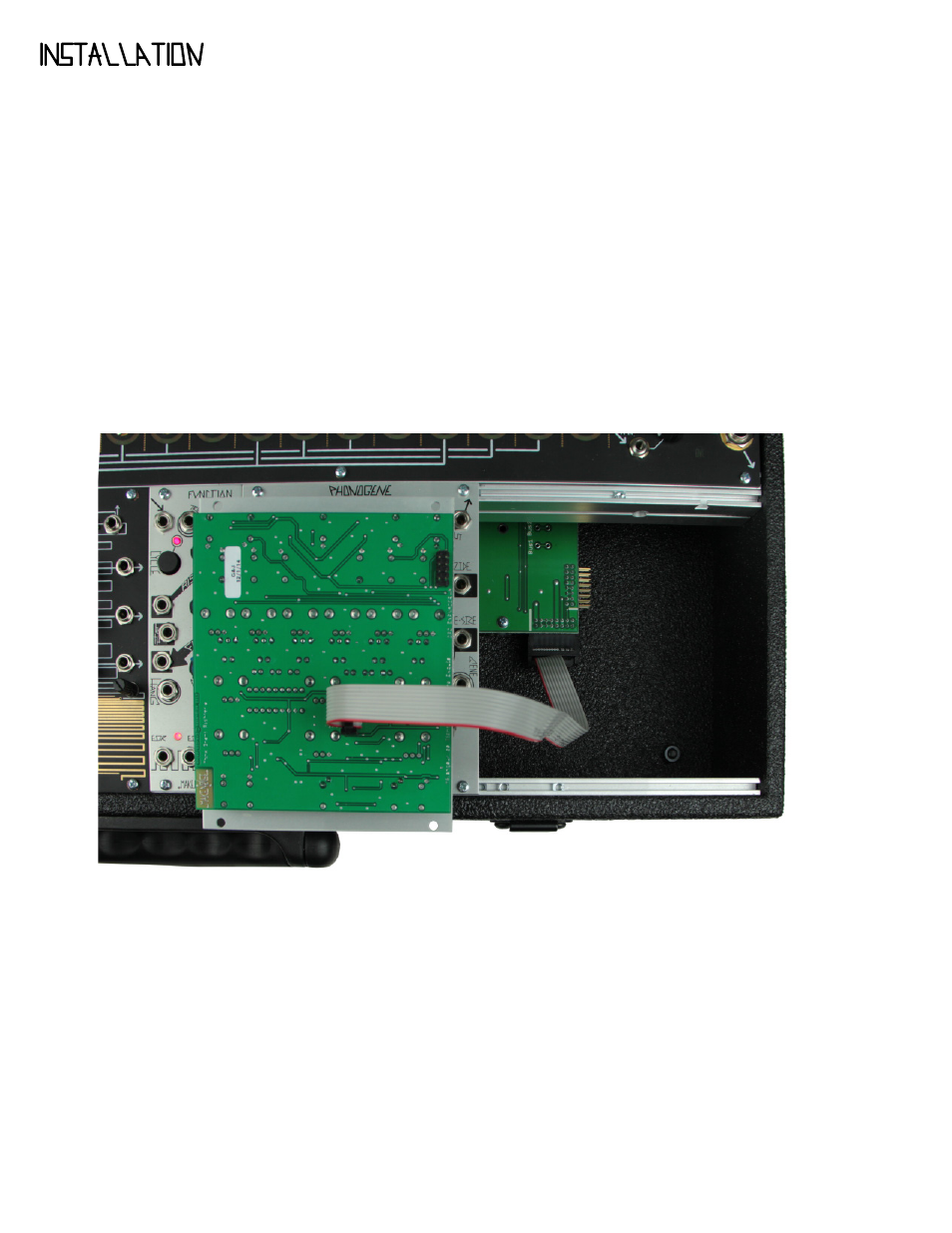

installation of included power cable on backside of module (see picture below), plug the 16
pin end power cable into the euro-rack style power distribution board, minding the polarity
so that the RED stripe on the cable is oriented to the NEGATIVE 12 volt supply line. On the
Make Noise power bus board, the negative 12 volt supply is indicated by the white stripe.
Please refer to your case manufacturers’ specifications for location of the negative supply.
