-4-

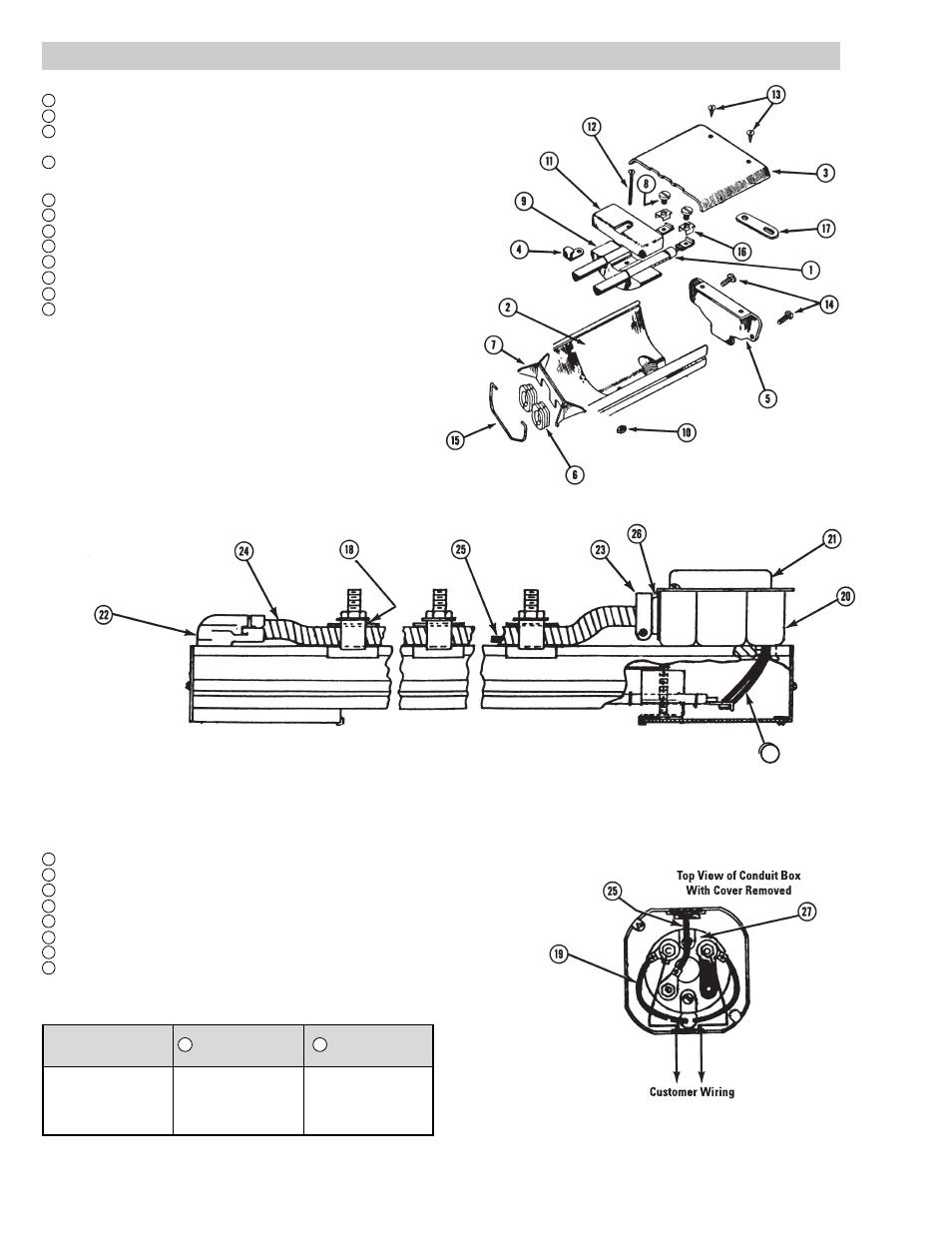

RENEWAL PARTS IDENTIFICATION
PARTS COMMON TO LONGER HEATERS
(RADD-7604X13, RADD-7604X9A, and RADD-7724X38)
Conduit Support Bracket. . . . . . . . . . . . . . . . . . . . . . . . 059-036915-001 (5)
#12 Gauge leadwire, 8”long . . . . . . . . . . . . . . . . . . . . . 175-048142-171 (2)
4” Conduit Box, Octagonal . . . . . . . . . . . . . . . . . . . . . . 025-036918-001
Conduit Box Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 080-013160-004
1/2” 90° Angle Box Connector . . . . . . . . . . . . . . . . . . . 119-075455-002
1/2” Box Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . 119-075454-005
3/4 to 1/2” Reducing Washer . . . . . . . . . . . . . . . . . . . . 328-114681-001
(2)
Wiring Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303-117271-001
(includes terminal block and jumper straps)
Model 1/2” Flexible #10 Gauge
Number Steel Conduit Leadwire
RADD-7604X13 069-024328-011 175-048141-078
RADD-7604X9A 069-024328-010 175-048141-077
RADD-7724X38 069-024328-012 175-048141-079
24 25
18
19
20
21
22
23
26
27
3
4
5
9
10
11
12
13
8
14
16
17
19
PARTS COMMON TO ALL HEATERS
Terminal Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306-014405-001 (2)
Terminal Cover Clip . . . . . . . . . . . . . . . . . . . . . . . . 056-014401-002 (2)
End Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220-014462-001†
220-014462-002
Terminal Screw. . . . . . . . . . . . . . . . . . . . . . . . . . . . 248-046044-002 (4)
MISCELLANEOUS HARDWARE AND PARTS
Terminal Block (Bottom) . . . . . . . . . . . . . . . . . . . . 303-014317-001 (2)
Hexnut #8-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200-049592-029 (2)
Terminal Block (Top) . . . . . . . . . . . . . . . . . . . . . . . 303-014316-001 (2)
Screw #8-32 x 2-1/4” long. . . . . . . . . . . . . . . . . . . 248-075512-390 (2)
Screw #8-32 x 3/8” long . . . . . . . . . . . . . . . . . . . . 248-075519-080 (4)
Screw #8-32 x 3/8” long . . . . . . . . . . . . . . . . . . . . 248-075512-053 (4)
Saddle Clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238-026539-001 (4)
Jumper Strap
(furnished with RADD-7604X10 only) . . . . . . . . 166-075230-030 (2)
HEATER MOUNTING CLAMP ASSEMBLY
See Figures 1, 2, 3, and 4, page 1.
For mounting heater with model numbers up to RADD 7000, use mounting
clamp assembly part no. 168-013071-001. For mounting heaters above
model number RADD 7000, use mounting clamp assembly part no. 168-
013071-002.
† Indicates stamped end plate with voltage, wattage, etc.
NOTE: Part numbers suffixed by a number in ( ) indicates the quantity of the same part
number used.
