MANUAL OPERATION
8
B
C

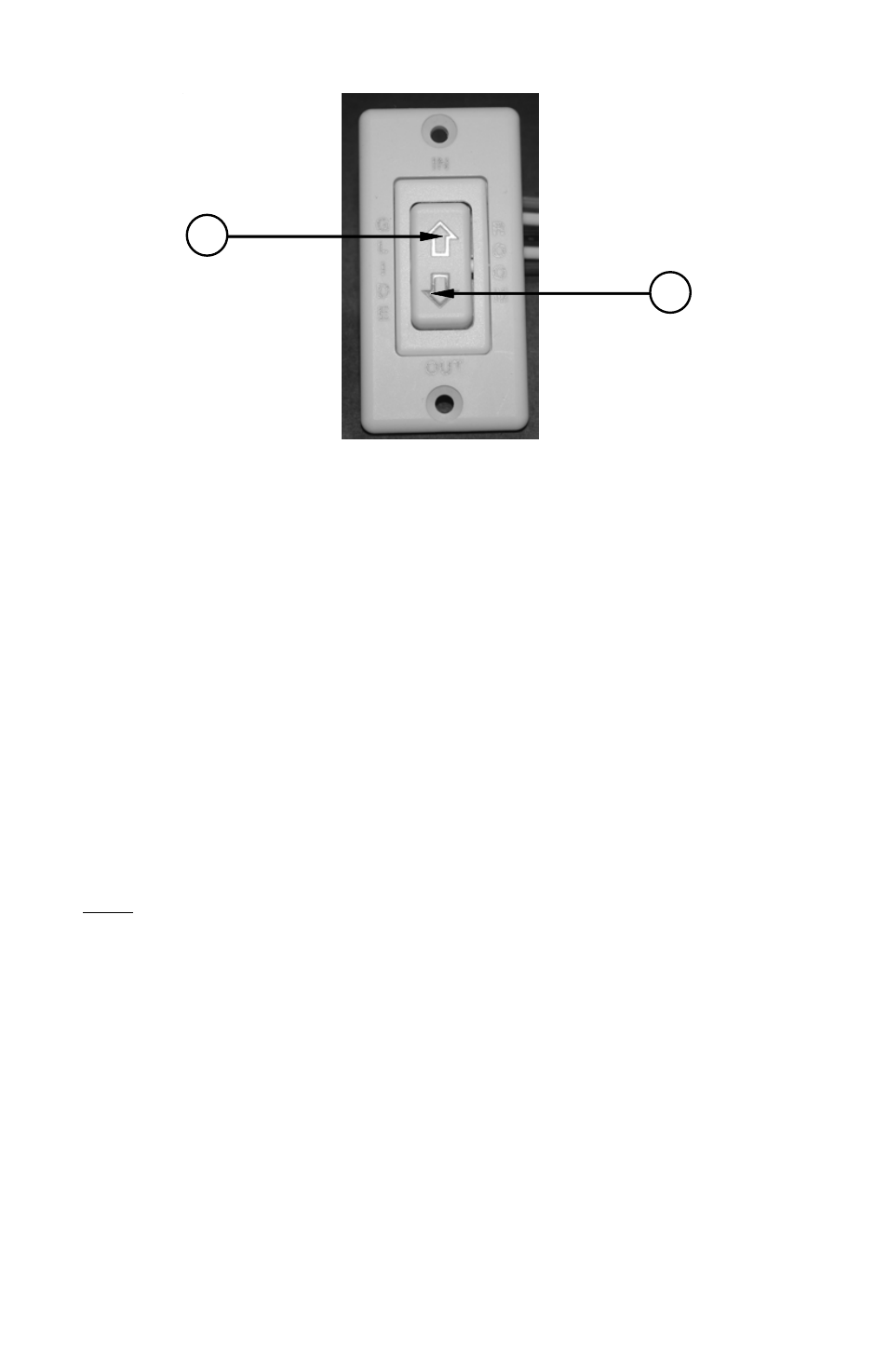

Fig. 4
1. Prior to Manual Operation, be sure to clear any obstruction from the
slideout area that may impede the extension or retraction of the
slideout room, including any transit bars.
2. Locate Slideout Motor and drive tubes under coach.
3. Motor must be charged with 12VDC to open electronic brake.
4. Using an adjustable or crescent wrench on the slideout drive tube,
the slideout room can then be manually extended or retracted by
rotating the drive tube.
Note: Remember to replace transit bars(if equipped) before moving the
coach.
WARNING!
Always disconnect battery from system prior to manually operating system. Failure
to disconnect battery can cause electricity to backfeed through the motor and
cause serious damage to the system as well as void the warranty.
WARNING!
The gears can be stripped out if the room is manually retracted/extended to it’s
fullest extent and the operator continues to rotate manual override.
Any damage due to misuse of the Manual Override feature will disqualify any and
all claims to the Limited Warranty.
