Lippert Components 3 X 3 Slideout System User Manual

Page 11

The Lippert 3 x 3 Slideout System can be timed and fine-tuned for
optimum performance. In the event the travel of either side of this two-
rail system should be out of time, follow this process for re-timing the
slide-out room.

Note: When addressing issues regarding your slide-out room,
remember to relay the information from the OUTSIDE of the coach. This
note will help to standardize the information needed to be relayed to a
service station or technical service at LCI.

Procedure

The Lippert 3 x 3 Slideout System is set-up to be able to easily adjust the

side to side travel, or timing, of the two sides of the system. This system

can easily and quickly be adjusted in the event that the room is not

timed.

1. Retract room completely.

2. Pull Cotter Pin (Fig. 5C) on Gear Pack Assembly Fig. 5

3. Pull Pin (Fig. 5D).

4. Allow Gear Pack to pivot on Shoulder Bolt (Fig. 5E) to disengage

Gear Pack from Inner Rail (Fig. 5A).

5. With Gear Pack disengaged, move the Inner Rail to time it with the

opposite rail.

6. With inner rail from side out of time completely adjusted, replace

Gear Pack Assembly, Straight Pin and Cotter Pin.

During troubleshooting, remember, by changing, altering or adjusting one
thing, it may affect something else. Be sure any changes do not create a
new problem.

ROOM ADJUSTMENT

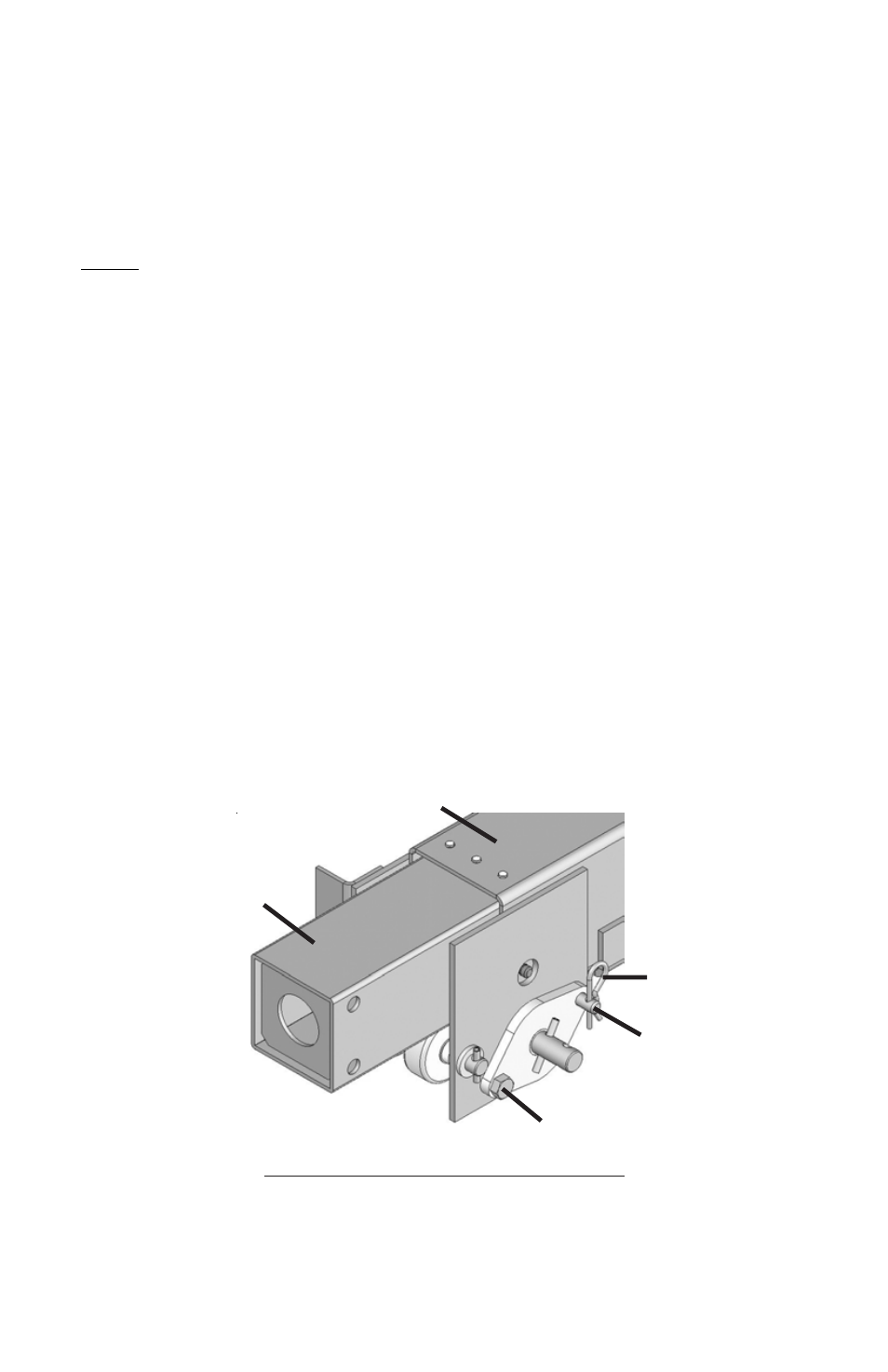

Fig. 5 - Gear Pack Assembly
