5
Rev: 08.15.2013

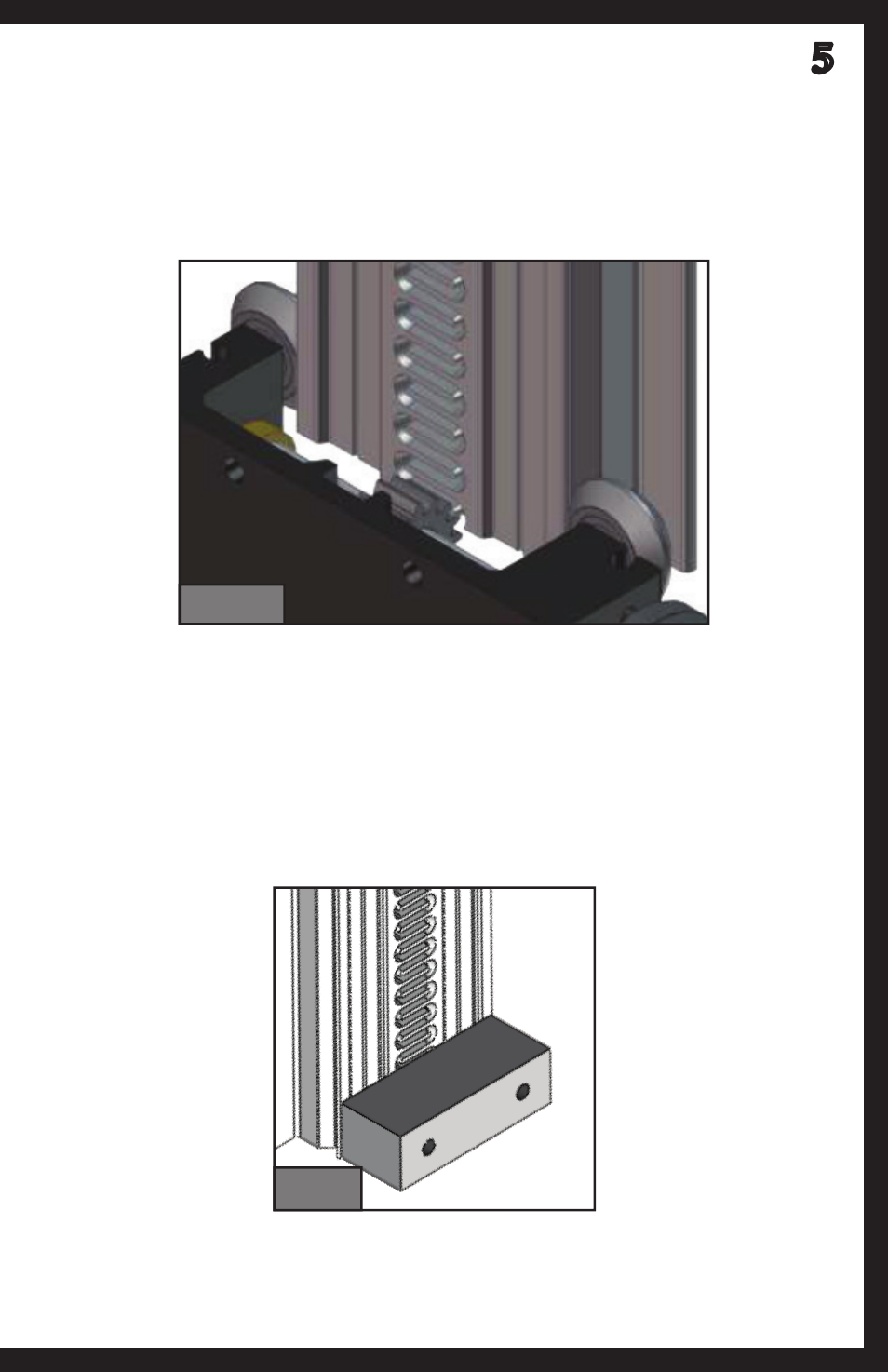

3. Insert gear racks into motor bearing blocks by aligning V-grooves in the rack
to the V-rollers in the motor bearing blocks. Insert until the gear in the motor
bearing blocks comes into contact with the serpentine groove in the gear rack as
shown below (Fig. 3).
Fig. 3
4. Connect motors to controller and controller to 12v power source.
NOTE: Type and location of Raise/Lower switch to prevent unsupervised and
unintended operation is responsibility of RV manufacturer.
5. Operate motors to lower gear racks into motor bearing blocks to engage lower
V-rollers.
6. Lower gear racks sufficiently to install stop blocks as shown using socket head
screws and lock washers provided (Fig. 4).
Fig. 4
