3
Rev: 08.15.2013
This manual is a guide for the installation of the Schwintek Bunk Lift System. Exact
installation procedure depends on RV manufacturer's design of bunk bed attachment
brackets and surrounding structures. At RV manufacturer's discretion, the motor
mounting blocks can be attached to either the seat back structure (Fig. 1A) or the wall
structure (Fig. 1B). Mounting to the seat back structure will not conceal the gear teeth,
however mounting to the wall structure will conceal the gear teeth. Either mounting
surface must contain sufficient backing material to support the assembly.
NOTE: Seat cushions not shown.

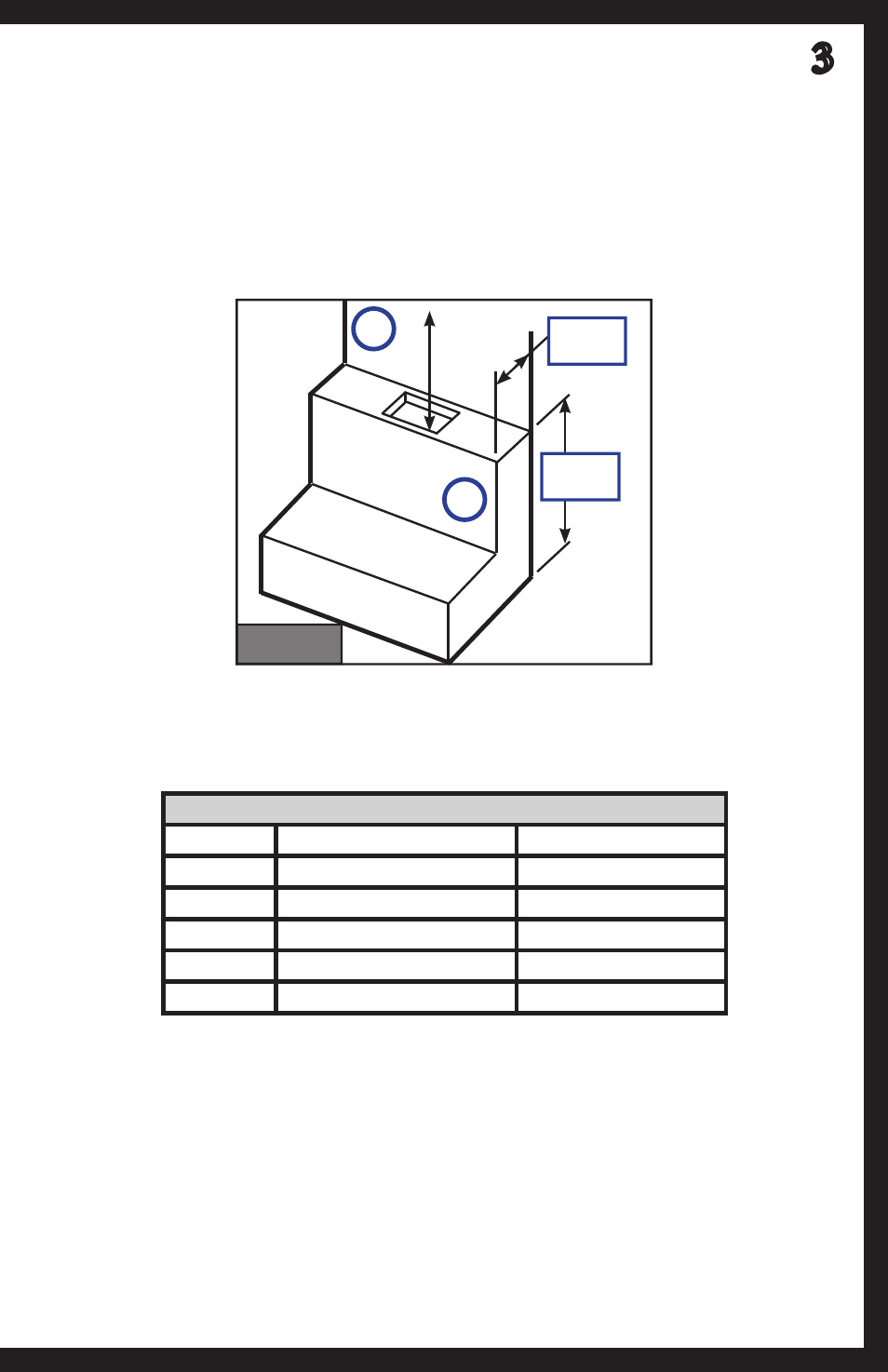

Fig. 1
A
B
NOTE: Periodic light lubrication (CRC PowerLube or equivalent) of the gear racks may
be necessary if gear chatter sounds occur due to normal wear.
NOTE: Consumer labels for the following are the responsibility of the RV manufacturer:
Bed is not to be occupied, loaded or used for cargo storage in any way while being
raised or lowered. The dinette/bed setting is not to be occupied during raising or
lowering the bunk bed.
NOTE: Development of a travel latch when bed is in raised position is responsibility of
RV manufacturer.
Components Required for Installation
# Req. Description LCI Part Number
2 Gear Rack Assembly Varies by length
2 Motor 236575
2 Motor Bearing Block 327495
2 Wire Harness Varies by length
1 Controller 333397
Approx.
37"
Approx.
4"
