4
Rev: 08.15.2013

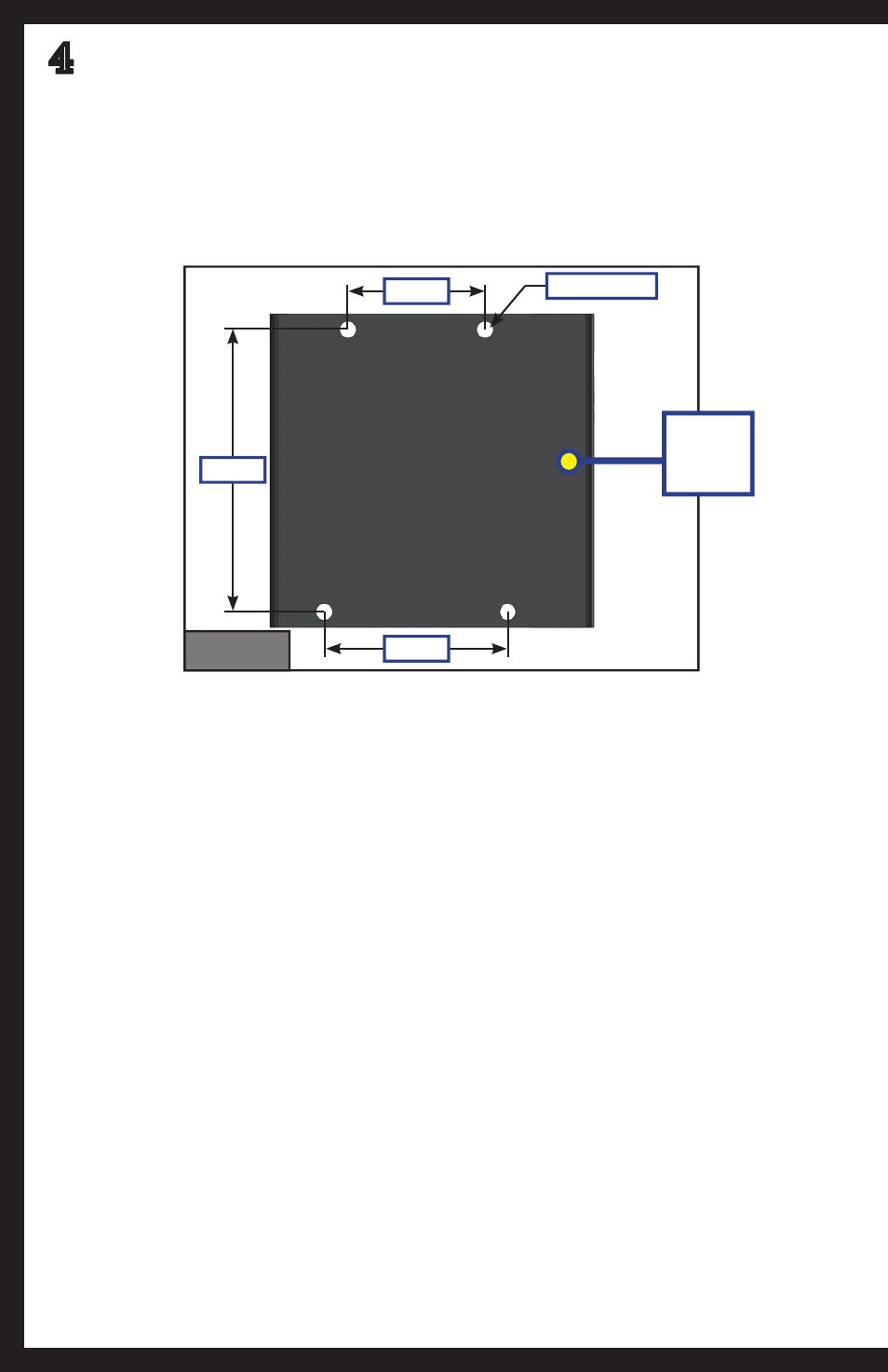

1. Mount motor bearing blocks to load-bearing structure using (4) 1/4 -20 bolts
per block. The mounting bolt pattern is shown in Fig. 2. Use the measurements
provided to create a template for the bolt holes.
NOTE: Motor bearing blocks must be mounted in such a way to ensure the gear racks
raise and lower perpendicular to the coach floor and parallel to walls. Do not use
oversized holes as it will cause the assembly to tear away from the mounting structure.
2. Mount controller module in an area accessible to service but protected from
damage. Standard harness length is 15 feet. Longer harness lengths are available
if required for manufacturer specific applications.
2.918”
4.500”
2.175”
0.266” Ø x4
Fig. 2
Motor
Bearing
Block
TOP
BOTTOM
