Touch Audio VD300WR Owners Manual

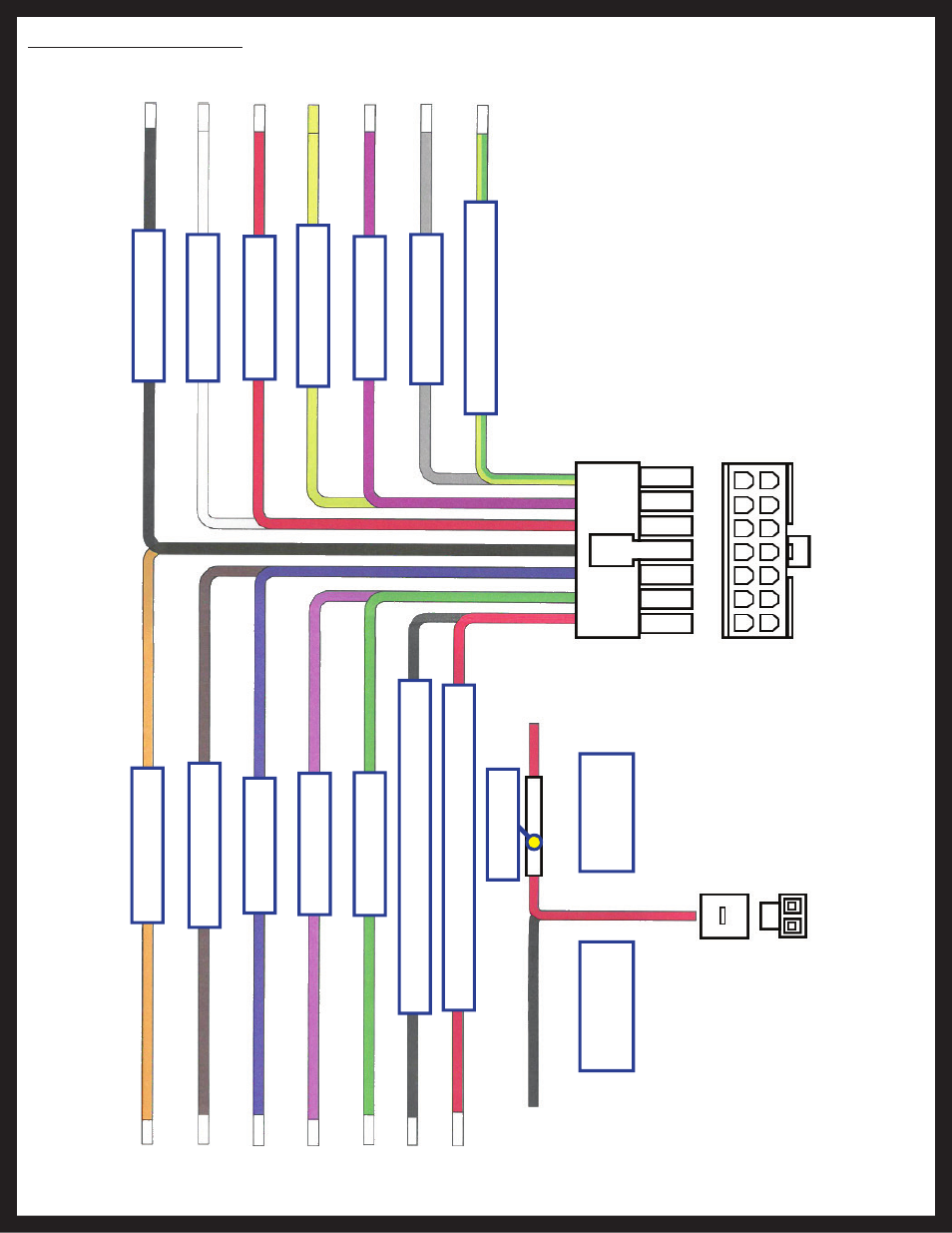

Speaker Wiring Harness
NOTe: Wrong connection or reversed polarity (+/-) can cause distortion and damage the power amplifier.
Black A-Right (-)
Orange C-Left (-)
Brown C-Right (+)
Blue B-Left (+) Pink
C-Right
(-)
Green B-Left (-)
Power In Black #16 AWG Power 12V (-) Power In Red #16 AWG Power 12V (+)
Power 12V+ Red +12V
Power 12V- Black Ground
White C-Left (+) Red A-Right (+)
Yellow B-Right (-)
Violet
A-Left
(-)
Grey B-Right (+)
Yellow/Green A-Left (+)
15A Fuse
