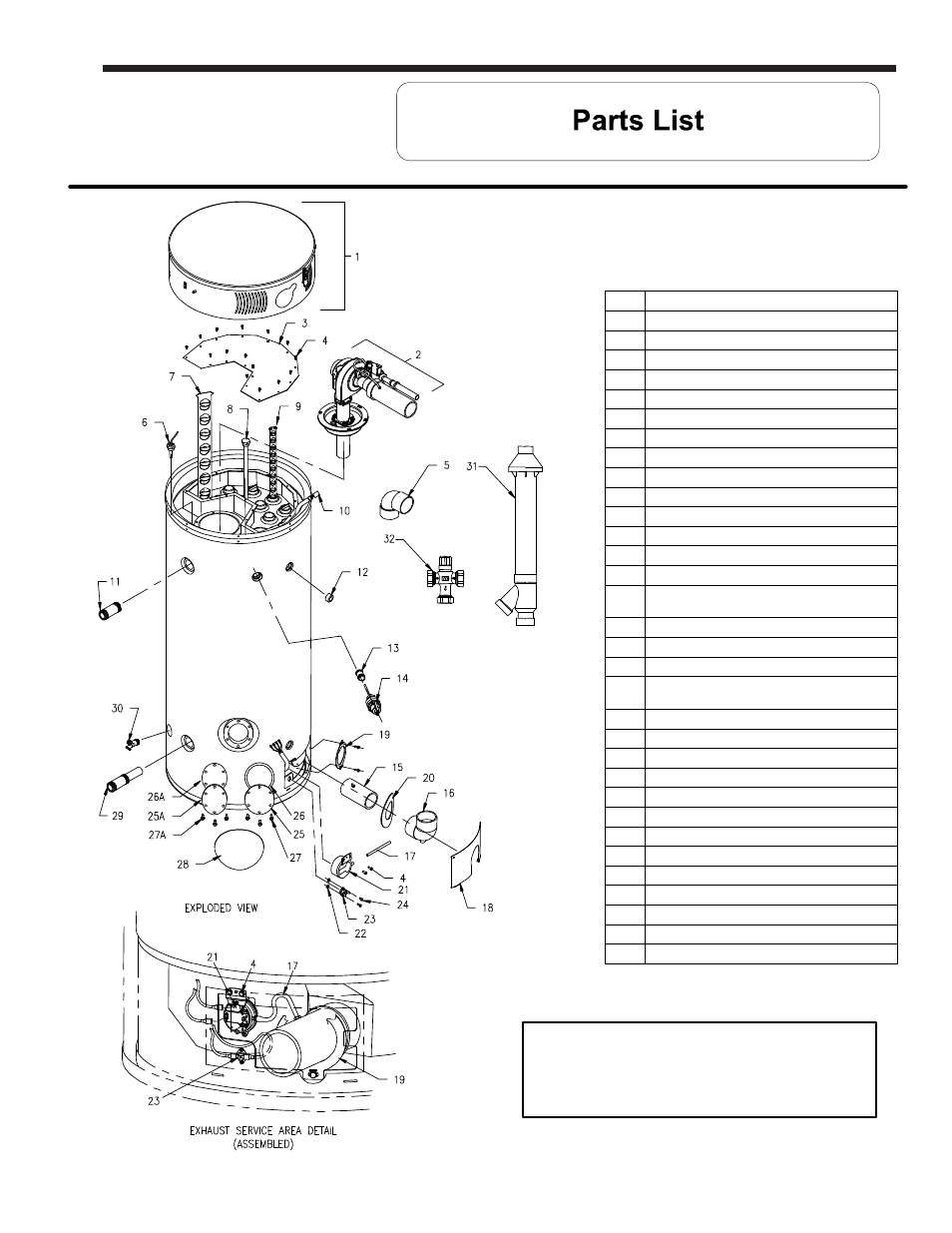

1 Combustion Surround Assy.
2 Burner Assy (specify model)
3 2 nd Pass Top Collector Cover
4 Screw 10-16 x 3/4
5 Vent Termination Elbow
6 Thermostat Sensor Probe
7 Baffle 4" Flue (specify model)
8a Anode Rod Assy
9 Baffle 2" Flue
10 Wire Harness Service Panel
11 Plastisert Nipple 1-½" NPT
12 Plug
13 Nipple
14 T&P Relief Valve
15
Exhaust Pipe (PVC) w/Hose Barb
(except UHE100T399)
16 Condensate Trap Elbow (specify model)
17 Silicone Hose
18 Outer Door Service Panel (specify model)
19
Vent Pipe Support Bracket (except
UHE100T399)
20 NSF Escutcheon
21 Exhaust Pressure Switch
22 Nuts
23 Collector Temperature Limit Switch
24 Screw 6-32x 3/8
25 Cleanout Access Cover
26 Cleanout Gasket
27 Screw 5/16-18 x ¾ HH Grade 5
28 Cleanout Cover
29 Cold Water Inlet (Hydrojet) Assy.
30 No Handle Brass Drain Valve
31 Concentric Vent System (optional)
32 ASSE Approved Mixing Valve (optional)
8b Powered Anode (for UHE100T399)
