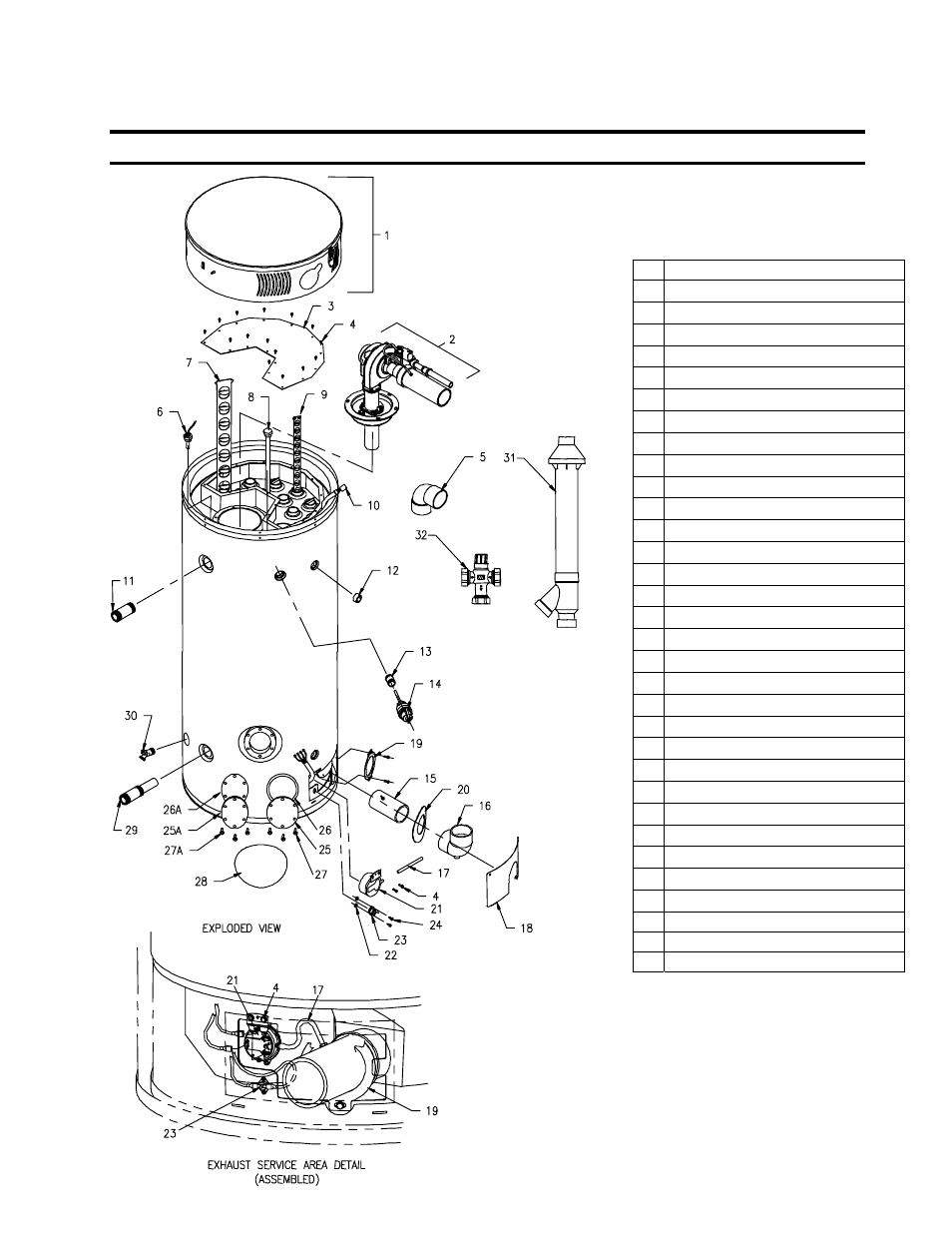

SECTION XII: PARTS LIST
44
Ultra High Efficiency Water
Heater
1 Combustion Surround Ass'y
2 Burner Ass'y (Specify Model)
3 2nd Pass Top Collector Cover
4 Screw 10-16 x 3/4
5 Vent Termination Elbow
6 Thermostat Sensor Probe
7 Baffle 4” Flue (Specify Model)
8a Mag. Rod Ass'y
8b Powered anode (for 399)
9 Baffle 2” Flue
10 Wire Harness-Service Panel
11 Plastisert Nipple 1 ½” NPT
12 Plug
13 Nipple
14 T&P Relief Valve
15 Exhaust Pipe (PVC) w/ Barb Tap
16 Condensate Trap Elbow
17 Silicone hose
18 Outer Door Service Panel (Specify Model)
19 Vent Pipe Support Bracket (except 399)
20 NSF Escutcheon
21 Exhaust Pressure Switch
22 Nuts
23 Collector Limit Switch
24 Screw 6-32 x 3/8
25 Cleanout Access Cover
26 Cleanout Gasket
27 Screw 5/16 - 18 x 3/4 HH Grade 5
28 Cleanout Cover
29 Cold Water Inlet (Hydrojet) Ass'y
30 No Handle Brass Drain Valve
31 Concentric Vent System (Optional)
32 Thermostatic Mixing Valve (Optional)
Customer must specify complete
model number and serial number
when ordering service parts.
