LAARS Heating Systems Page 44

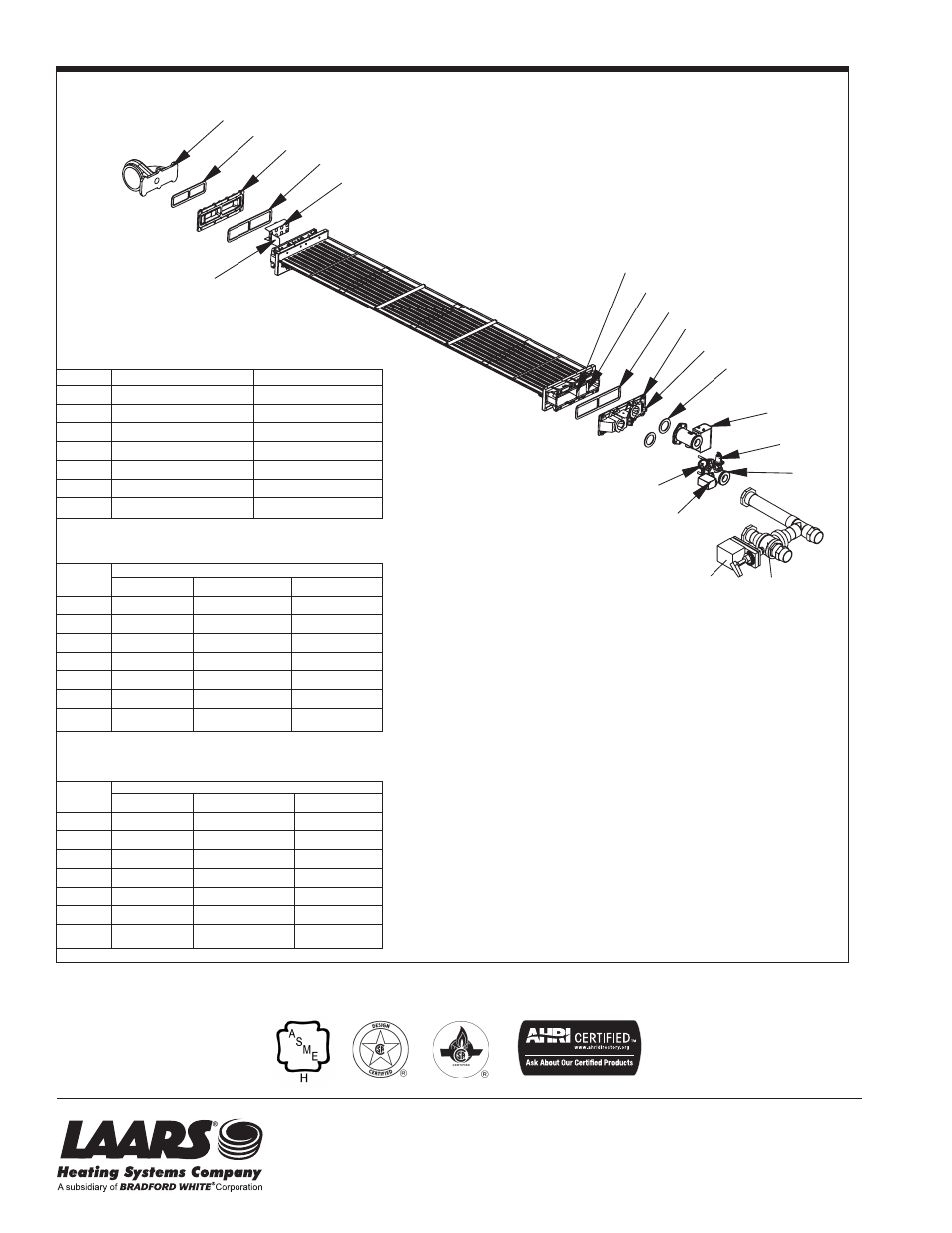

DETAIL “B”
MOUNTED PUMP HEAT EXCHANGER COMPONENTS
42
55
56
57
44
58
44
45
47
54
49
52
50
51
42
43
46
84
83
Figure 21. Detail of Internal Components.
H2319100D
800.900.9276 • Fax 800.559.1583 (Customer Service, Service Advisors & Technical Support)
20 Industrial Way, Rochester, NH 03867 • 603.335.6300 • Fax 603.335.3355 (Applications Engineering)
1869 Sismet Road, Mississauga, Ontario, Canada L4W 1W8 • 905.238.0100 • Fax 905.366.0130
www.Laars.com
Litho in U.S.A. © Laars Heating Systems 1306 Document 1204D
Laars Heating Systems Company reserves the
right to change specifications, components, fea-
tures, or to discontinue products without notice.
Pennant Hydronic Boiler
SIZE TACO PUMP P/N B&G PUMP P/N
500 A2117201 A2121803
750 A2117201 A2121803
1000 A2117202 A2121802
1250 A2117202 A2121802
1500 A2117203 A2121801
1750 A2117203 A2121801
2000 A2117204 A2121800
Pennant Water Heater with B&G Pump
B&G PUMP P/N
SIZE Soft Water Normal Water Hard Water
500 A2121803 A2121803 A2121801
750 A2121803 A2121803 A2121801
1000 A2121803 A2121802 A2121801
1250 A2121803 A2121802 A2121801
1500 A2121803 A2121801 A2121801
1750 A2121801 A2121801 A2121801
2000 A2121800 A2121800 A2121800
Pennant Water Heater with TACO Pump
TACO PUMP P/N
SIZE Soft Water Normal Water Hard Water
500 A2117201 A2117201 A2117203
750 A2117201 A2117201 A2117203
1000 A2117201 A2117202 A2117203
1250 A2117201 A2117202 A2117203
1500 A2117201 A2117203 A2117203
1750 A2117203 A2117203 A2117203
2000 A2117204 A2117204 A2117204
