7.1 Operation limits
• The weighing bridges are designed extremely robust. However the load limits
according to the following table should not be exceeded!

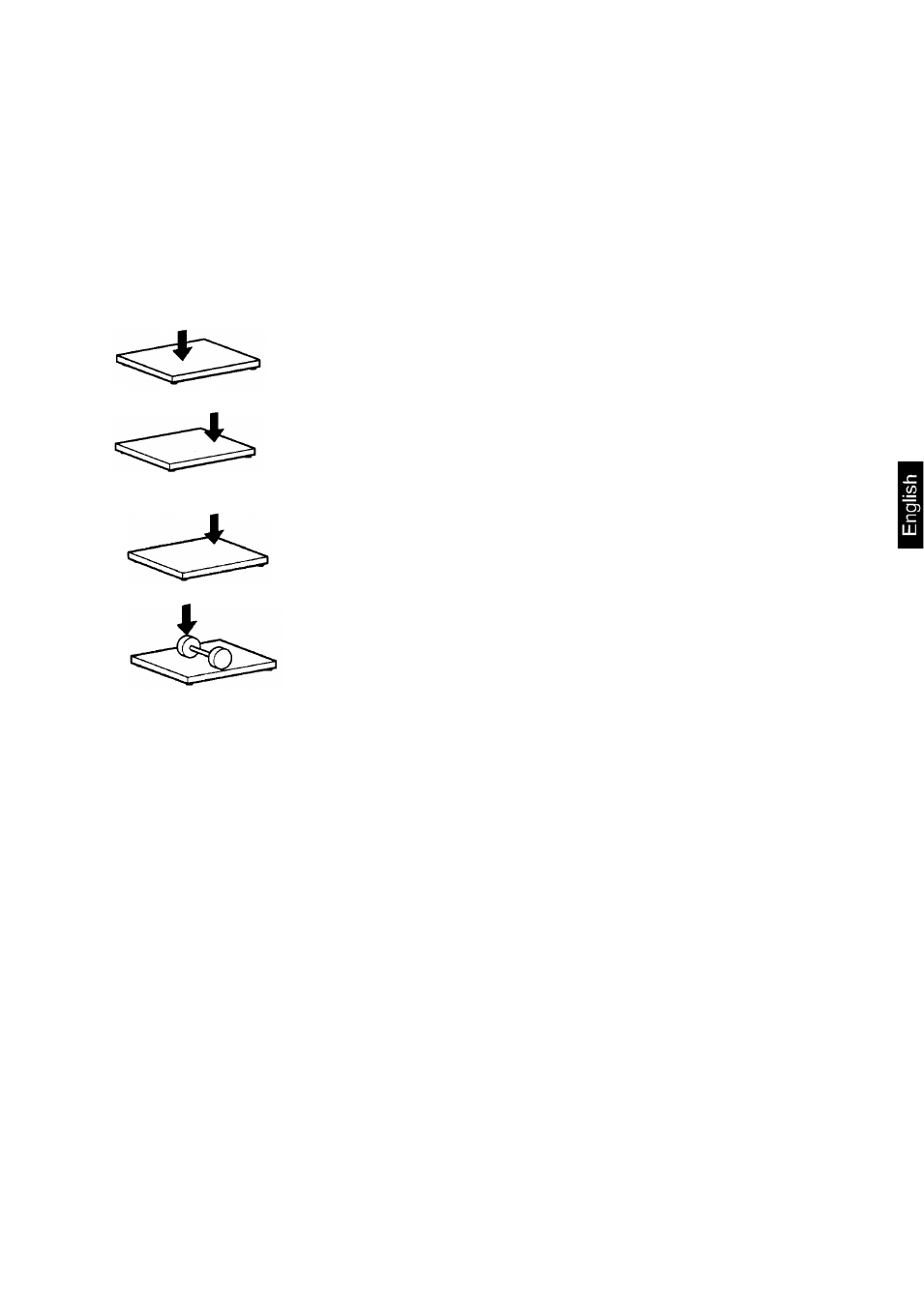

• Depending on the type of load receptacle, the static carrying capacity, i.e. the
maximum admissible load is:
Weighing ranges
600kg
1500kg 3000kg 6000kg
With centrical load
900kg
2250kg 4500kg 9000kg
With side stress
600kg
1500kg 3000kg 6000kg
With one-sided loading
300kg
750kg
1500kg 3000kg
With single-wheel load
600kg
1500kg 3000kg 6000kg
7.2 Operation with access ramps
• The load plate of the weighing bridge is an active weighing element, the access
ramps are passive, i.e. during the weighing process all wheels of the conveying
vehicles must rest on the load plate.
• The air gap between the load plate and the access ramps must be free. Especially
for weighing of grainy or small-piece weighing goods, the gap should be controlled
regularly and kept clear.
7.3 Load/unload weighing system
• Place the load on the scales using a lifting truck, a crane or a forklift truck. Ensure
that the load is not swinging when it is placed onto the scales.
• Lift the load first vertically at least 10 cm above the scales before it is removed or
newly placed.
