Page 35: Vn� t, Baud
Baud rate
0.0
g
Vn�
T
BAUD�
The baud rate defines the transfer speed vie the interface, 1 Baud =
1 Bit/second.
In weighing mode keep the PRINT key pressed until [Unit]
appears.
Press the MODE key several times until „bAUd“ is displayed.
Acknowledge using SET key, the current setting is displayed.
Use MODE key select the desired settings
9600
4800 2400 1200 19200
Use the SET key to confirm selection. The balance returns to
weighing mode.
10 Data output RS 232 C
10.1 Technical Data
•
8-bit ASCII Code
•
1 start bit, 8 data bits, 1 stop bit, no parity bit
•
Baud rate selectable at 1200, 2400, 4800 , 9600 and 19200 baud
•
Miniature plug-in necessary (9 pole D-Sub)
•
For operation with interface faultless operation is only ensured with the correct
KERN – interface cable (max. 2m)

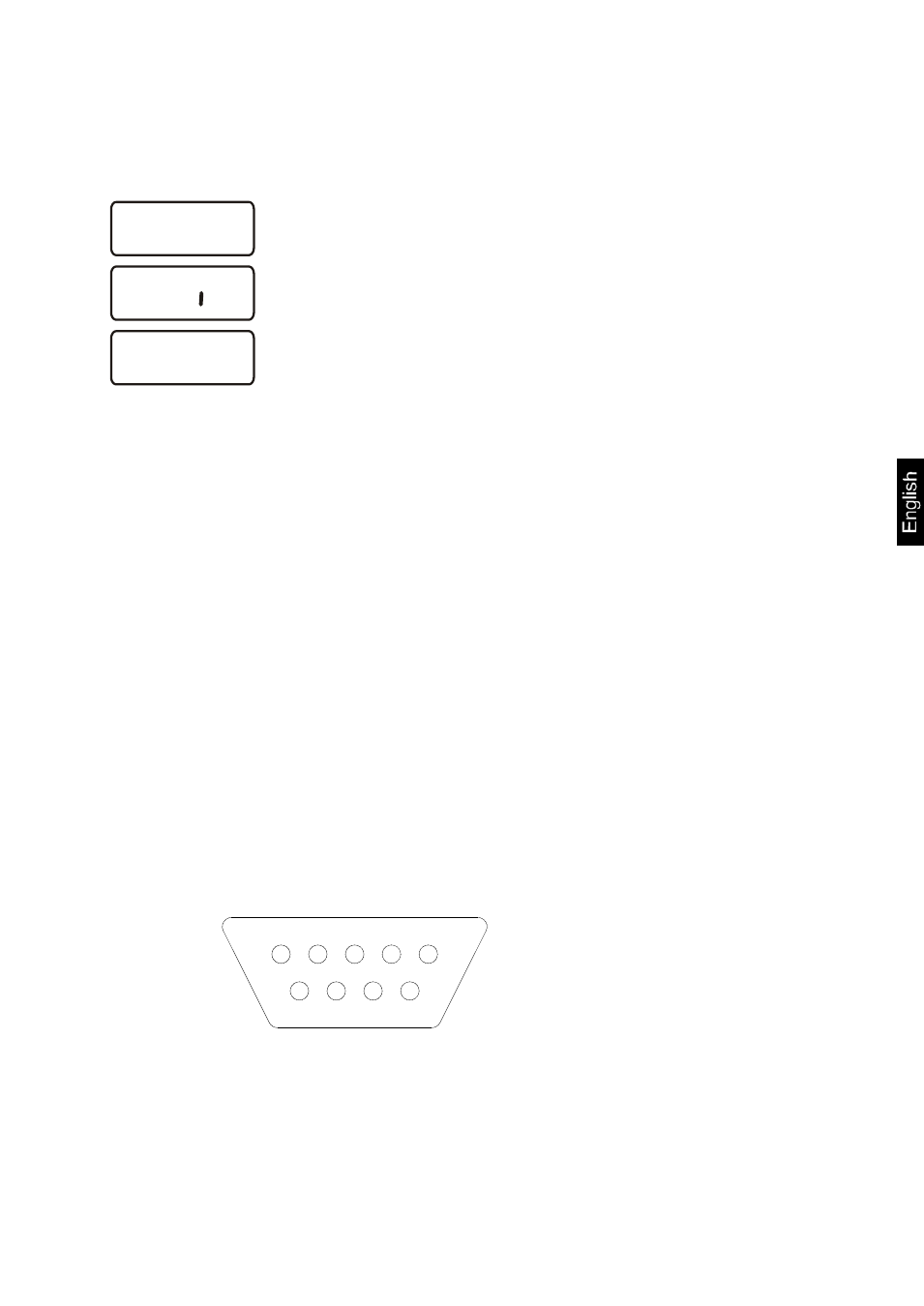

10.2 Pin allocation of balance output bushing:
Front view:
5
1
9 6
Pin 2:
Transmit data
Pin 3:
Receive data
Pin 5:
Signal ground
FKB_A-BA-e-1513
35
