Quick Start Guide
LC-202P/LC-208P
5.0
Wiring Connections
Before performing any wiring or connection operations, ensure that controller power is OFF.
Serious damage to sensitive components on the controller may occur if wiring changes are made
while controller power is on.
•
Refer to Figure 1 and Figure 2 on page 7 when reviewing the information throughout
Section 5.2 beginning on page 9.
•
Refer to Figure 3 on page 8 when reviewing the information throughout Section 5.3 beginning
on page 14.

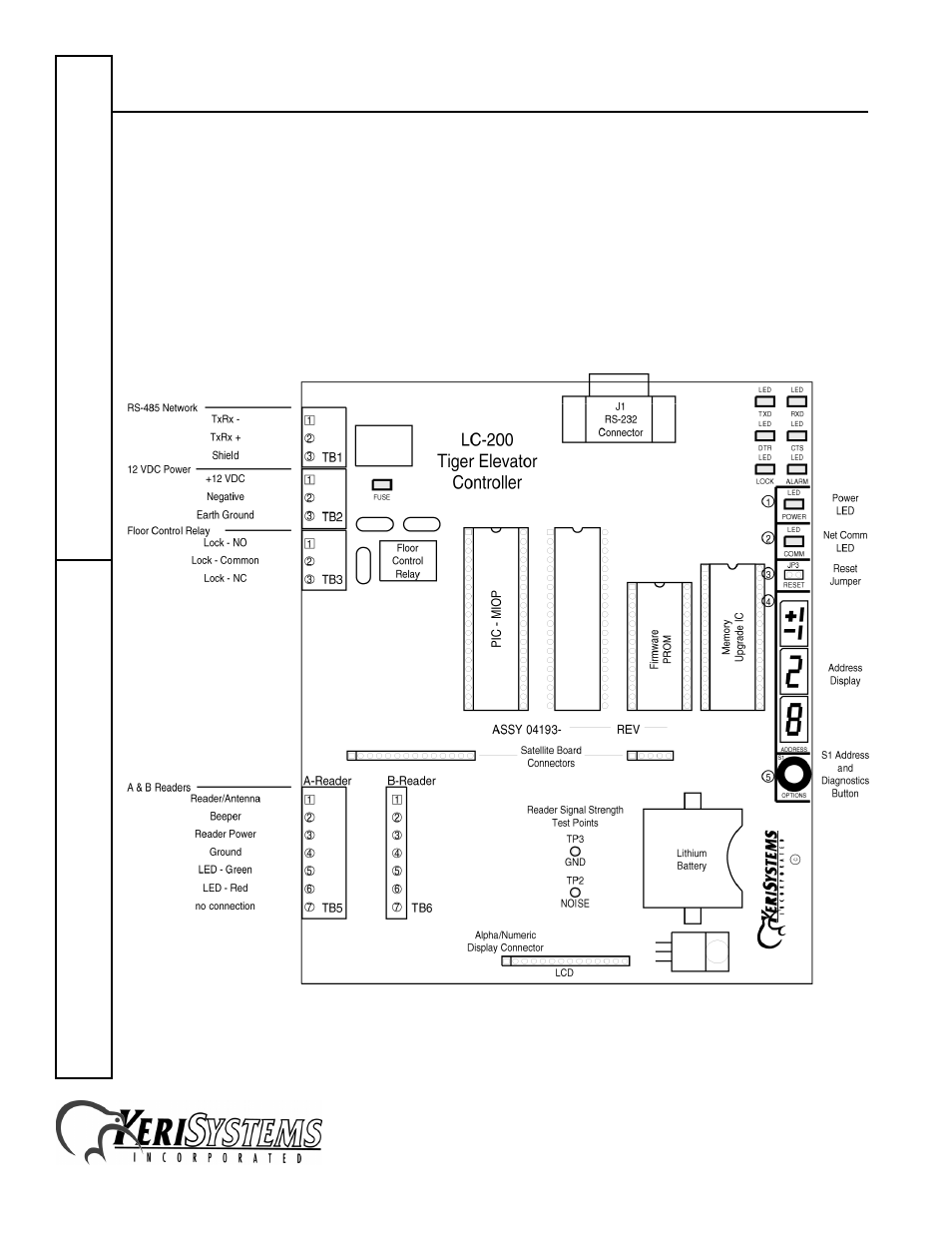

Figure 1: The LC-200P Elevator Controller
