KENTON PLUGSTATION USERS MANUAL
87

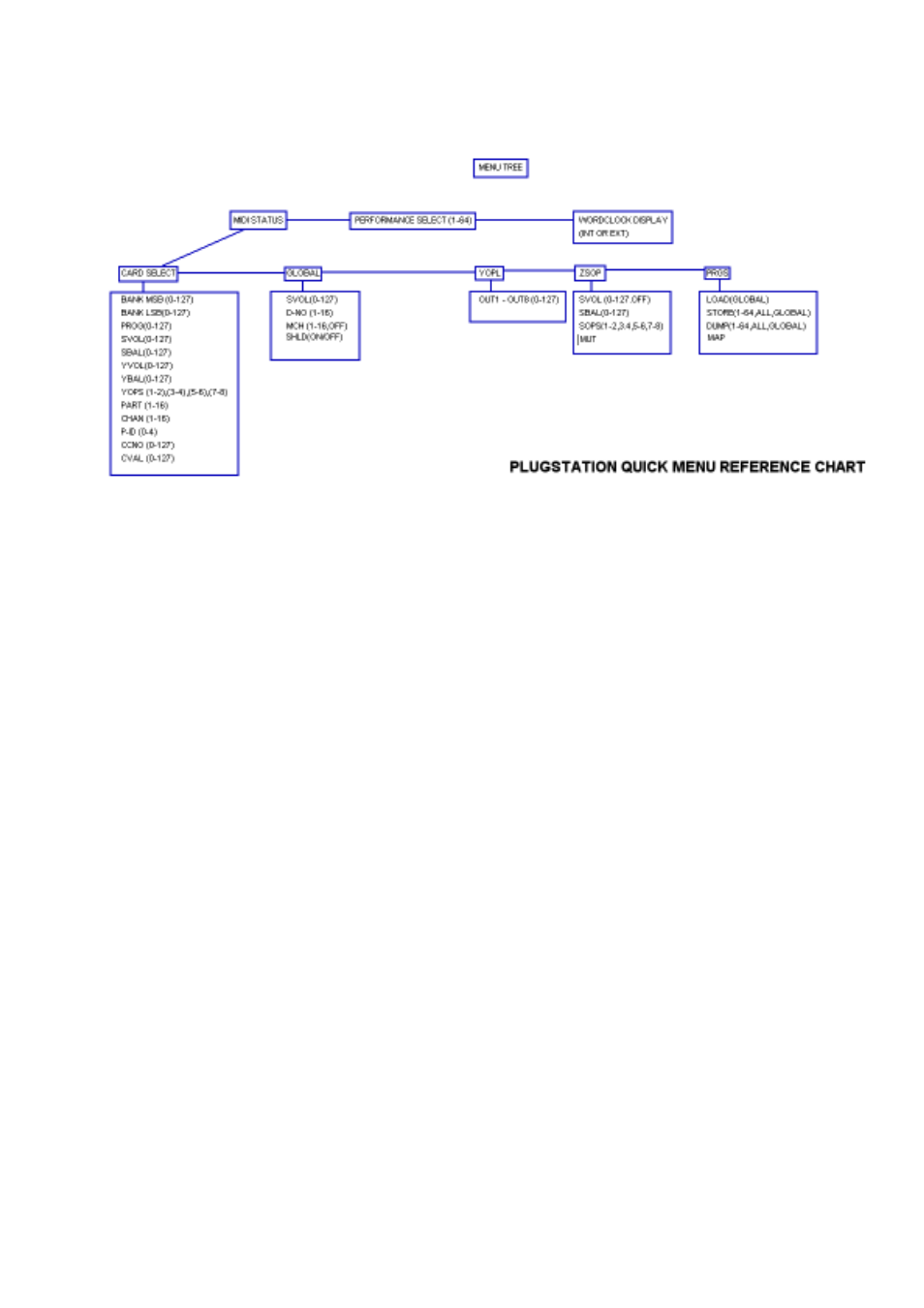

QUICK GUIDE TO PLUGSTATION COMMANDS:
STATUS LEVEL
P-XX – (XX is a number between 1-64) : This indicates a Performance value for the Plugstation
Performance memory selector
EXT – Indicates that Plugstation is running from an external wordclock
INT – Indicates that Plugstation is running from an internal wordclock
CARD EDIT LEVEL
BNTH– Bank select MSB. Allows you to select a Bank MSB message for a specific PLG card
BNTL– Bank Select LSB. Allows you to select a Bank LSB message for a specific PLG card
PROG – Program change message. Allows a specific program for each PLg card to be recalled
SVOL – Controls the amount of PLG board level is being fed back to the SW1000XG
SBAL – Controls the balance of the PLG card signal being fed back to the SW1000XG
YVOL – Controls the amount of signal being sent to the Y-BOARD outputs from each PLG card
YBAL – Controls the balance of the PLG card signal being sent to the Y-BOARD outputs for each
PLG card
YOPS – Selects which output the PLG card signal is being fed to on the Y-BOARD
PART – Selects the Part number that a specific PLG card part can be set to
CHAN – Selects the MIDI channel that a specific PLG card responds on
