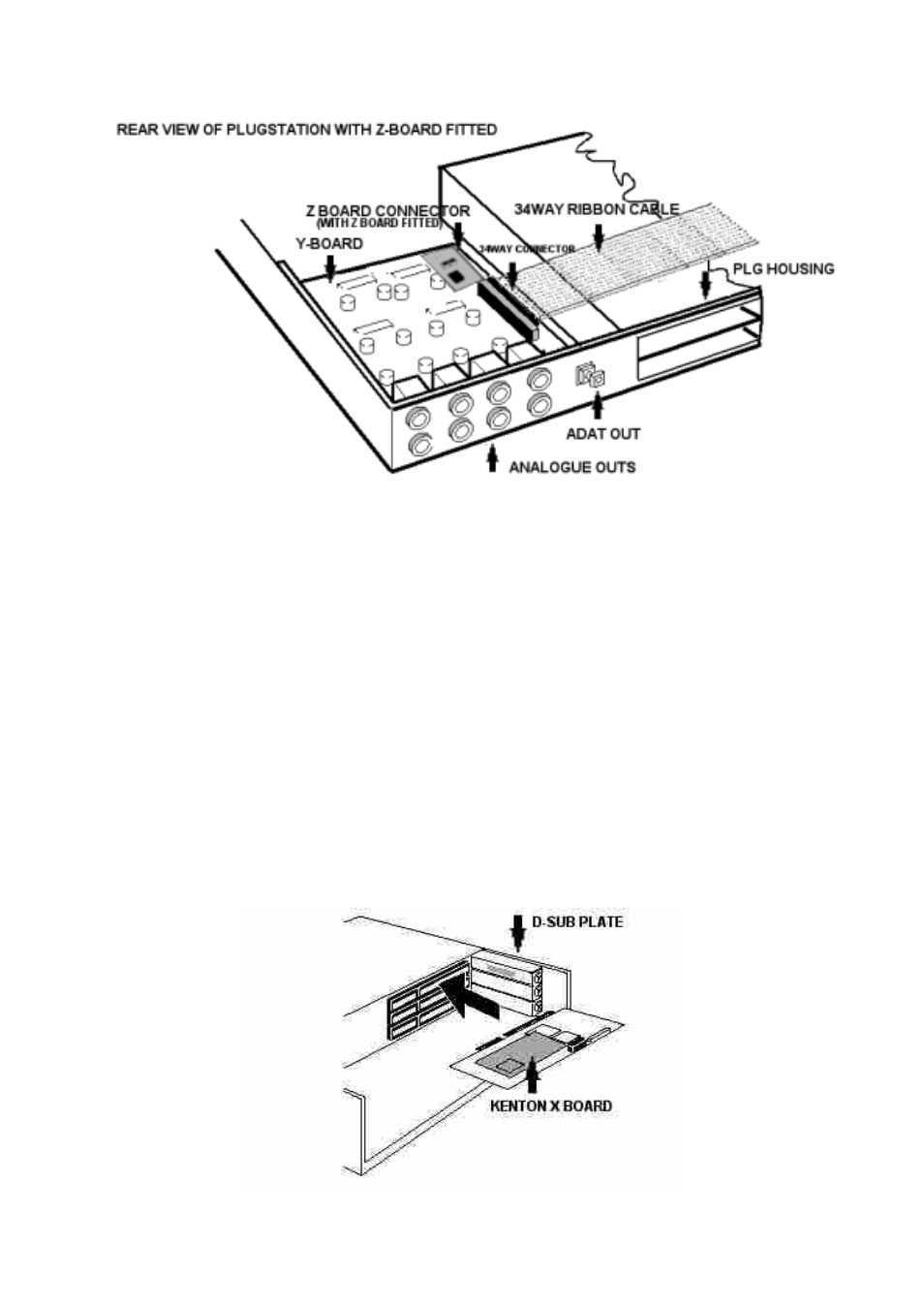

DIAGRAM 14: Z AND Y BOARDS FITTED TO PLUGSTATION
Once fitted, you should re-attached the top case with the screws, re-fit the DATA entry knob (ensuring that
you also replace the felt washer), and after checking all is secure, re-connect all of your audio/power and
MIDI cables. This should be the last time you ever need to open up the PLUGSTATION (except the back
plate to fit PLG cards if you have not already done so)
FITTING THE X BOARD TO THE SW1000XG
Once you have fitted the appropriate PLG cards to the PLUGSTATION (see section on fitting PLG cards),
you may then (if you are using the PLUGSTATION in conjunction with the SW1000XG) need to fit the X-
BOARD. If you have fitted a PLG series card to the SW1000XG in the past, then this is a relatively easy
task, as the X-BOARD is almost identical.
NOTE: THE X-BOARD IS EXCLUSIVELY FOR USE CONNECTED TO THE SW1000XG. IT SHOULD NOT
BE USED IN ANY OTHER DEVICE.
First you should remove the cover from your PC, being careful to avoid any static electricity building up on
your hands or clothes, which may discharge on the SW1000XG or on other components inside your
computer.
