Kenton Plugstation ver.2.01 User Manual
Page 26
KENTON PLUGSTATION USERS MANUAL
26

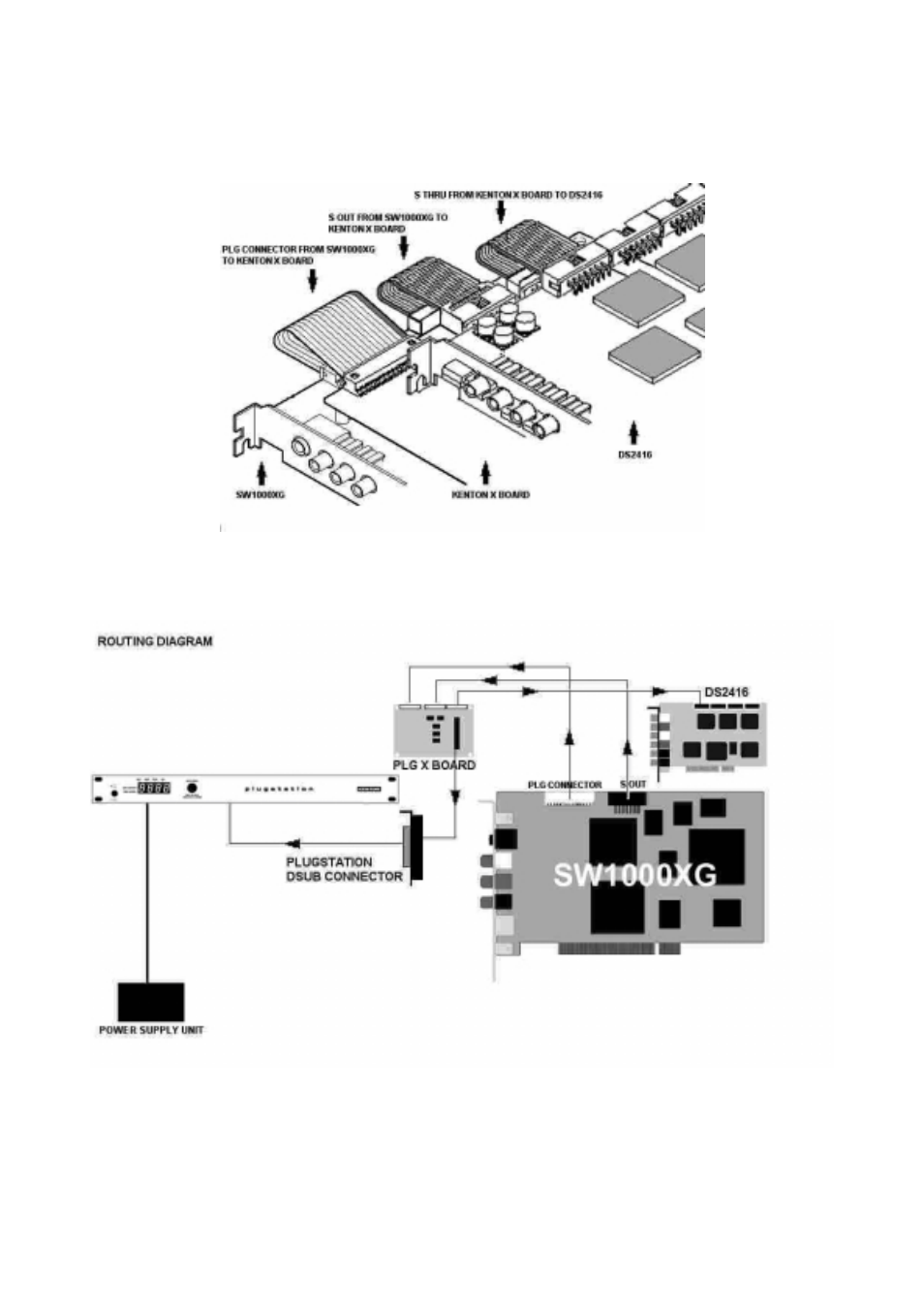

DIAGRAM 20: CONNECTING THE SERIAL THRU TO THE DS2416 CARD
The following diagram shows the routing, which a typical system will provide. The routing diagram below
features the PLUGSTATION, SW1000XG and DS2416 card.
DIAGRAM 21: A TYPICAL CONNECTION FLOWCHART
The routing shown here in diagram 21 is only the signal routing OUT of the SW1000XG, and to the
PLUGSTATION and DS2416. It does not show the back channel digital audio information coming back to
the SW1000XG from any fitted PLG cards in PLUGSTATION, nor does it show the optional Y and Z board
outputs from the PLUGSTATION to a separate mixer. This is to avoid confusion at this stage, and just to
give a connection routing indicator. A clearer set of routing possibilities and information can be found in the
