639

EXIT SIGNS

Architectural

COOPER LIGHTING

COOPER LIGHTING - SURE-LITES

®

• Dual-voltage input

120/277VAC, 60Hz

• Die cast aluminum

faceplate

• Overall exposed exit

thickness is only 3/4"

• LED Lamping

• Premium Nickel Cadmium

battery

• 20 gauge steel recessed

housing fits in 2x4
construction

• 18 gauge steel mounting

plate with universal
mounting pattern

• Centerpin Torx tamper

resistant screws on sides of
faceplate

• NFPA compliant knockout

chevrons

• Adjustable hanger bars

• Line-latching, Solid-State

voltage limited charger,
Solid-State switching, low-
voltage disconnect,
brownout circuit,
overload/short-circuit
protection, test switch/
power indicator light

• UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA, UL
FTBR Listed (with “2C”
option), UL Listed as
suitable for floor proximity
installation, most state and
local codes

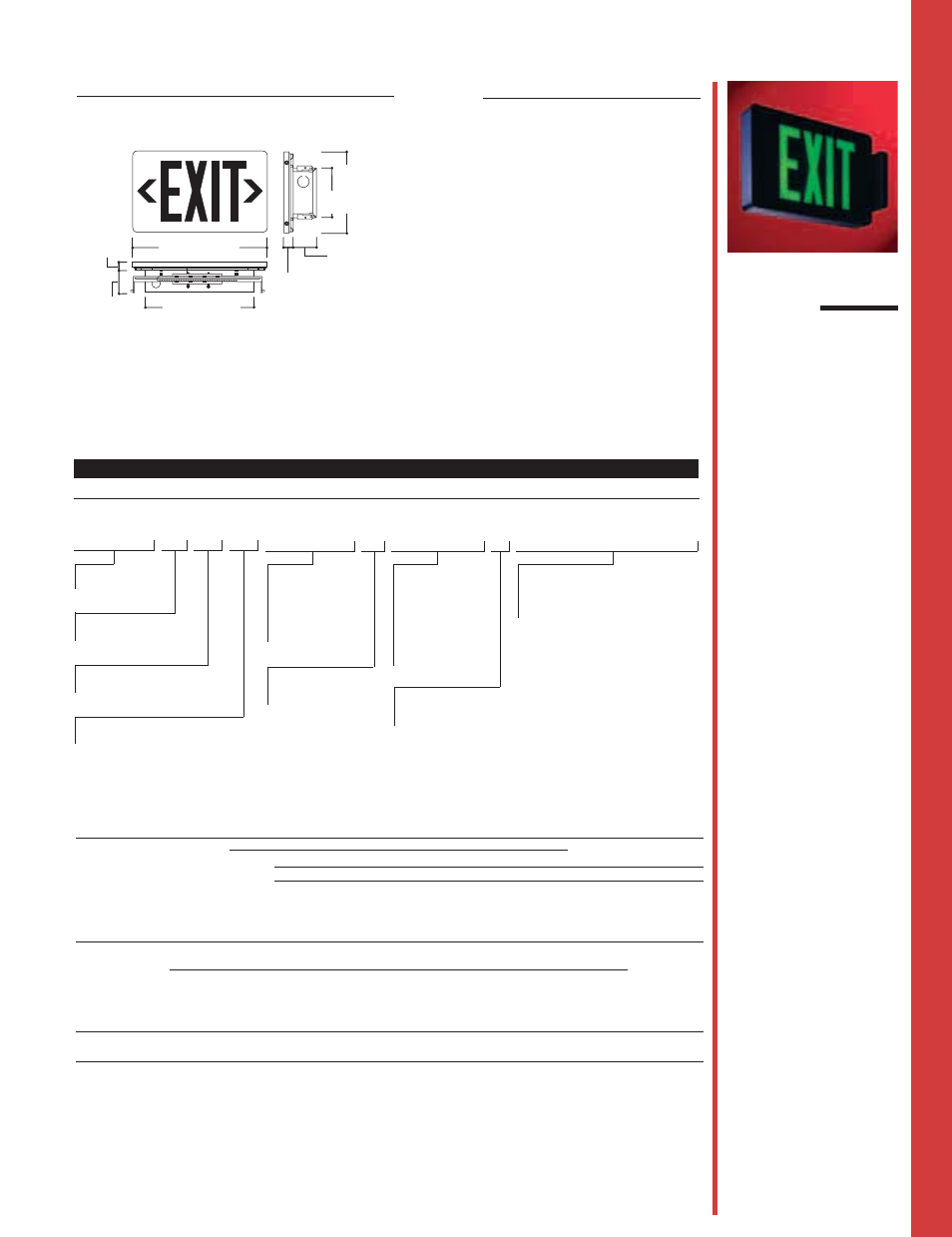

D I M E N S I O N S

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : T P X 7 1 7 0 2 0 R B

E n e r g y D a t a

Standard Power - Sealed Nickel Cadmium Battery - LED Exits

Input Power;

Input Current (Max.):

Power Factor:

T.H.D.:

120V

277V

120V

277V

120V

277V

120V

277V

Red Letters Single Face

7.4W

7.5W

.08A

.04A

>.72

>.72

<34%

<34%

Red Letters Single Face with Remote

9.3W

9.5W

.09A

.04A

>.84

>.84

<31%

<32%

Green Letters Single Face

8.5W

8.7W

.09A

.04A

>.79

>.79

<30%

<31%

Green Letters Single Face with Remote 11.4W

11.7W

.11A

.05A

>.90

>.90

<26%

<26%

Standard Power with Self-Diagnostics Option ( Fully Discharged Battery) - LED Exits

Red Letters Single Face

8.4W

8.5W

.08A

.04A

>.82

>.82

<31%

<31%

Red Letters Single Face with Remote

9.8W

9.5W

.09A

.04A

>.86

>.84

<30%

<30%

Green Letters Single Face

9.1W

9.0W

.09A

.04A

>.86

>.85

<27%

<27%

Green Letters Single Face with Remote 11.2W

10.5W

.10A

.05A

>.90

>.88

<25%

<26%

Standby Mode (Fully Charged Battery) Sealed Nickel Cadmium Battery

Input Power consumption is reduced by

approximately 1.5 Watts in the standby operating mode

Faceplate
Finishes
Blank
=Brushed

Aluminum Face
with Black Trim

W=White
B=Black
BZ=Bronze

Factory
Options
SD
= Self-Diagnostics

Family
TPX
=Thin Profile

Exit

Series
7
=Self-Powered

Face Options
1
=Single

Battery
70
=Nickel Cadmium Battery

Factory
Options
00
=No Options
20=Flasher
30=Flasher/Buzzer
90=DC Fire Alarm

Interface

Letter Colors
R
=Red
G=Green

Accessories (Order Separately)
TPX71VS=Polycarbonate Vandal

Shield

0590A639SP=Tamper Resistant

Screwdriver Bit

13 5/8" (346mm)

10 3/4" (273mm)

3/4"

(19mm)

2 1/4"

(57mm)

8 1/4"

(210mm)

3/4"

(19mm)

2 1/4"

(57mm)

4 7/8"

(124mm)

D E S C R I P T I O N

The TPX Thin Profile Exit Series
combines the strength of die cast
aluminum, the profile of recessed
design and the superior aesthetics
of Sure-Lites LED technology to
create an exit with optimum
versatility and aesthetics. The TPX
Series faceplate assembly is only
3/4" thick, yielding a sign with
minimal off-wall protrusion without
requiring the large wall opening of a
fully recessed exit.

The TPX Series also includes
a Remote Powered Exit which can
be powered from a TPX Series AC
Only or Self-Powered Exit.

TPX SERIES

D i e C a s t

S e l f - P o w e r e d

T h i n P r o f i l e

E X I T L I G H T I N G

TPX
