Thermal cover
plate

1. If applicable, replace ceiling tile with fixture secured back into ceiling. Remove adjacent tile from ceiling to facilitate wiring.
2. Loosen #10-32 x3/8" Pan head screws and remove electrical cover plate and knock out appropriate hole.
3. Using conduit fitting and nut, secure conduit to cover plate.
4. Attach appropriate wires and ensure all connections are properly matched. If ordered, remove thermal cover plate and wire
thermal protector.
5. Replace cover plates and secure with #10-32 x3/8" Pan head screws.

Warning

: Before starting any work ensure

that all sources of power are turned off. All

work must meet local/national codes and be

performed by a certified electrician. Do not

mount fixtures vertically.

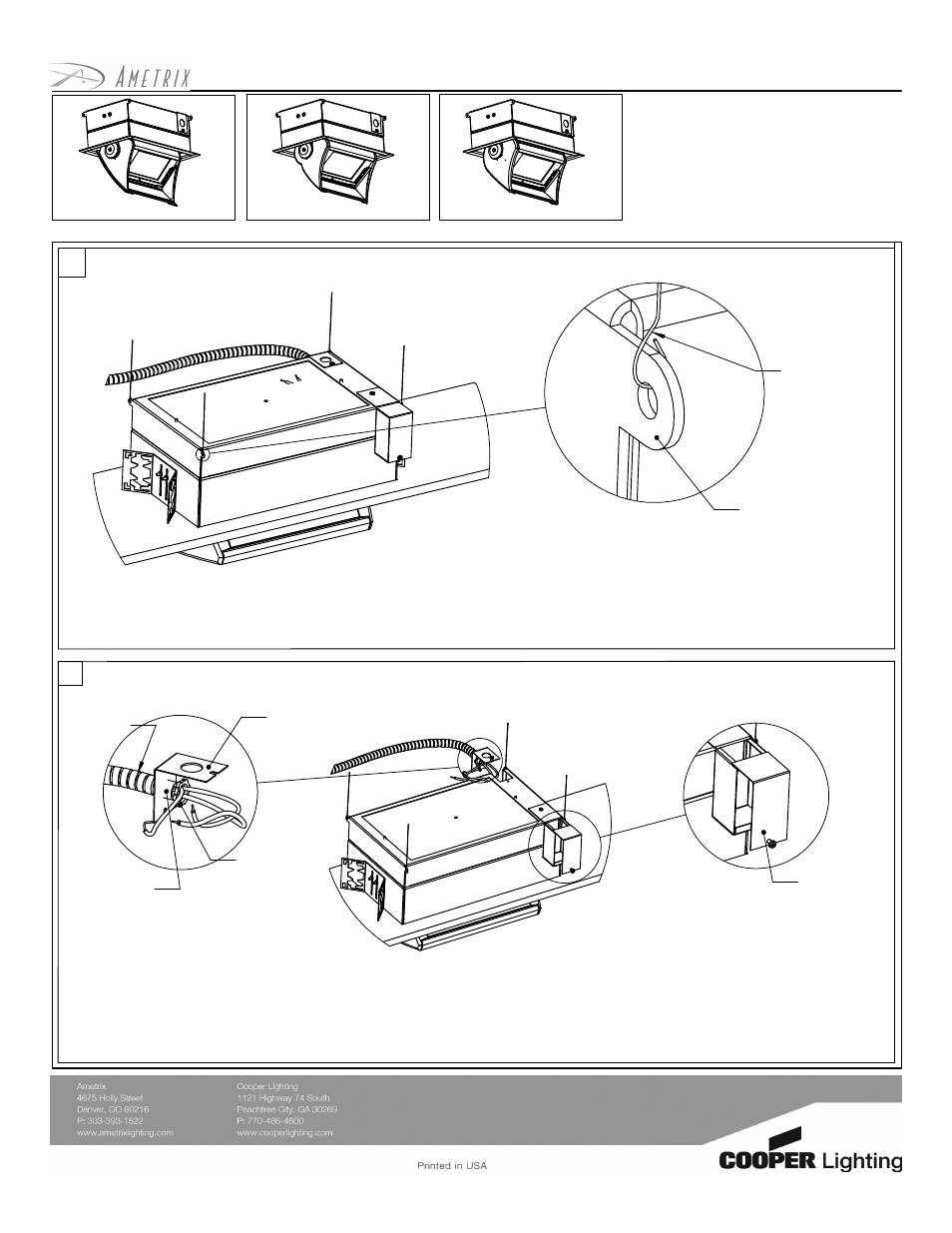

Installation Instructions

Vault w/ visor

C-Scroll w/ visor

Roundel w/ visor

These installation instructions are valid with the above Ametrix styles.

4.

5.

Sheet 3 of 5

Large, INDOOR

SRR

(Semi-Recessed, Remote ballast)

Visor and Non-Visor

ADY071461 REV A(ECN070344)

Wiring the fixture

(both ceiling grid and drywall)

Semi-recessed fixtures shown without thermal protectors

Electrical
cover plate

Conduit nut
(by others)

Conduit fitting
(by others)

Conduit
(by others)

Safety wire
(by others)

Fixture housing

Securing the fixtures with safety wire

(both ceiling grid and drywall)

1. After securing fixture housing to ceiling structure using provided brackets, reinforce fixture using safety wire(by others).
2. Using all four tabs located on corners of fixture housing, tie off fixture to structure using safety wire(by others).
