Things You Should Know
•
Under certain conditions (cold weather, high humidity, etc.)
condensation will form on the inside surfaces of your tent. Condensation is
caused by water vapor from your breath, perspiration, or any wet clothing
inside your tent. It is NOT LEAKAGE through the tent fabric. It can be
minimized by removing wet clothing from your tent and by providing good
ventilation through the tent.
•
Never store tent, even for a short period of time, without drying it
thoroughly and brushing off caked dirt. Do not pack stakes or poles inside
your tent. Use a separate storage bag.
•
STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.
NEVER PULL ON THE TENT FABRIC OR TENT STAKE LOOP TO
REMOVE STAKE.
•
TENT POLES SHOULD NOT BE LEFT TELESCOPED
TOGETHER DURING STORAGE.
•
Do not leave your tent set-up for weeks at a time, be aware that
exposure to the ultraviolet rays of the sun can seriously damage material
and/or cause it to become discolored.
WARNING: KEEP ALL FLAME AND HEAT SOURCES
AWAY FROM THIS TENT FABRIC. This tent meets the
flammability requirements of CPAI-84. The fabric may burn
if left in continuous contact with any flame source. The
application of any foreign substance to the tent fabric may
render the flame-resistant properties ineffective.
3 Raise Tent
– Assemble all shock-corded brace poles.
Poles should be initially adjusted to the
inner most hole “A”. (illus. 7)
– Insert square end of Center (longer) brace
poles into curved roof poles and raise tent
upright. (illus. 5, 6, 7)
– Brace poles should attach to squeeze
pins at bottom of tent. (illus 6, 9)
– Repeat for remaing center brace poles.
– Insert side (shorter) brace poles into end
roof assemblies. MAKE SURE when
attaching brace poles to curved poles that
the bottom of the brace pole naturally
points the tent. (illus. 5, 9)
– Brace poles should attach to squeeze pins
at bottom of tent. (illus. 6)
– Adjust poles to accomodate for terrain.
– Attach Frame Clips. (illus. 8)

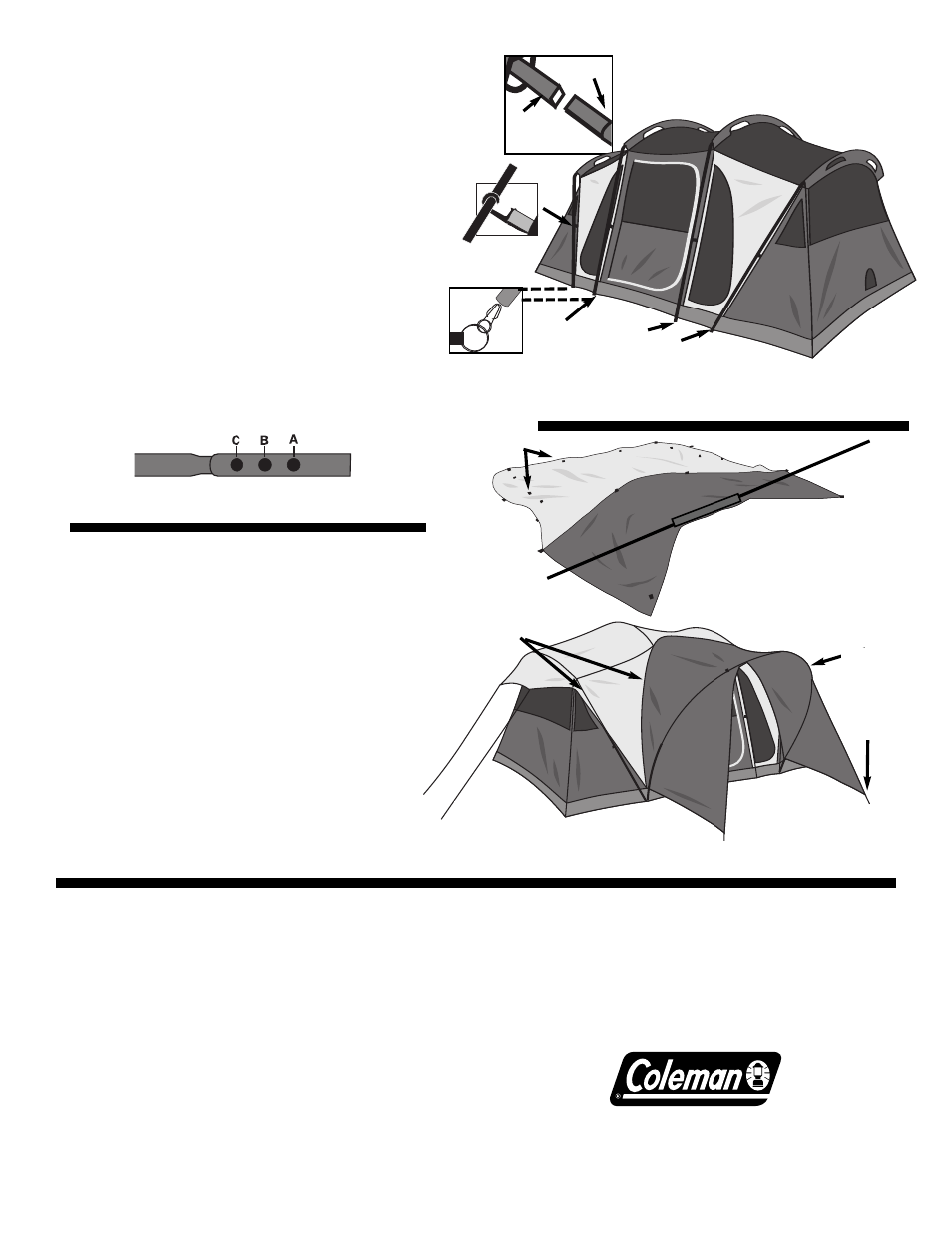

illus. 9
Shown with both center brace poles in position and curved
poles through center pole sleeves.
Center brace poles
Side brace poles
4
illus. 11 Tent shown completely set-up. Note the different
angles of the end brace poles.
Brace pole
Curved
poles in
pole sleeve
Rainfly hooks to
brace poles
illus. 7 Poles should be initially
adjusted to the inner most hole “A”.
illus. 6
Insert squeeze pin
into pole
Attach Rainfly
– Layout rainfly underside up. Assemble and
insert long Rainfly pole into sleeve over door.
– Drape rainfly over the tent, pole side down.
The rainfly pole goes in front. Attach hooks
on rainfly into the brace poles. (illus. 11)
– Insert one end onto the pin on the
stake loop. Go to opposite end of pole
and gradually apply pressure to form
an arch until you are able to insert the
pin into the end.
– Connect rainfly to tent poles with hook and
loop connectors.
– Stake out rainfly front. (illus. 11)
– Attach and stake out side guylines at the
ends of the rainfly.
Rainfly Pole
Stake out
rainly
Stake out
guylines
illus. 5 When attaching the brace poles to the
curved poles make sure that the brace poles
naturally point straight down.
illus. 10 Underside of Rainfly
showing rainfly pole through pole
sleeve and hook & loop connectors.
hook and loop
connectors.
