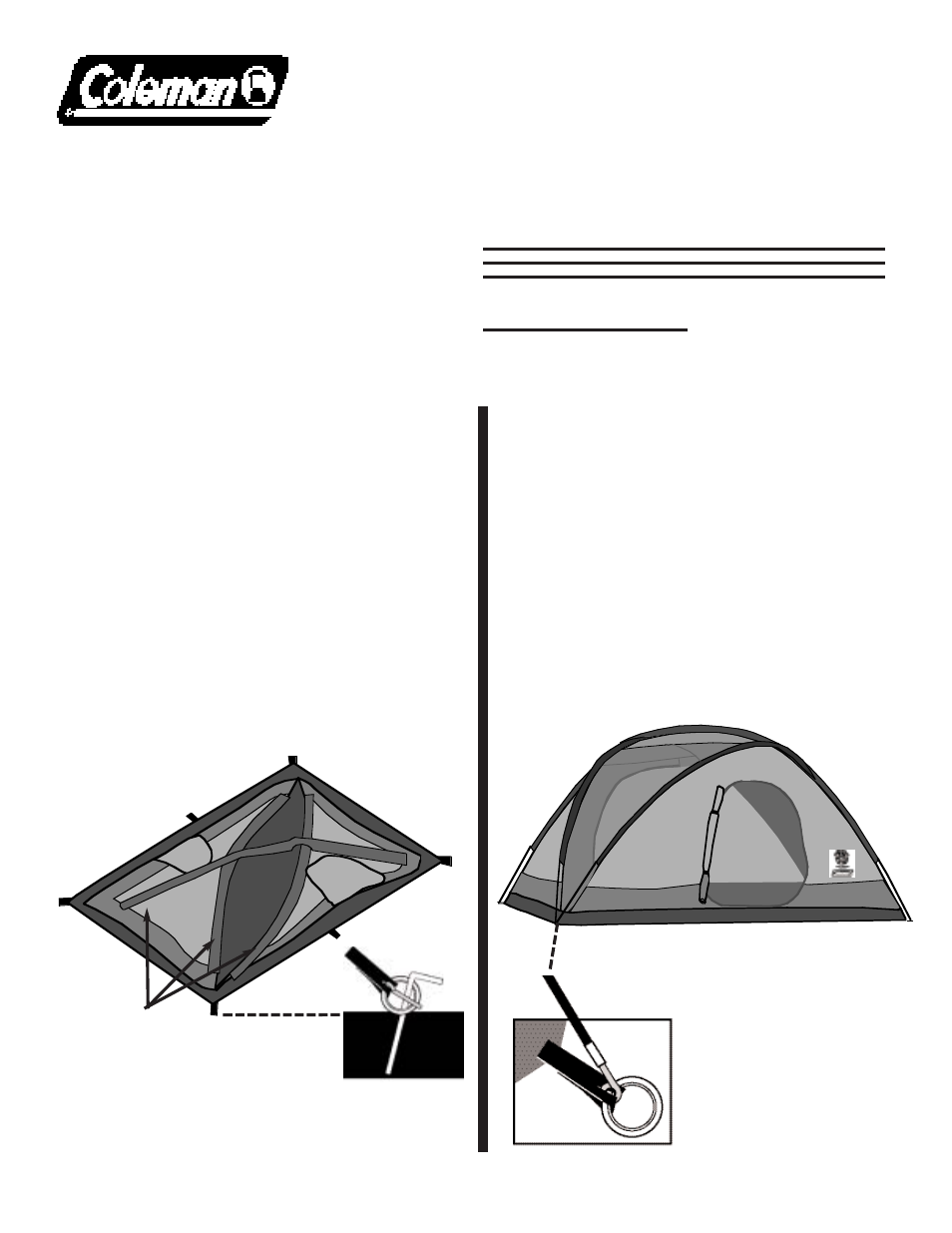

Connect Frame to Tent

– Insert one end of main tent pole end

onto pin of pin & ring system, at tent
corner. (illus. 4)

– Go to opposite end of pole and

gradually apply pressure to the pole
forming an arch until you are able to
insert the pin into the pole.

– Repeat for second and third poles.

TIOGA

12’x 8’

1

Layout & Positioning
of Tent, Pole Assembly

– Layout and position tent with doors

facing desired direction. (illus. 1)

– Unzip doors.
– Stake down tent corners only, using

the rings at the end of the stake loops.
Keep the floor taut. (illus. 2)

– Assemble Frame Poles by

interlocking shock-corded poles.
This will make three long poles.

– Insert the poles diagonally into three

Pole Sleeves. (illus. 1)

2

When You Are Ready
To Set Up Your Tent

– Select a level campsite clear of rocks,

branches and other hard or sharp objects.

– Do not set up your tent under trees.
– For best results in windy conditions,

do not position the door of tent into
the wind.

(1) Rainfly

Pole

Rainfly Part No. 9273C123

(3) Main

Tent Poles

POLE ASSEMBLY PARTS

Insert poles
through
three pole
sleeves

Instructions apply to Part Number 9273C128

illus. 1

Part No. 9273C121

Part No. 9273C122

Tent frame

set-up

illus. 3

illus. 2

Tent stake

through ring

illus. 4

Insert pole end onto
pin & ring
