Page 26
26
5
Connecting Cables
This section provides information about connecting cables to the Cisco 10008 router.
Connecting Alarm Indicators
The Cisco 10008 router provides relay contacts for optional (customer-supplied) audible or visual alarm indicators. Relay
contacts are provided for three levels of severity:
•
Minor—An informational alarm that does not affect system operation.
•
Major—An alarm condition that affects system operation and should be investigated as soon as possible.
•
Critical—An alarm condition that affects system operation and requires immediate attention.

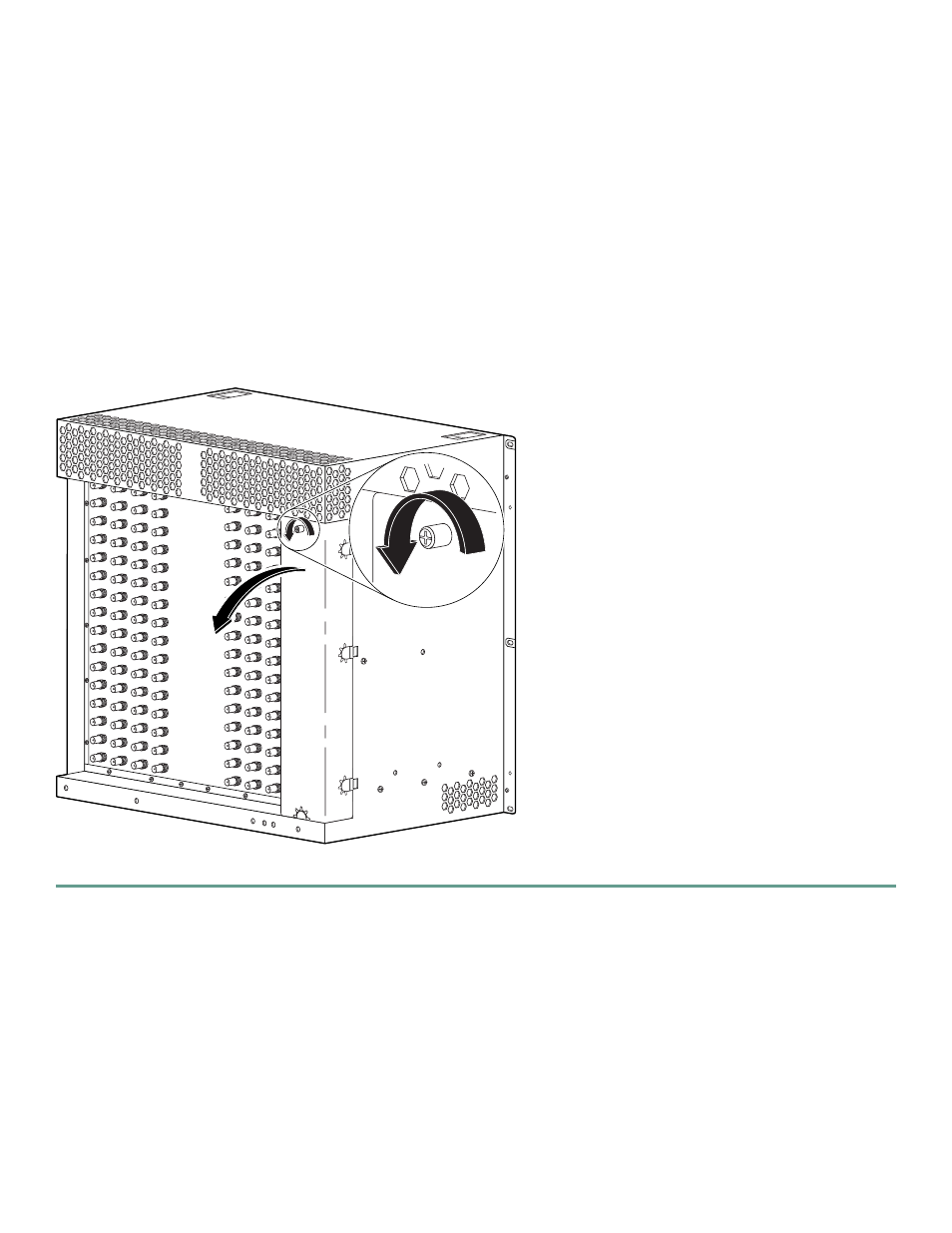

Figure 18
Loosening Captive Screws on the Safety Cover
Use the following procedure to connect an alarm indicator to the system:
Step 1
Loosen the captive screw on the rear safety cover and tilt the cover back.
30022
