Auxiliary Modem Connection
This asynchronous EIA/TIA-232 serial port is used to connect a modem to the PRE for remote administrative access. Use the
following procedure to connect the Cisco 10008 router to a modem.

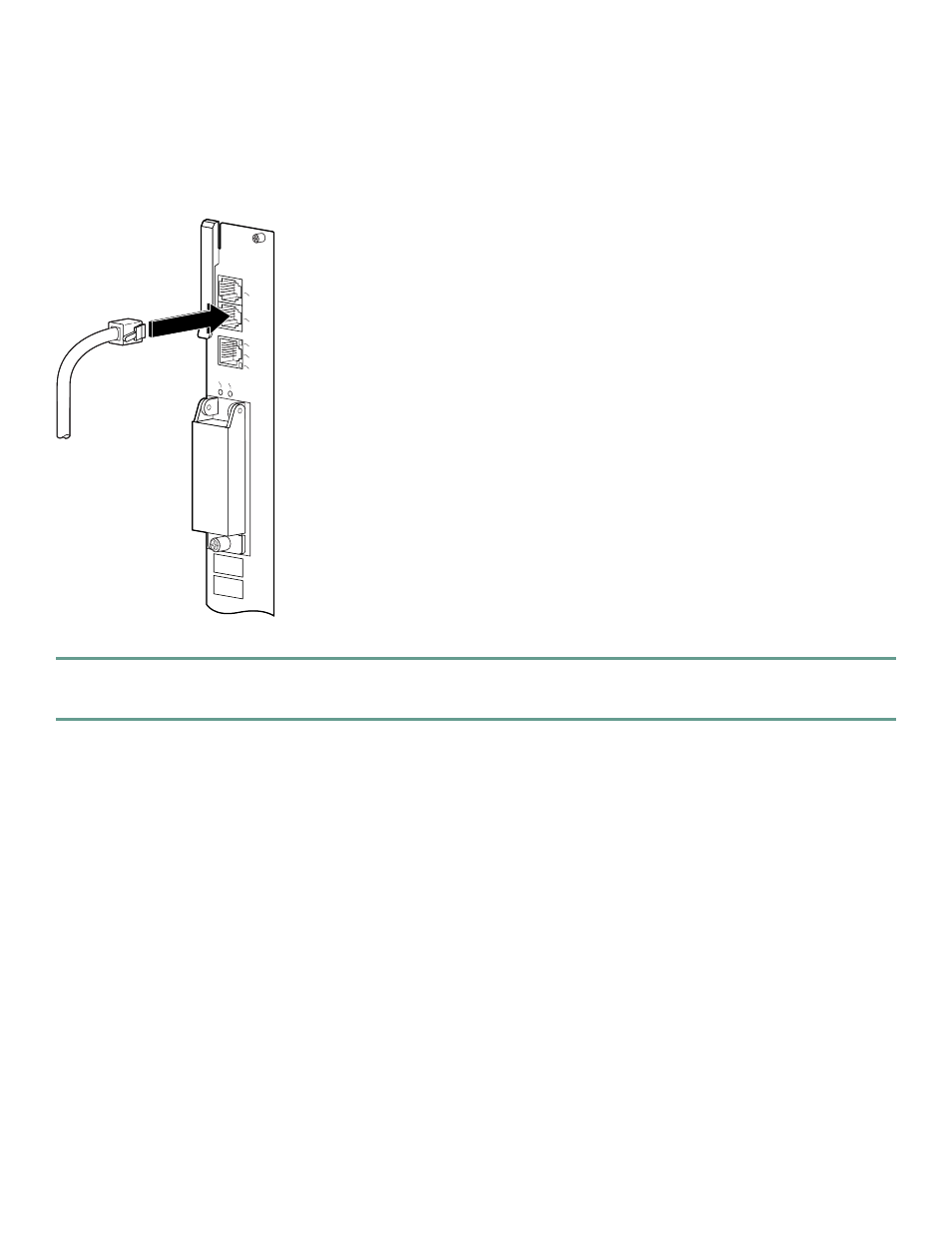

Figure 27
Connecting the Modem Cable to the Auxiliary Port
Step 1
Connect one end of the modem cable to the RJ-45 port on the primary PRE, labeled AUX.
Step 2
Run the cable up and through the cable-management bracket and connect the other end of the cable to your modem.
Installing Network Cables to the Line Cards
See the
for instructions and information on installing line
cards and the Carrier, optical devices, cables, and specifications for line cards. Install all optical devices and attach all network
cables to the line cards before you power on the system.
CONSO
LE
ETHERNET
LINK
AU
X
SLO
T
0
SLO
T 1
CISCO
10000
LINK
33357
