Cisco 10008 User Manual
Page 21
21

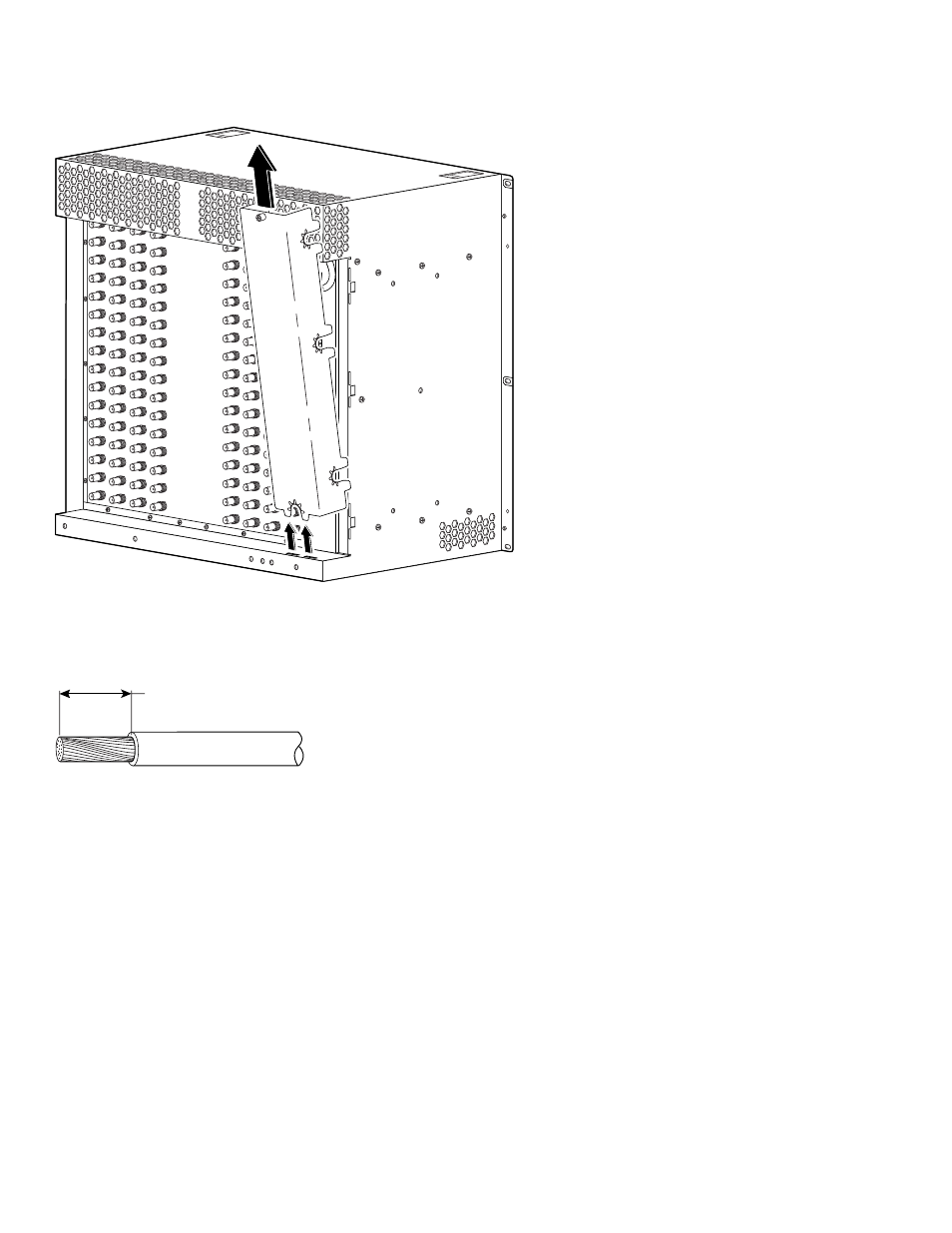

Figure 12
Removing the Safety Cover
Step 2
Loosen the captive screw on the rear safety cover and tilt the cover back to lift it up and out from the chassis.
Figure 13
Stripping Insulation
Step 3
Using a wire-stripping tool, strip not more than 0.4 inches (10 mm) of insulation off the ends of the DC power leads.
30023
14747
10 mm max
