Attaching the Grounding Lug
Use the procedure in this section to attach the grounding lug:
Before attaching the grounding lug, make sure:
• The ejector levers are in the closed position.
• The chassis mounting screws are tight.
• The Performance Routing Engine (PRE) and line card captive screws are tight.
• The power switches on the DC or AC Power Entry Module (PEM) are set to the Off position.

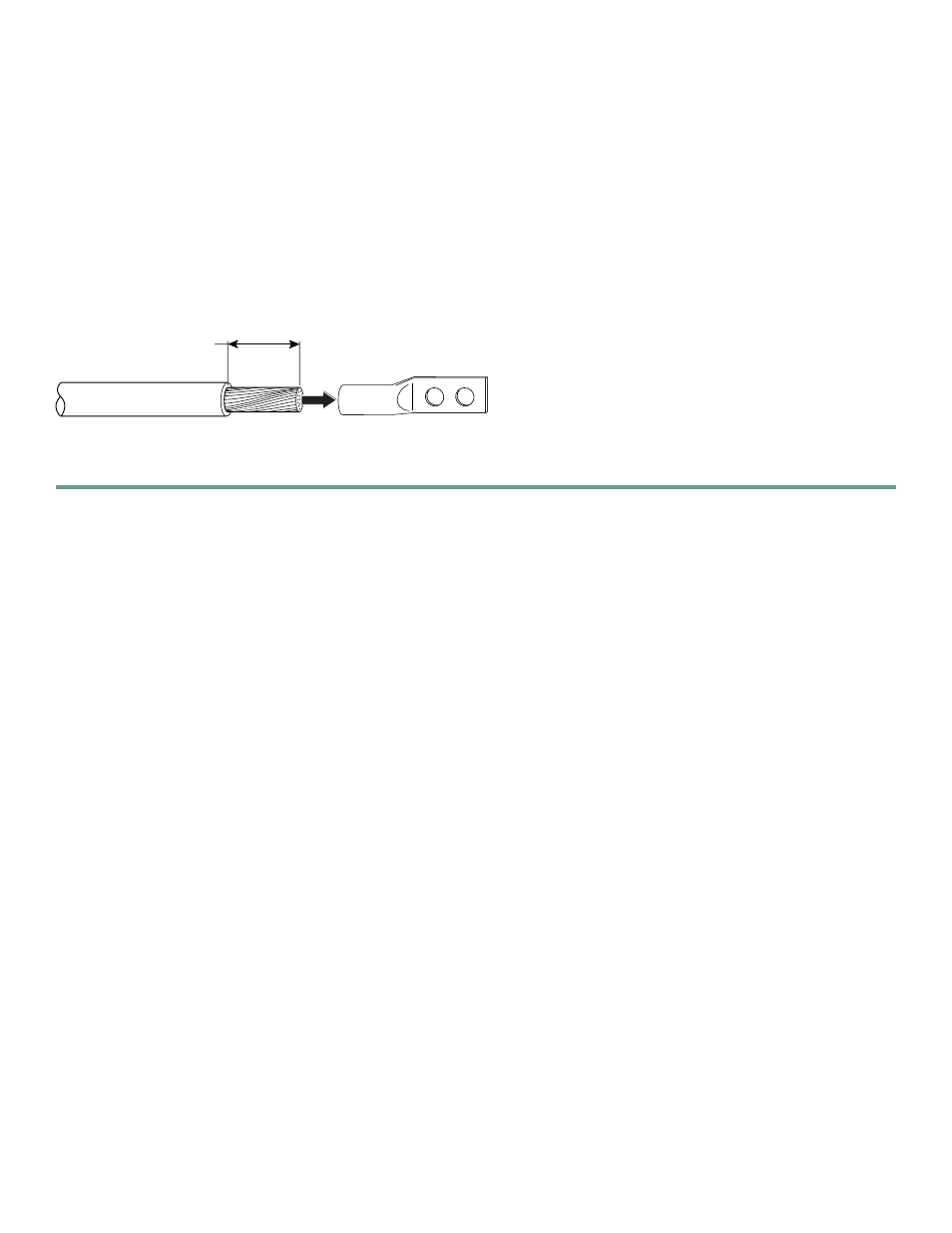

Figure 9 Attaching Grounding Wire to Grounding Lug
Step 1 Using a wire-stripping tool, strip about 3/4 inch (2 cm) of the covering from each end of the grounding wire.
Step 2 Insert each stripped end of the grounding wire into the open end of a grounding lug and crimp the grounding lug
securely to the wire using the crimping tool.
0.75 in.
(2 cm)
Grounding lug Wire
30020
