Rack-Mounting the Router in a 19-Inch 2-Post Rack
Use the following procedure to rack-mount the Cisco 10008 chassis in a 19-inch 2-post rack:

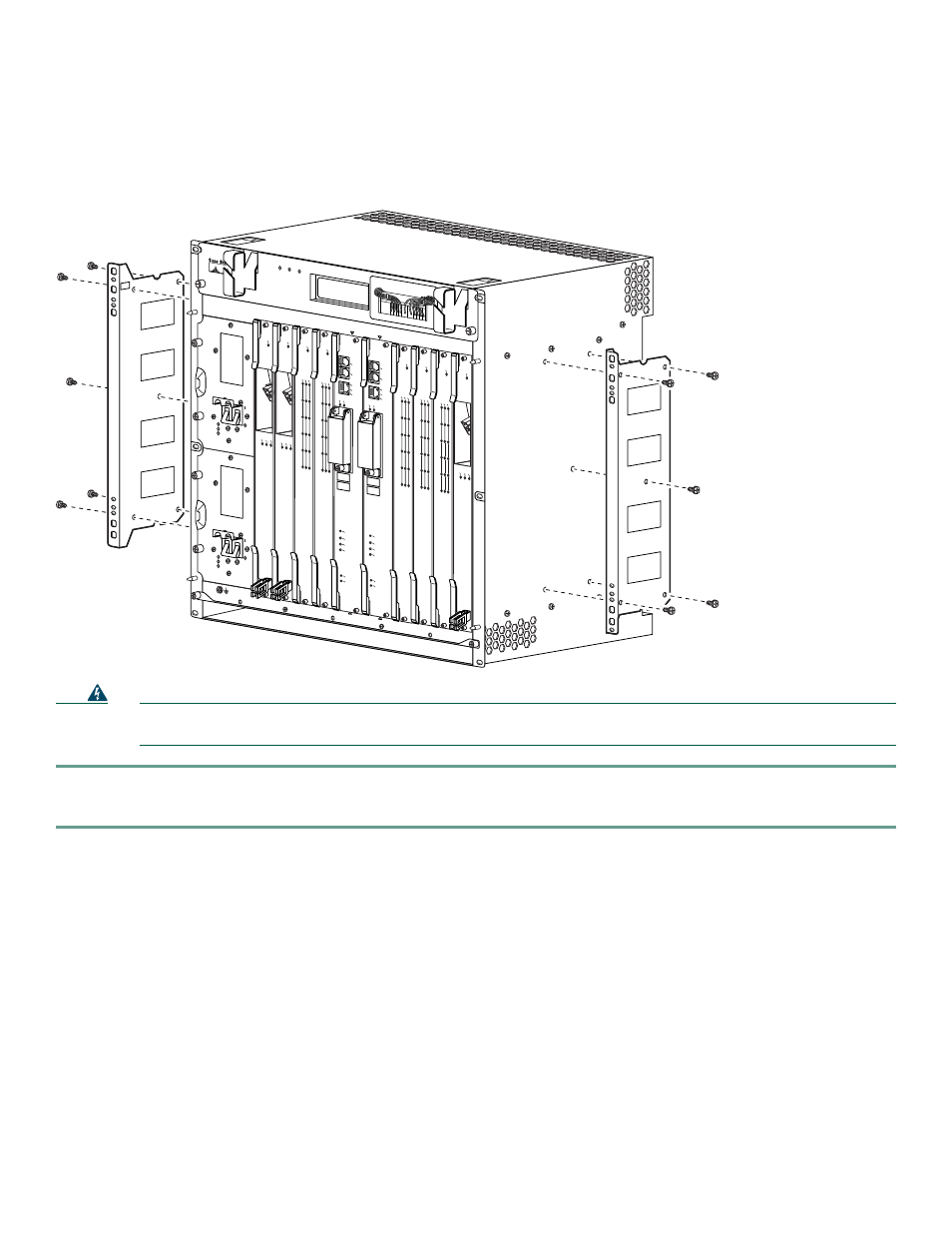

Figure 3
Attaching the Mounting Brackets to the Chassis
Warning
At least three people are required to mount the chassis in the equipment rack: two people are needed to hold the
chassis in place while a third person tightens the mounting screws. Statement 234
Step 1
Attach the two mounting brackets to the chassis so the flanges are positioned at the center of the chassis.
Step 2
Insert the ten mounting screws through the mounting bracket into the router, and tighten the screws.
