Frame assembly - figure 1 and parts list – Cub Cadet Lawn Mower User Manual
Page 3
3

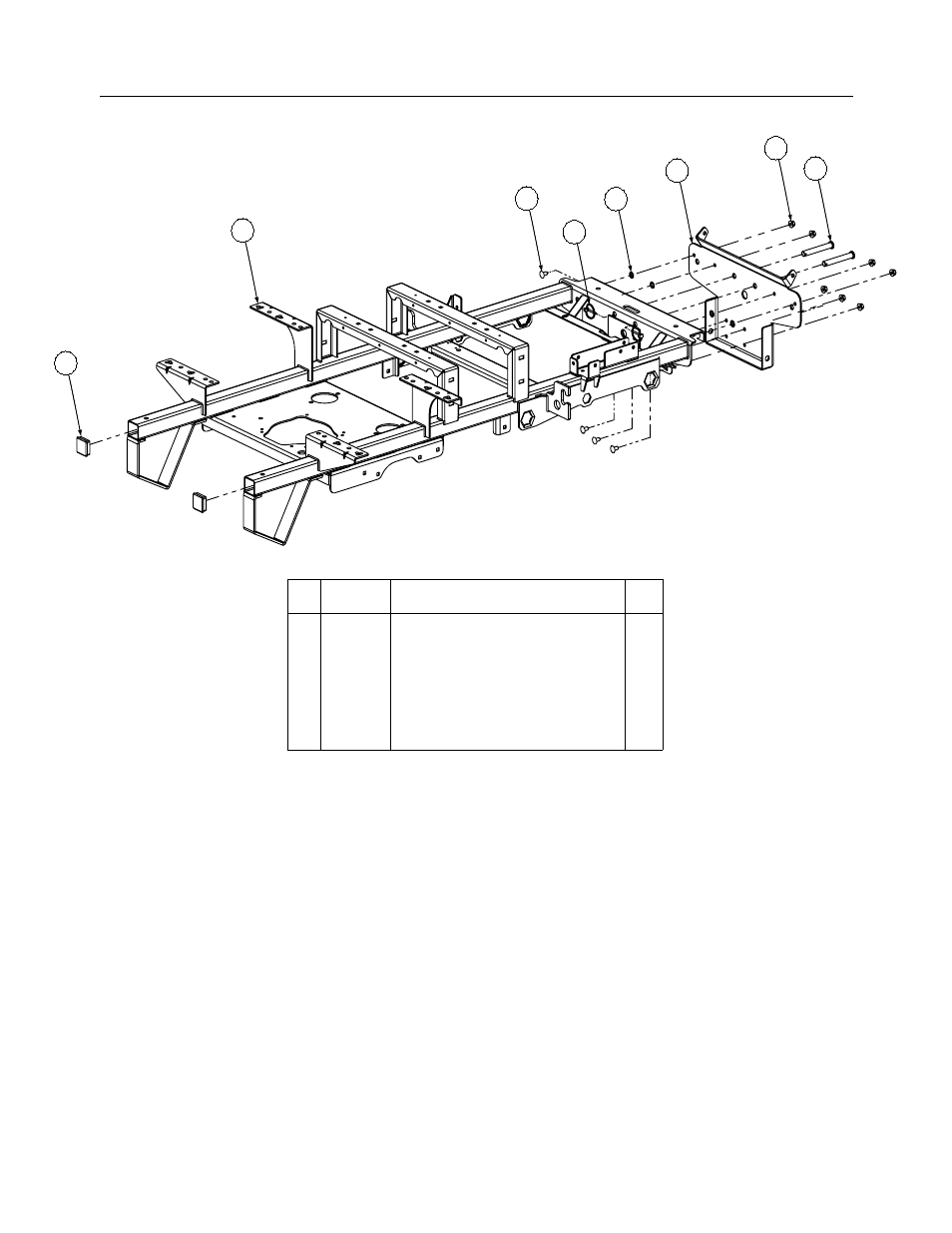

Frame Assembly- Figure 1 and Parts List
Ref.
No. Part No.
Description
Qty.
1
00022560 Hex Nut, 3/8-16 Flange Lock
7
2
01000372 Carriage Bolt, 3/8-16 x .75 Long
7
3
01001713 Bracket Assembly, Frame, Front
1
4
01003282 Clevis Pin, .625 Dia x 4.375 Long
2
5
01003993 Linch Pin, 3/16 Dia.
2
6
01005160 Plug, Square Tube
2
7
01008225 Push Retainer, 3/8
4
8
02001171
Frame Assembly
1
4
1
3
5
2
8
6
7
GD: 02001195-7/15/05
