FUSES/TOTALLY INTEGRATED POWER MODULE
(TIPM)
A Totally Integrated Power Module is located in the
engine compartment near the air cleaner assembly. This
center contains cartridge fuses and mini fuses. A label
that identifies each component may be printed on the

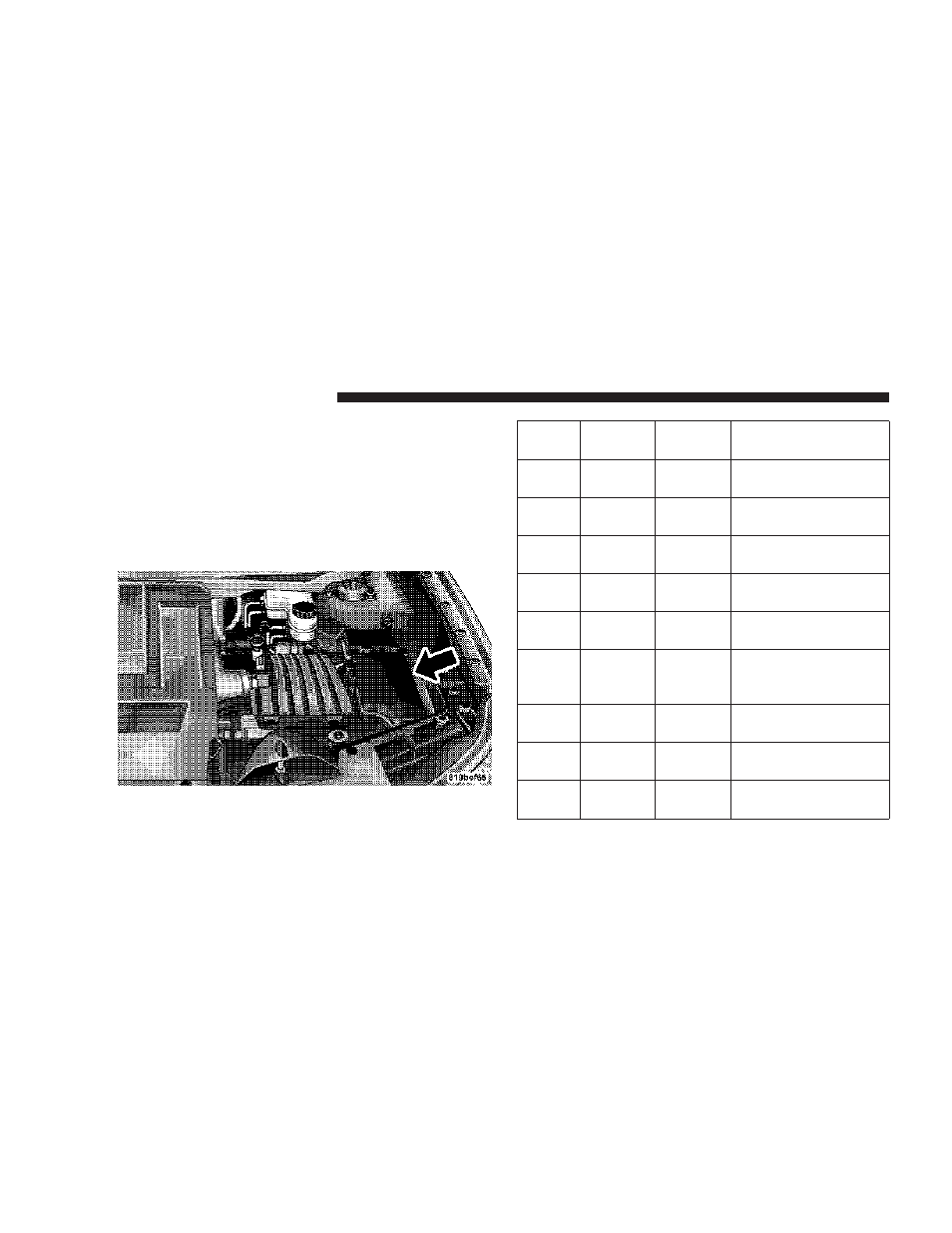

inside of the cover. Refer to the graphic below for
FUSES/TIPM location.
Cavity Cartridge
Fuse
Mini
Fuse
Description
1 40 Amp
Green Power Top Feed
2 20 Amp
Yellow AWD — If Appli-
cable, ECU Feed
3 10 Amp
Red CHMSL Brake Switch
Feed
4 10 Amp
Red Ignition Switch Feed
5 20 Amp
Yellow Trailer Tow
6 10 Amp
Red IOD Sw/Pwr Mir/
Ocm Steering Cntrl
Sdar/Hfm
7 30 Amp
Green IOD Sense1
8 30 Amp
Green IOD Sense2
9 40 Amp
Green Power Seats
Fuse and Relay Center (TIPM)
