Kenai, 10’x8, Connect frame to tent

background image

Connect Frame to Tent

– Insert one end of the main tent pole

onto pin of pin & ring system, at the
tent corner. (illus. 3)

– Go to opposite end of pole and

gradually apply pressure to the pole
forming an arch until you are able to
insert the pin into the pole.

– Repeat for second pole. (illus. 4)

1

Layout & Positioning
of Tent, Pole Assembly

– Layout and position tent with door

facing desired direction. (illus. 1)

– Unzip door.
– Stake down tent corners only, using

the rings at the end of the stake loops.
Keep the floor taut. (illus. 2)

– Assemble frame poles by

interlocking shock-corded poles.
This will make two long poles.

– Insert the poles diagonally into pole

sleeves. The center of the poles
should cross forming an “X” in the
middle of tent. (illus. 1)

2

Assembled
poles
inserted
through
pole
sleeves

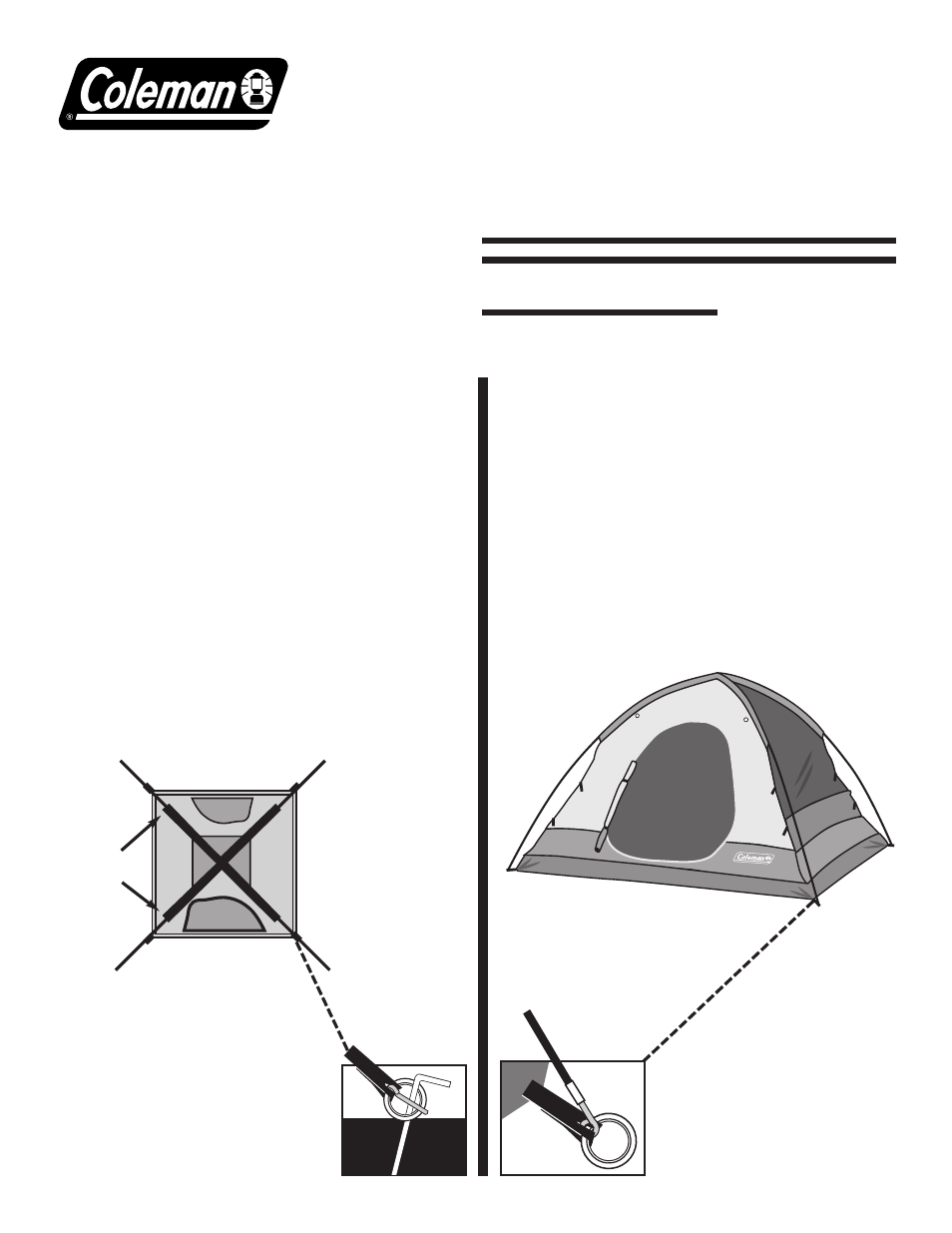

illus. 1

illus. 4

Tent frame set-up

illus. 2

Tent stake through ring

illus. 3

Insert pole end onto
pin & ring

KENAI

10’x8’

When You Are Ready
To Set Up Your Tent

– Select a level campsite clear of

rocks, branches and other hard
or sharp objects.

– Do not set up your tent under trees.
– For best results in windy conditions,

do not position the door of tent
into the wind.

Rainfly

Pole

Rainfly Part No. 9234-3321

Main Tent

Poles

POLE ASSEMBLY PARTS

Instructions apply to Part Number 9234-908

Part No. 9234-3301

Part No. 9234-3311
