Char-Broil 463230511 - Manual (Page 19)

5
Locking Caster
Fixed Caster
Left Side Panel
Right Side Panel
19
Caster Pin
A
•
•

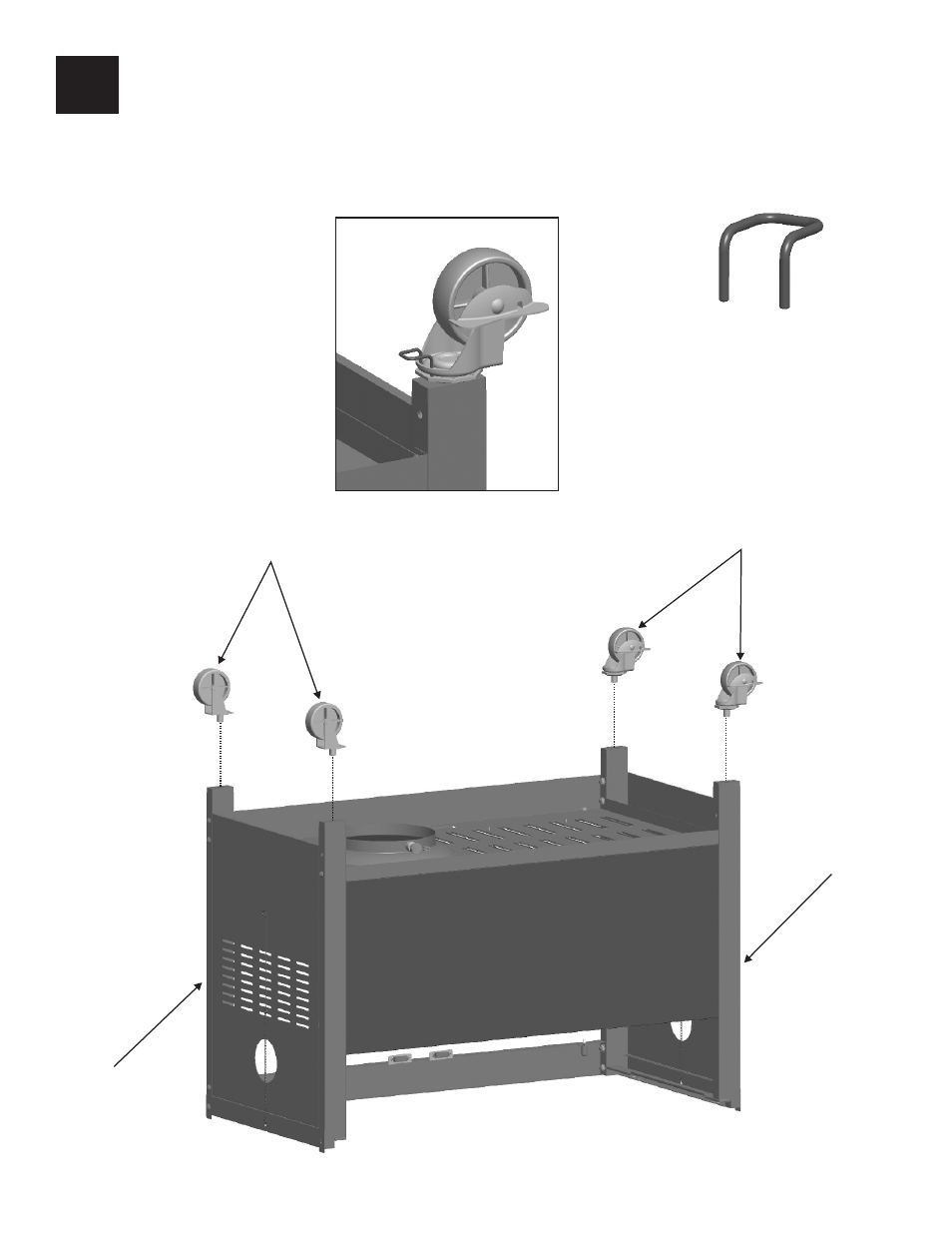

Insert Caster Pin into the caster mounting plate to lock it in place, Shown A. Spin the caster clockwise into the threads on the legs
until secure. Remove the Caster Pin and repeat for remaining casters. Make sure the two locking casters are secured to the right
legs and the non-locking casters are secured to the left legs. After all 4 casters are secure remove the Caster Pin and save for
future maintenance.
Turn assembly upside down.
