FBGP-720 SPECIFICATIONS
FBGP-720
B N/A
DC
THIS DRAWING IS THE SOLE PROPERTY OF JAYPRO SPORTS INC. AND MAY
NOT BE REPRODUCED WITHOUT WRITTEN PERMISSION OR CONSENT
JAYPRO SPORTS, LLC, 976 HARTFORD TURNPIKE, WATERFORD, CT 06385 USA
www.jaypro.com
DESCRIPTION
PART NUMBER DWN BY
A
REV
7/10/2006
DATE SIZE SHEET SCALE
CHKD BY
BTS

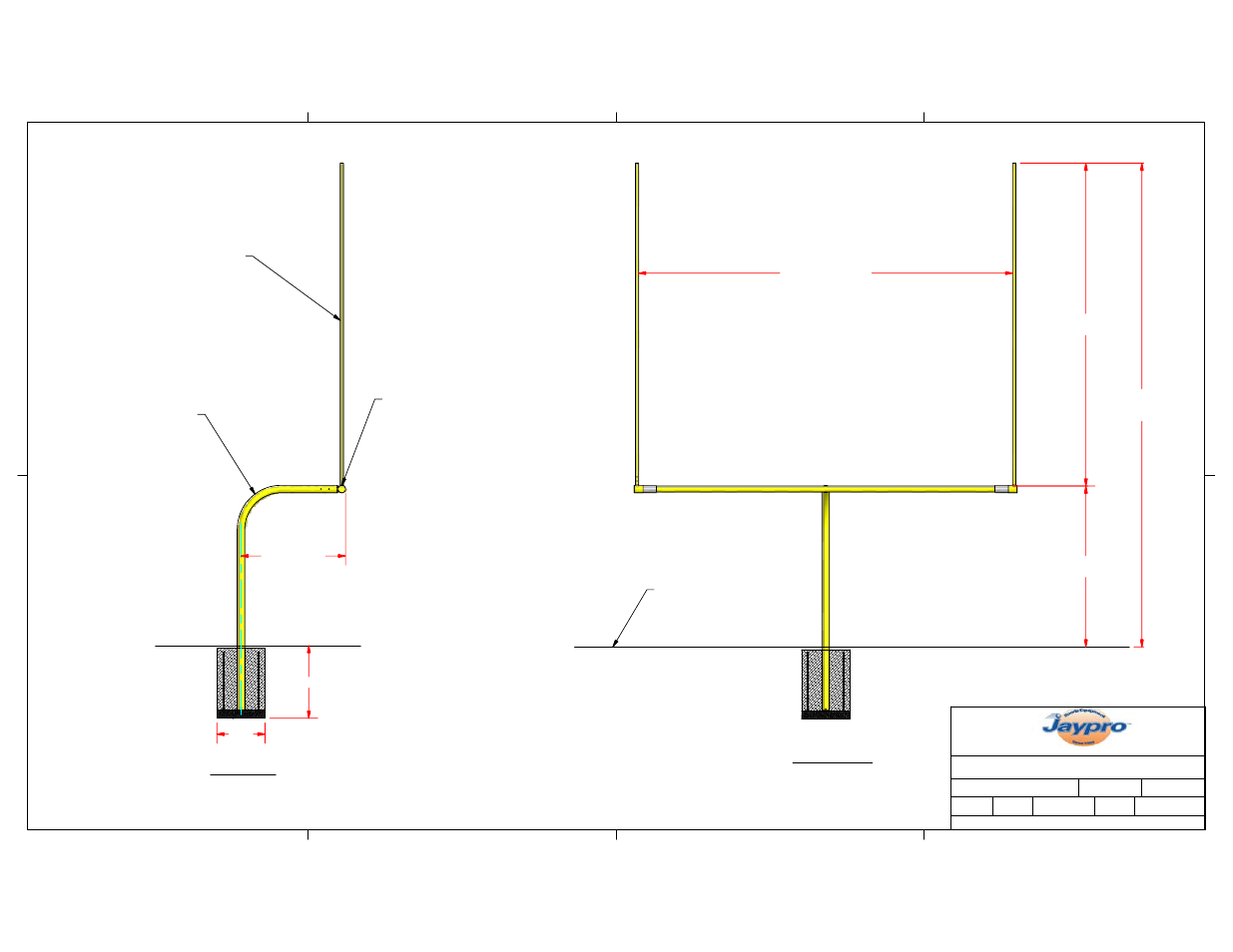

SIDE VIEW
FRONT VIEW
FBGP-720
FOOTBALL GOAL
SPECIFICATIONS
FBGP-720 HIGH SCHOOL WHITE
FBGP-720YW HIGH SCHOOL YELLOW
FBGP-720C COLLEGE WHITE
FBGP-720XCYW COLLEGE YELLOW
T:\Aftermarket\Football\Drawings\FGBP-720\SPECIFICATIONS\PAGE ONE.idw
54 in
36 in
78 in OFFSET
GALVANIZED STEEL
GOOSENECK Ø5 9/16 x .258 WALL
Ø4 1/2'' x 23' 4'' High School
Ø4 1/2'' X 18' 6'' College
GALVANIZED STEEL CROSSBAR
PLAYING
SURFACE
REV: A 7/14/2010
23'-4''
INSIDE
HIGH SCHOOL REF
18'-6''
INSIDE
COLLEGE REF
20'
UPRIGHTS
10 '
TO CROSSBAR
30'
OVERALL
HEIGHT
Ø2 3/8'' x 3/8'' wall
ALUMINUM UPRIGHTS
