d. Loosely attach the mounting brackets to each corner of the backboard
e. A lifting system will need to be used to position the backboard. A manual material lift is ideal

(minimum capacity 500 lbs). If another method of hoisting the board is used such as chain
hoist, make sure this device is attached no lower than 15’ from the floor. Additionally, nylon
web straps will be needed to wrap around backboard approximately 4’ apart for balance, then
hooked to lifting device as shown here.

f. Lift the backboard into position and secure to the frame with the u-bolts provided making the

board level and plum.

g. Securely tighten all hardware before removing lifting system.

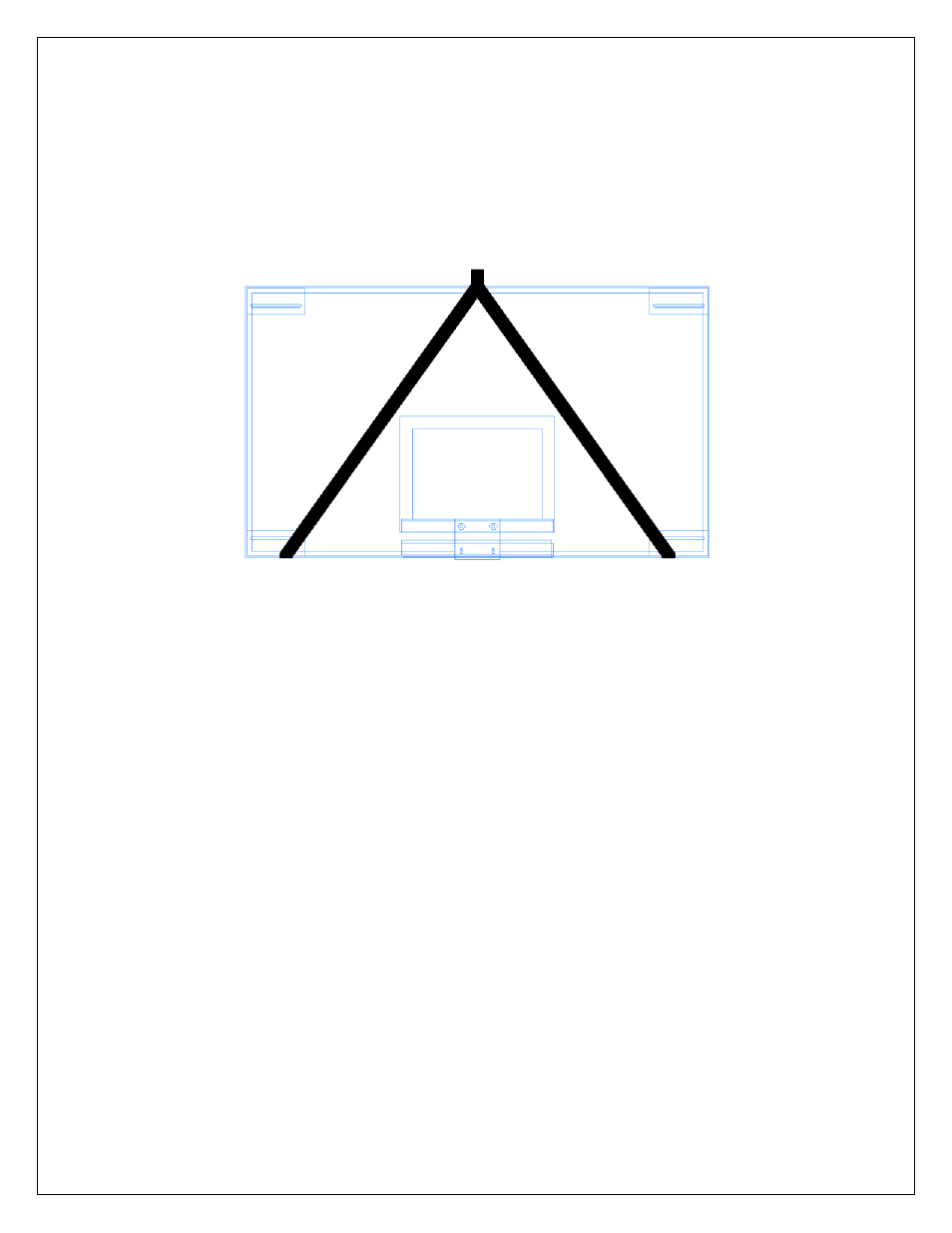

Figure 4: Hoisting Strap Location for Backboard

h. Remove lifting mechanism.
i. Install a safety bolt on each end of the frame. (See Detail A)
j. Attach the goal loosely using the bolts provided and level from side to side while tightening.
k. Check height at the top of the goal – 10’ above the playing surface.
l. Finally, check all fittings and hardware to make sure everything is tight.
m. Attach edge padding and pipe caps.
