4. Unit Assembly

a. Prepare the wood planks for installation by inserting the proper carriage bolts into the counter

bored holes.

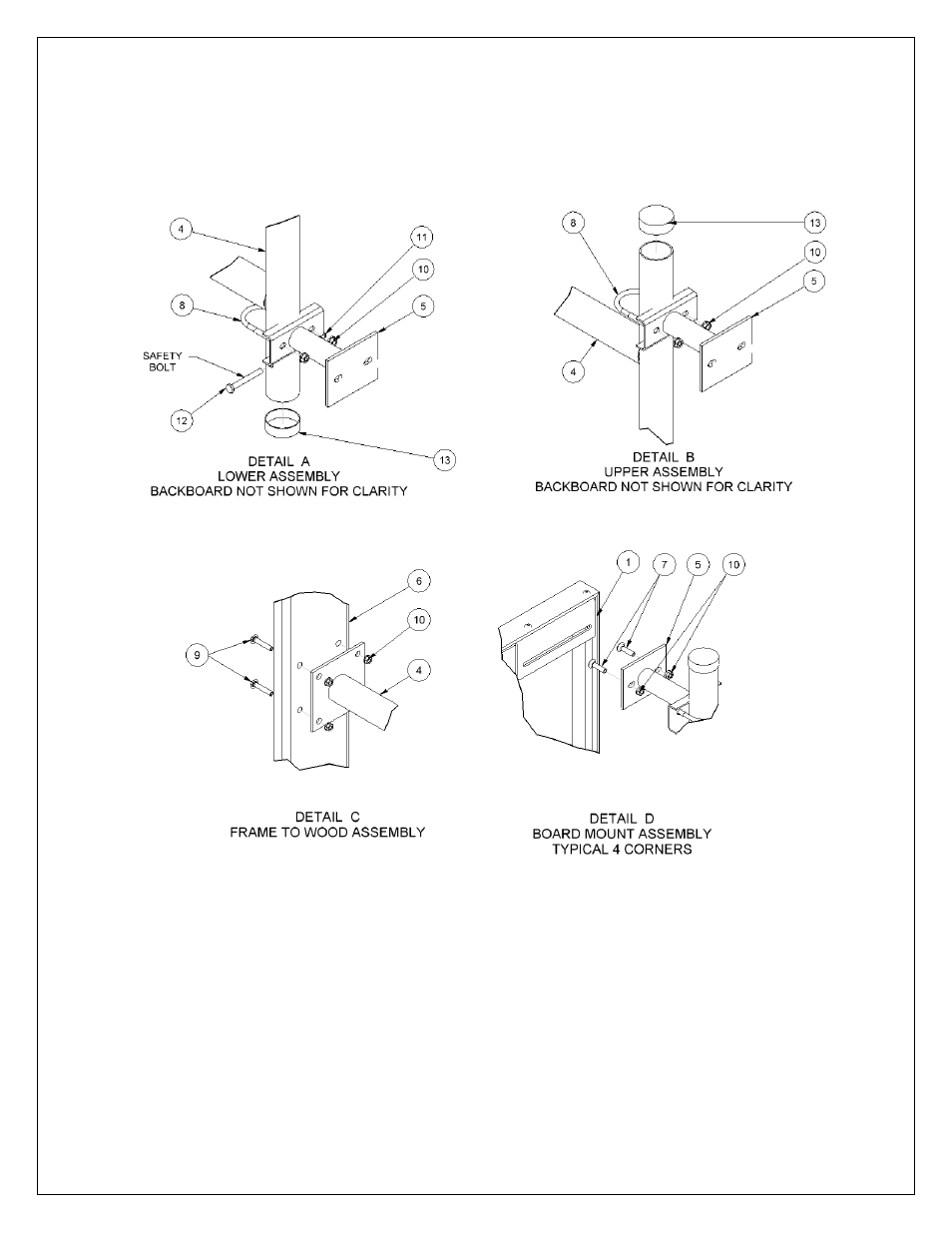

b. Attach each plank loosely to the wall, to allow for leveling. Attach the frames to the wood

planks. NOTE: the vertical member of the frame has a hole located on one end, this hole needs
to be on the floor side and is there to install a safety bolt that prevents the backboard from
sliding off the frame.

c. Level and tighten the planks securely to the wall and cut off excess bolts protruding from the

wall. Maintain center-to-center dimensions and height requirements as accurately as possible to
make the rest of the installation as easy as possible.
