Figure 1 – Jaypro Sports WMSS User Manual

Page 4

4 of 13

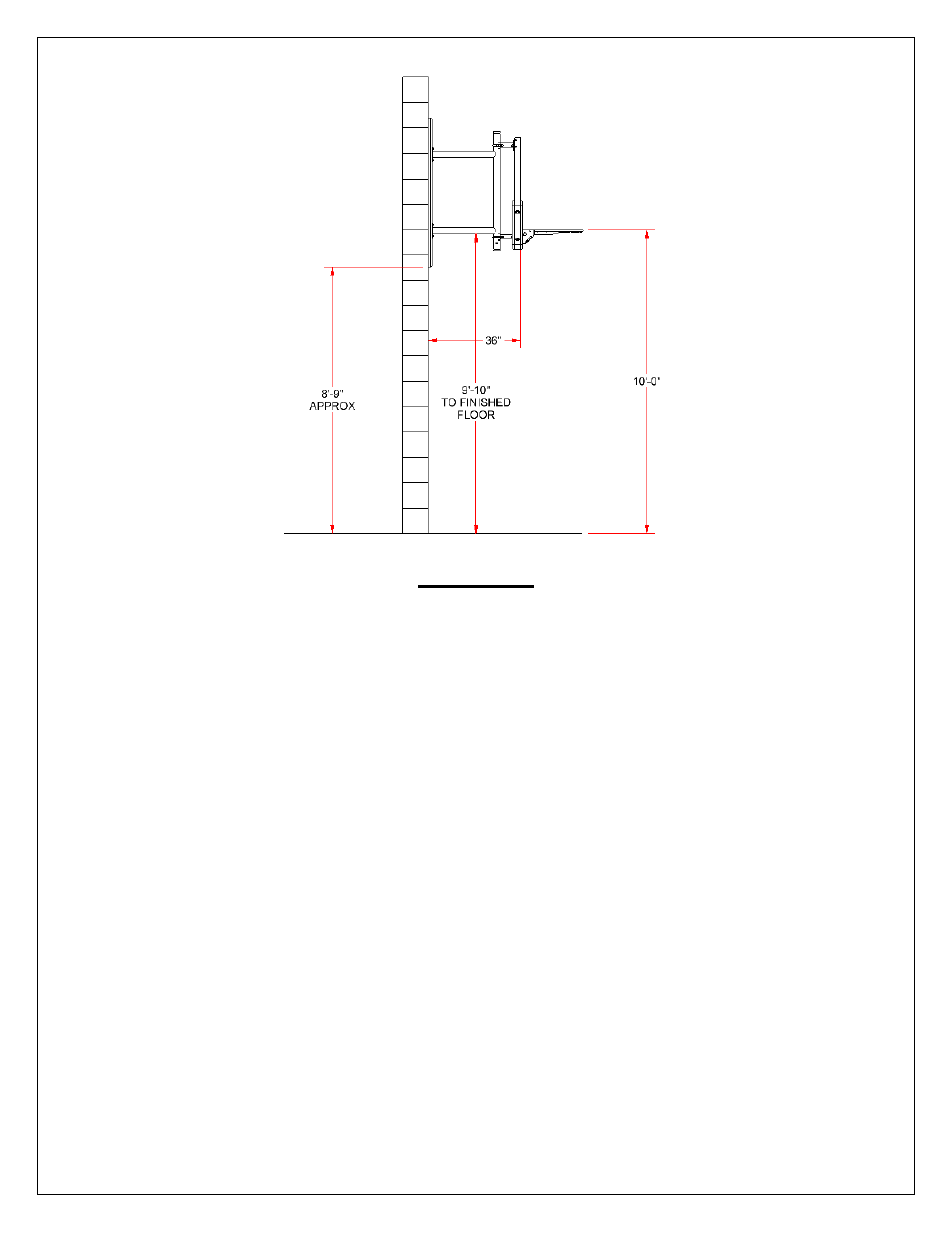

FIGURE 1

3. Drilling of Wood Planks

a. The wood planks for attaching to the wall are predrilled for their specific brackets. Lay these

out on a sawhorse or similar work area. You will need to drill them for anchor bolt locations.

b. It is best to use ½” anchors for the wall; therefore a ¾” hole in the wood plank is desirable to

allow for leveling the plank. Set up a drill with a ¾” wood drill bit.

c. When marking the planks, mark and drill from the front of the plank, the side facing away from

the wall. This will be exposed as a finished product, so mark lightly. You need to drill from this
side in order to prevent splintering when drilling

d. Stagger the anchors from side to side leaving 2” of wood outside each anchor and ultimately

using 4 anchors for the plank. See FIGURE 2

e. It is very important that these holes are drilled as straight as possible through the planks;

otherwise it becomes difficult to level them.
