mAI085-MB Actuator Interface Technical Manual /3
Distributive Intelligence
 CMC INDUSTRIAL ELECTRONICS LTD
2. Description of the Keypad and Indicators
OPEN CLOSE CLEAR SET
CMC I NDUSTRIAL E LECTRONICS
SCAN
SV
OL
PV
A CTUATOR I NTERFACE
IDL
POS
FLT
MOV
OPN
CLS
EMP
1
2
3
4
5
6 7
8
9
11
10
12

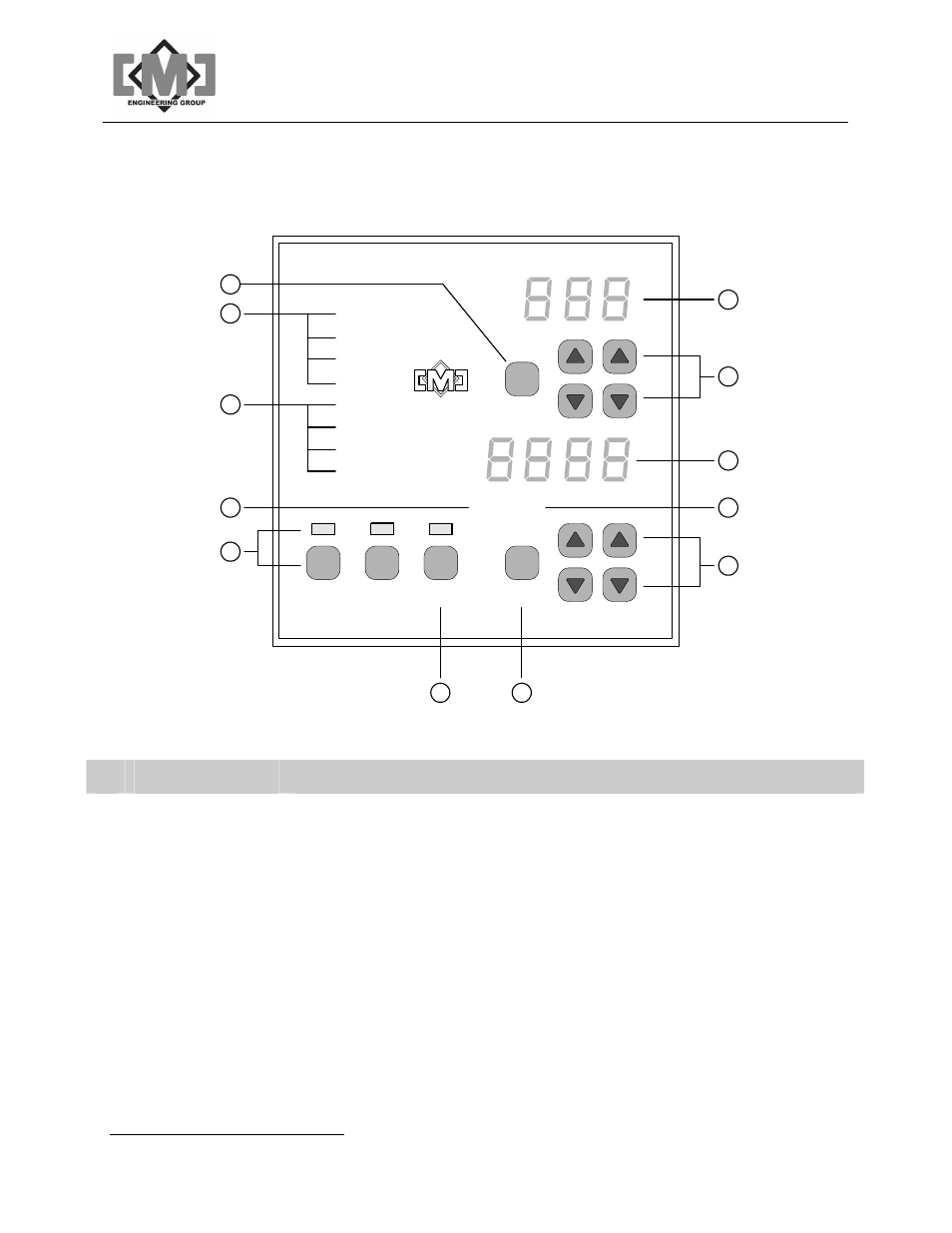

Figure 1 - Keypad and Indicators
ID Label Description of Operation
1 Upper Display Displays the name of the selected actuator.
2 Upper UP / DOWN Selects which actuator to view.
3 Lower Display Displays the process value or setpoint of the selected actuator.
4 Setpoint Value Displaying the actuator setpoint
5 Lower UP /DOWN First press displays the setpoint of the selected actuator and each
subsequent press increases or decreases the setpoint value.
6 Set key Saves the displayed setpoint only when SV is illuminated
